Which PhonoVibe model do I need?

It comes down to channel count. PhonoVibe D is 2-channel, Q is 4, O is 8 and HD is 16. A single-point route or a bump test needs 2; two-plane balancing and most FRF work needs 4; modal and multi-point survey work is where 8 and 16 earn their place. Eco X is a 4-channel unit bundled with a shaker for teaching labs.

Does PhonoVibe work with sensors I already own?

Yes, if they are IEPE / ICP / CCLD types. Every channel supplies 24 V, 4 mA constant current and reads TEDS, so a sensor that identifies itself is recognised automatically. Charge-mode accelerometers need an external converter.

What software comes with it, and is it extra?

The TVIB TSAP201 base module is included free with every PhonoVibe — time waveform and narrowband FFT out of the box. Further TVIB modules such as balancing, sound level or order tracking are added only if you need them.

Is it calibrated, and what warranty does it carry?

Each unit ships with a factory calibration certificate valid for one year. Warranty is 2 years as standard and can be extended to 3.

What computer does it need?

Windows 10 or 11, 32-bit or 64-bit. It is USB-powered and plug-and-play, so no separate power supply or PCI card is involved.

← All products

PhonoVibe Series — Sound & Vibration DAQ

Name: PhonoVibe Series — Sound & Vibration DAQ
Brand: TIERA
Availability: InStock

24-bit USB data acquisition for sound and vibration. Plug-and-play. Made in India.

Buy on store → ↓ Datasheet Book demo

Used in

Industrial maintenance & reliability Automotive NVH and driveline testing Aerospace and defence R&D Academic and research labs Motor and bearing manufacturing QA Predictive maintenance / AI algorithm development

At a glance

•24-bit ADC across the entire series
•IEPE / ICP / CCLD sensor power — 24 V, 4 mA constant current
•Simultaneous sampling on every input
•TEDS sensor recognition
•USB-powered plug-and-play (Windows 10 / 11)
•Static (DC) measurements supported
•Factory calibration certificate (1 year validity)
•2-year standard warranty, extendable to 3
•Bundled with TVIB TSAP 201 software

Models

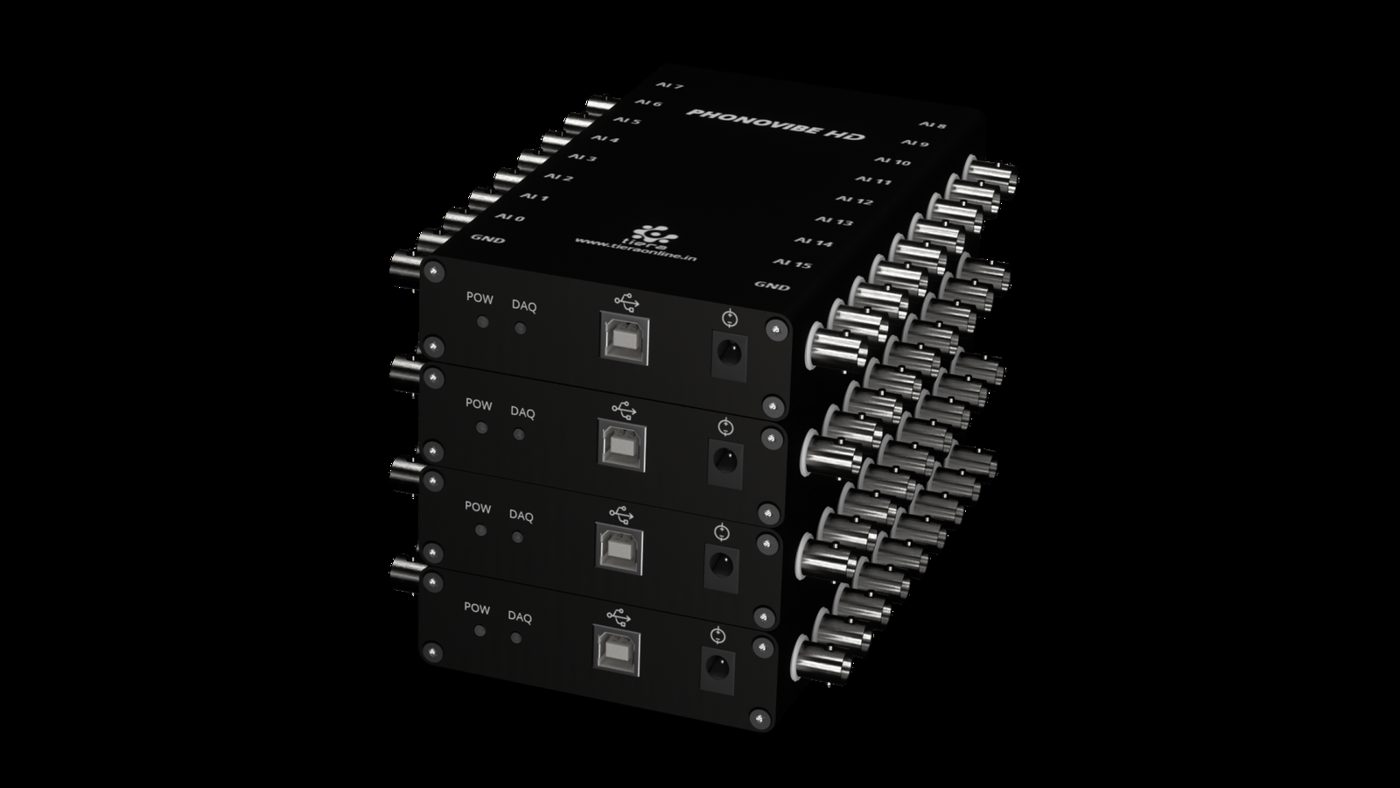

PhonoVibe HD — 16-Channel Sound & Vibration DAQ

Sixteen simultaneous 24-bit channels. 128 kHz. Modal-lab bandwidth in a USB box.

View details →

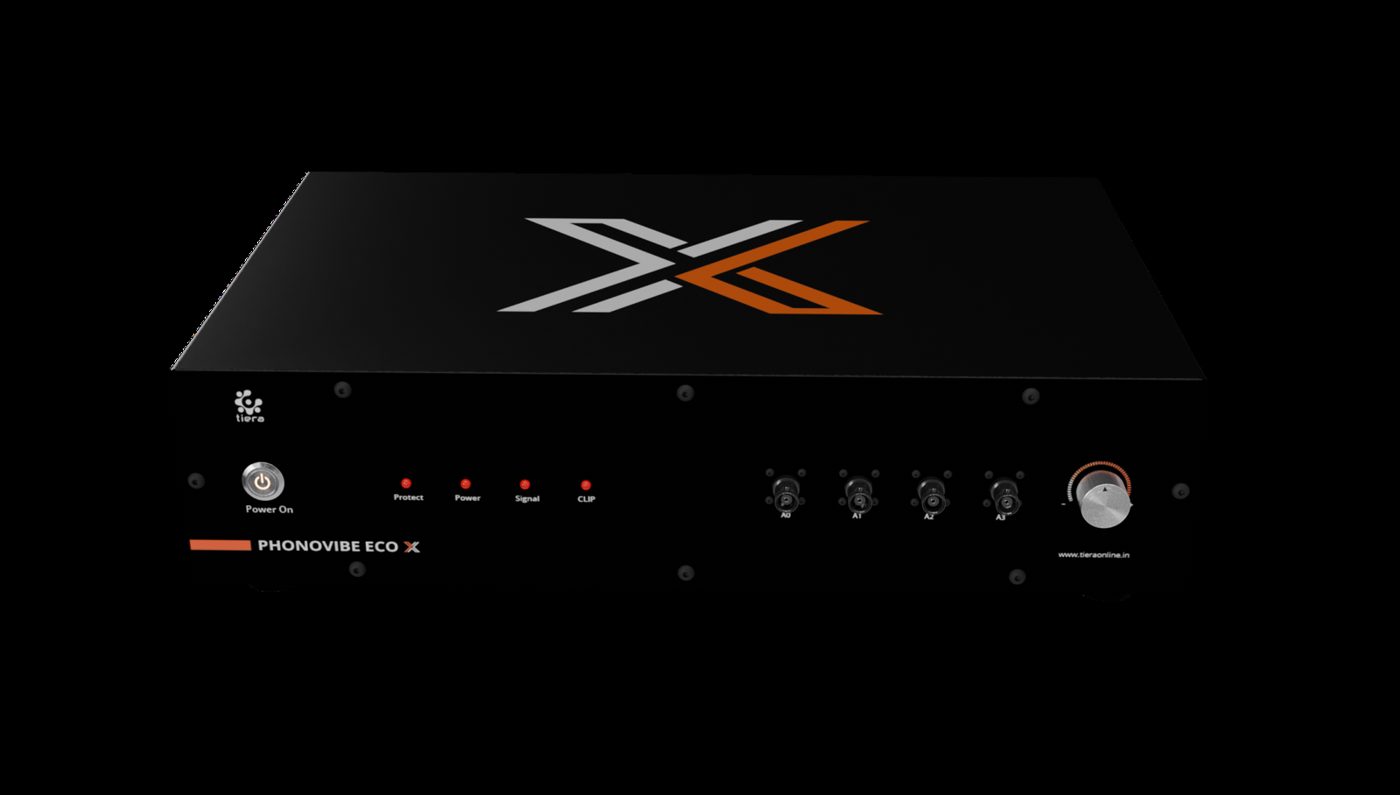

PhonoVibe Eco X — Integrated Vibration Bench

4-ch DAQ, 20 N shaker, 150 W amp, and sensors — one box, one cable.

View details →

Models / variants

Pricing on store →

SKU	Model	Notes
PhonoVibe-D	PhonoVibe D — 2 Channel	48 kHz · 2 Hz – 20 kHz · ±10 V input
PhonoVibe-Q	PhonoVibe Q — 4 Channel	128 kHz · 0.5 Hz – 60 kHz · ±5 V input
PhonoVibe-O	PhonoVibe O — 8 Channel	128 kHz · 0.5 Hz – 60 kHz · ±5 V input
PhonoVibe-HD	PhonoVibe HD — 16 Channel	128 kHz · 0.5 Hz – 60 kHz · ±5 V input · flagship
PhonoVibe-EcoX	PhonoVibe Eco X — 4 Channel + Shaker	4-ch DAQ + 20 N shaker — integrated bench

PhonoVibe Series

Not sure which model? Compare D, Q, O and HD side by side — channels, sample rate, bandwidth and price, with the measurement each one suits.

The PhonoVibe series is TIERA’s USB DAQ line for sound and vibration measurement. Four production models (D, Q, O, HD) and one integrated bench variant (Eco X) cover two-channel field kits through 16-channel modal labs.

Model lineup

Model	Channels	Sampling	Bandwidth	Input
PhonoVibe D	2 (BNC)	48 kHz	2 Hz – 20 kHz	±10 V
PhonoVibe Q	4 (BNC)	128 kHz	0.5 Hz – 60 kHz	±5 V
PhonoVibe O	8 (BNC)	128 kHz	0.5 Hz – 60 kHz	±5 V
PhonoVibe HD	16 (BNC)	128 kHz	0.5 Hz – 60 kHz	±5 V
PhonoVibe Eco X	4 + 20 N shaker	48 kHz	2 Hz – 20 kHz	±10 V

Every model: 24-bit ADC · simultaneous sampling · IEPE / ICP / CCLD sensor power (24 V / 4 mA) · TEDS support · static (DC) measurements · USB bus-powered, plug-and-play on Windows 10 and 11.

Datasheets

Individual datasheets for each model:

PhonoVibe Eco X — the integrated bench

The Eco X is a complete sound-and-vibration bench in a single box: 4-channel DAQ, 20 N electrodynamic shaker, 150 W amplifier, PC-based signal generator (sine, chirp, burst, random), and a sensor starter pack (100 mV/g accelerometer + 25 mV/N impact hammer). Optional MODALVIEW software for ODS and EMA.

Useful for universities running modal-analysis courses, TCAT training centres, and reliability teams needing a portable demo rig. See current pricing on the TIERA store.

What ships in the box

Every PhonoVibe DAQ ships with:

TVIB TSAP 201 software (perpetual licence)
Connectors and cables for sensor wiring
USB cable, quick-start guide
Factory calibration certificate (1-year validity)
2-year standard warranty (extendable to 3 with AMC)

Choosing a model

PhonoVibe D — single-machine condition monitoring, classroom teaching, field service kit.
PhonoVibe Q — small reliability team, multi-bearing or shaft-end measurement, mid-range modal work.
PhonoVibe O / HD — full modal testing, line-monitoring banks, multi-axis transducer arrays, R&D labs requiring parallel multi-channel capture.
PhonoVibe Eco X — universities, training centres, and engineering colleges that need a self-contained signal-chain bench.

What pairs naturally

TVIB TSAP 201 (bundled free) for time waveform, spectrum, FRF, octave, balancing
TMFSS as a controlled-fault source for training and algorithm validation
TIERA accelerometers (TACPB-10T3 MEMS) and cables — see Sensors & Accessories — or bring your own IEPE sensors

Third-party DAQ compatibility

TVIB also supports National Instruments 9234 / 4431, Modal Shop 485B39, Sinus Apollo Light, and Data Translation DT9837 — useful if you’re integrating PhonoVibe into a mixed-DAQ lab.

Academic discount available on hardware — confirm with sales.

More views

Want to buy or trial it?

Email sales or book a 20-minute demo call.

Email sales Book demo

From the TIERA blog

How this family is actually used

The measurements these instruments are bought to make, worked through end to end.

Common questions

Which PhonoVibe model do I need?: It comes down to channel count. PhonoVibe D is 2-channel, Q is 4, O is 8 and HD is 16. A single-point route or a bump test needs 2; two-plane balancing and most FRF work needs 4; modal and multi-point survey work is where 8 and 16 earn their place. Eco X is a 4-channel unit bundled with a shaker for teaching labs.
Does PhonoVibe work with sensors I already own?: Yes, if they are IEPE / ICP / CCLD types. Every channel supplies 24 V, 4 mA constant current and reads TEDS, so a sensor that identifies itself is recognised automatically. Charge-mode accelerometers need an external converter.
What software comes with it, and is it extra?: The TVIB TSAP201 base module is included free with every PhonoVibe — time waveform and narrowband FFT out of the box. Further TVIB modules such as balancing, sound level or order tracking are added only if you need them.
Is it calibrated, and what warranty does it carry?: Each unit ships with a factory calibration certificate valid for one year. Warranty is 2 years as standard and can be extended to 3.
What computer does it need?: Windows 10 or 11, 32-bit or 64-bit. It is USB-powered and plug-and-play, so no separate power supply or PCI card is involved.
