Vertical and Lateral Shaker Stands
Mechanical stands for vertical, horizontal and oblique excitation.
TIERA shaker stands support electromagnetic shakers during structural testing, helping laboratories position the actuator for vertical, horizontal and oblique excitation with better alignment, safer handling and repeatable force input.
- •Lateral / horizontal excitation stand for horizontal and oblique input
- •Vertical shaker stand for aircraft structures, panels and fixtures
- •Mobile stand formats for quicker laboratory repositioning
- •Wire-stinger and fixture arrangements for cleaner force input
- •Designed for modal, FRF, ODS and structural dynamics testing
- •Works with compact electrodynamic shakers and custom test fixtures
Lateral / horizontal excitation stand
Positions a shaker for horizontal and oblique excitation during modal, FRF and structural response testing.

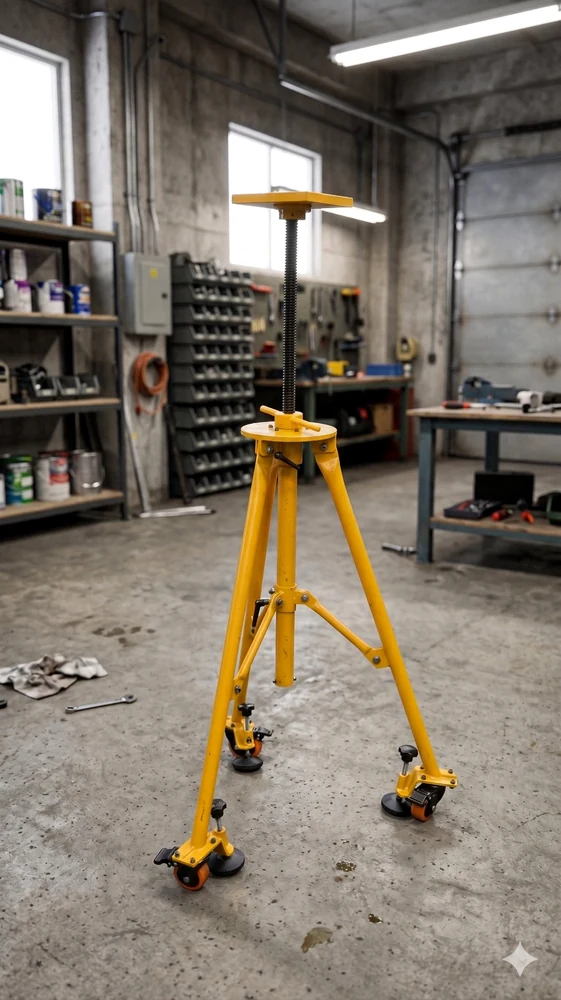

Vertical shaker stand
Supports vertical excitation of panels, aircraft structures, fixtures and research test objects.
Choose by force direction and access.
Start with the direction of excitation, then decide the height, mobility and stinger arrangement required around the test object.
Direction
Vertical, horizontal or oblique input
Structure
Panel, frame, aircraft part or fixture
Signal quality
Alignment, stinger, sensor access and repeatability
Built for controlled excitation geometry
The stand range helps laboratories position shakers safely and repeatably around test structures. The lateral / horizontal excitation stand adapts electromagnetic shakers for horizontal and oblique input, while vertical stand options support vertical excitation during experimental structural testing.
These fixtures are intended for modal testing, force-response measurements, aircraft panels, civil structures, automotive assemblies and other test objects where shaker alignment affects data quality.
Typical applications
- Modal analysis and FRF testing of panels, beams, frames and assemblies
- Aircraft structure and aerospace component excitation
- Experimental structural dynamics in university and R&D laboratories
- Shaker positioning for vertical, lateral and angled force input
- Repeatable test setup for comparison between design iterations
