IEPE Signal Conditioners
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.

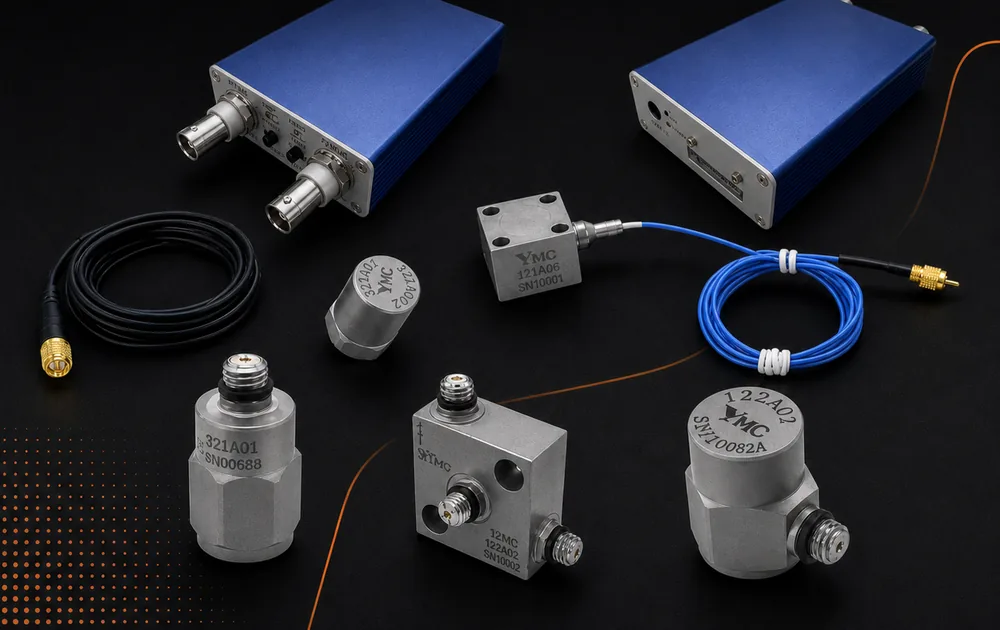

YMC IEPE signal conditioners supply the constant-current excitation an IEPE sensor needs and amplify, filter and buffer its output.
YMC IEPE signal conditioners supply the constant-current excitation an IEPE sensor needs and amplify, filter and buffer its output.
Specifications
| Channels | 1, 3, 4 or 16 |
|---|---|
| Gain | 1 to 100 selectable |
| Frequency range | 0.3 Hz ~ 100 kHz (DC ~ 30 kHz on the MEMS conditioner) |
| Excitation | 24 VDC, 4 – 20 mA constant current |
| Connections | BNC in / BNC out |
| Power | Battery, external DC or mains |
IEPE signal conditioners
| Model | Channels | Input type | Gain | Frequency range | Excitation voltage | Constant current | Input / output type | Size (mm) | Weight | Power supply |
|---|---|---|---|---|---|---|---|---|---|---|
| 8201 | 1 | IEPE | 1, 10 | 0.3 Hz ~ 100 kHz | 24 VDC | 4 mA | BNC / BNC | 26×66×100 | 300 g | Built-in rechargeable battery |
| 8201T | 1 | IEPE | 1 (optional) | 0.3 Hz ~ 100 kHz | 24 VDC | 4 mA | BNC / BNC | 44×17×50 | 55 g | External DC supply |
| 8204 | 4 | Voltage, IEPE | 1, 10, 100 | 0.3 Hz ~ 100 kHz | 24 VDC | OFF, 4 mA, 10 mA, 20 mA | BNC / BNC | 45×122×200 | 1.4 kg | 220 V 50 Hz 0.2 A |
| 8216 | 16 | IEPE | 1, 10 | 0.3 Hz ~ 100 kHz | 24 VDC | 4 mA | BNC / BNC | 482×44×240 | 3.8 kg | 220 V 50 Hz 0.3 A / 110 V 60 Hz 1 A |
| 3832 | 3 | Voltage | 1, 2, 4, 8, 10 | DC ~ 30 kHz | 9 VDC | 20 mA | 7-pin / BNC | 45×122×200 | 1.0 kg | 220 V 50 Hz 0.2 A |
YMC IEPE signal conditioners supply the constant-current excitation an IEPE sensor needs and amplify, filter and buffer its output. The range runs from a battery-powered single channel to a 16-channel 19-inch rack unit, plus a DC conditioner for MEMS sensors.
Typical applications

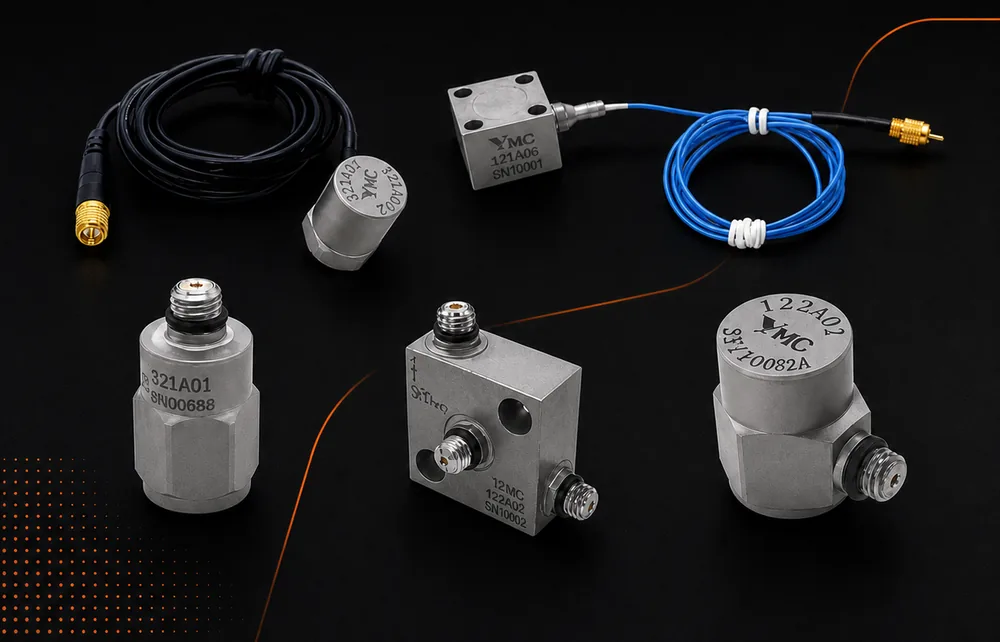

- Powering IEPE accelerometers, microphones and force sensors
- Field measurement with battery-powered conditioning
- Multi-channel laboratory and modal test setups
Models
YMC 8201 — Battery-powered IEPE Signal Conditioner
Selectable gain 1 or 10; small size, light weight; wide frequency range; LED operation status indicator; low-battery warning; internal or external power supply.

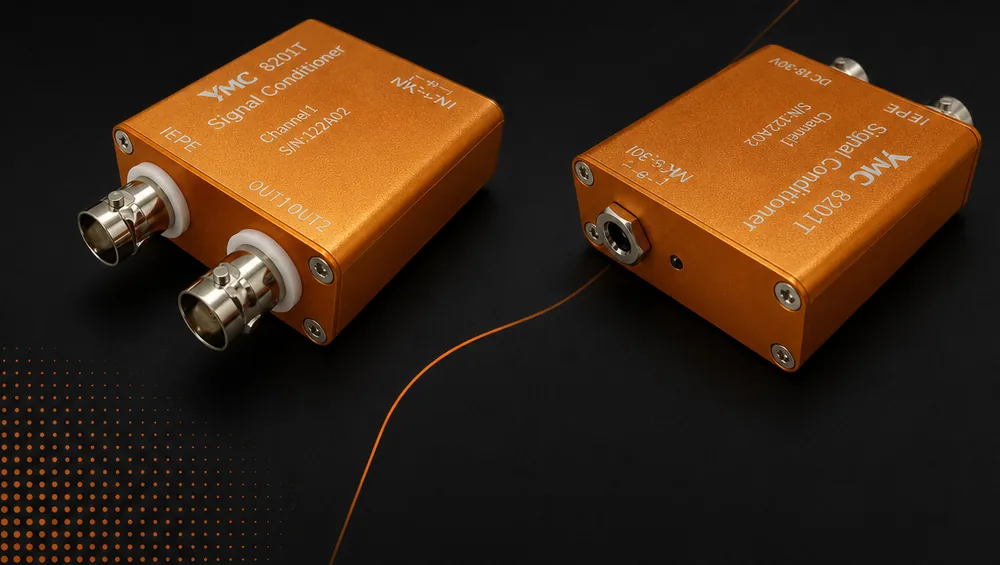

YMC 8201T — 1-Channel Miniature IEPE Signal Conditioner
External DC power supply, small size, light weight. Provides the excitation source for IEPE sensors and conditions the output signal with amplification and filtering.
YMC 8204 — 4-Channel IEPE Signal Conditioner
Selectable current 4 to 20 mA; selectable gain 1 to 100; wide frequency range; LED operation status indicator; low noise, good stability.

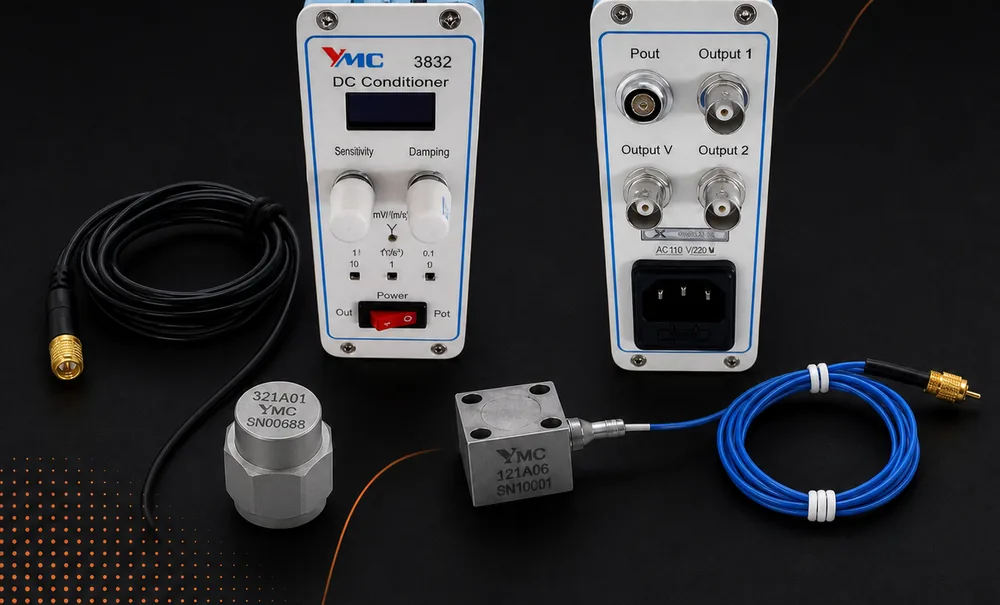

YMC 3832 — MEMS Sensor Signal Conditioner
Provides power for MEMS sensors with amplification and filtering. Takes three unidirectional MEMS sensors or one three-way MEMS sensor. Gain and low-pass filter multi-step adjustable, signal overload indication.
YMC 8216 — 16-Channel IEPE Signal Conditioner
Standard 19-inch case; selectable gain 1 or 10; wide frequency range; LED operation status indicator; internally adjustable low-pass cut-off frequency and excitation current.
Supplied and supported in India by TIERA, authorised distributor for YMC. Pricing and lead time on request — tell us the model and the measurement, and we will confirm the right part number.
