Dynamic Data Collector
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.

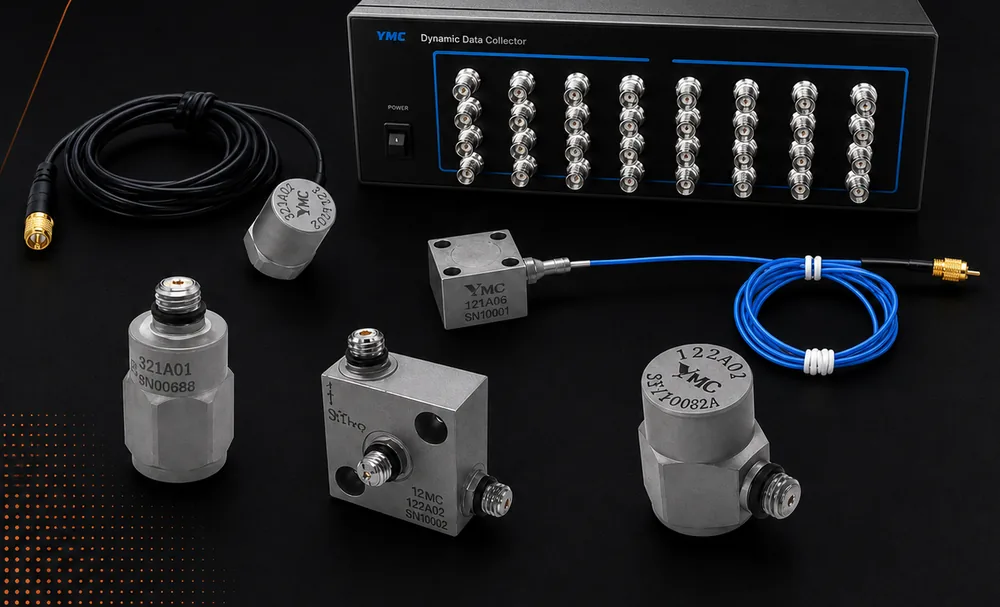

The YMC Series dynamic data collector is a multichannel parallel data acquisition system on a USB 2.0 interface, with voltage and IEPE input modes. Channels combine arbitrarily, multiple devices cascade, and each unit carries a built-in programmable gain amplifier and real-time digital filtering.
0 interface, with voltage and IEPE input modes. Channels combine arbitrarily, multiple devices cascade, and each unit carries a built-in programmable gain amplifier and real-time digital filtering. Read more
scade, and each unit carries a built-in programmable gain amplifier and real-time digital filtering.Specifications
| Channels | 2 to 32 input, up to 2 analog output |
|---|---|
| Resolution | 16 or 24 bit |
| Sampling rate | Up to 1 MHz simultaneous (3 MHz single channel) |
| Input modes | Voltage, IEPE and charge (PE) depending on model |
| Interface | USB 2.0, multiple devices cascade |
| Software | LabVIEW and MATLAB data interfaces |

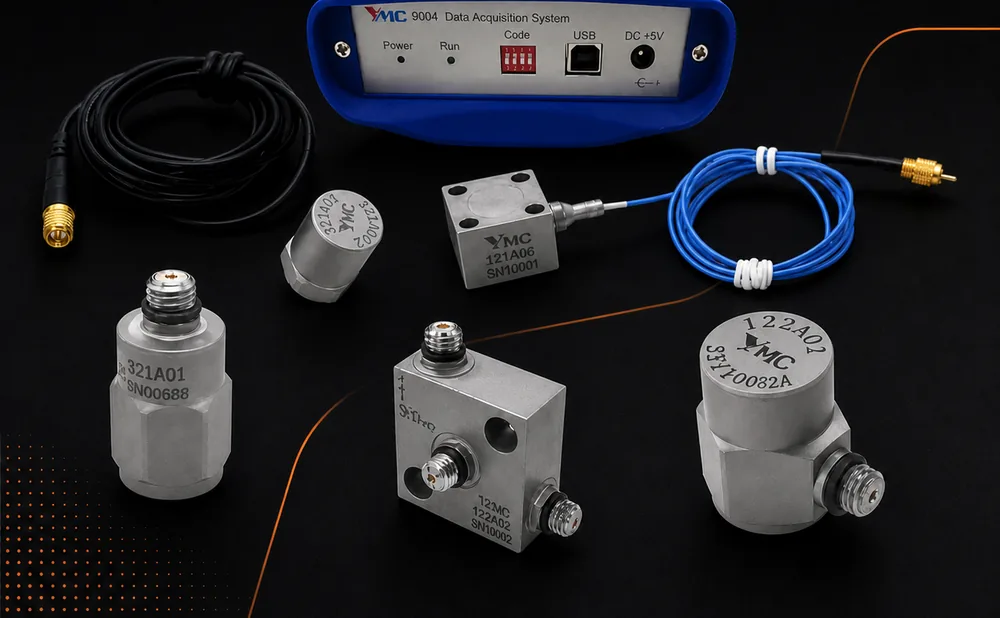

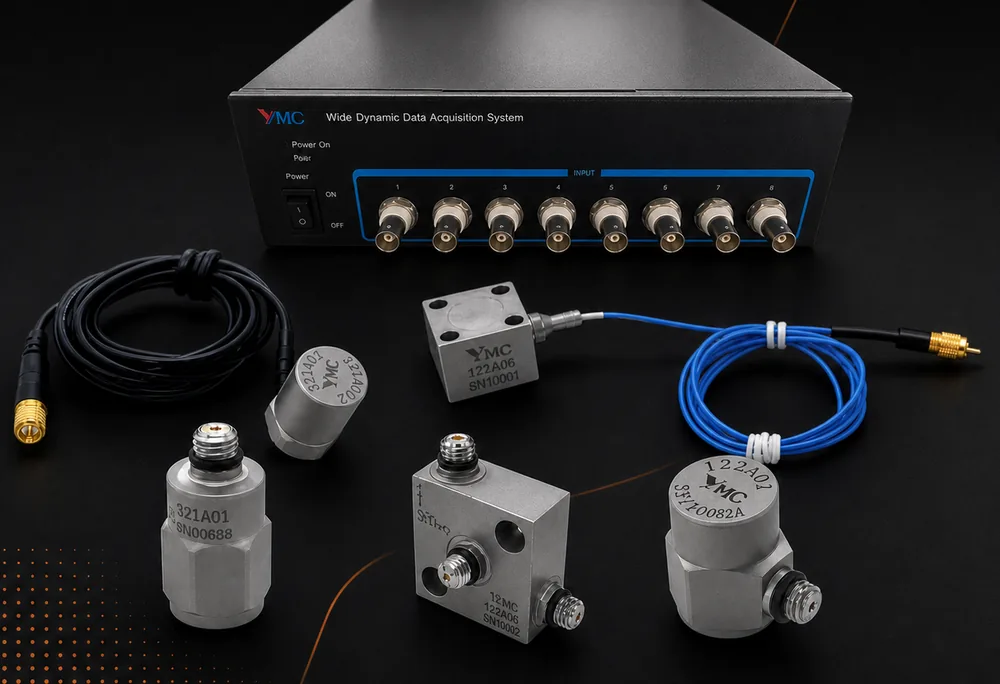

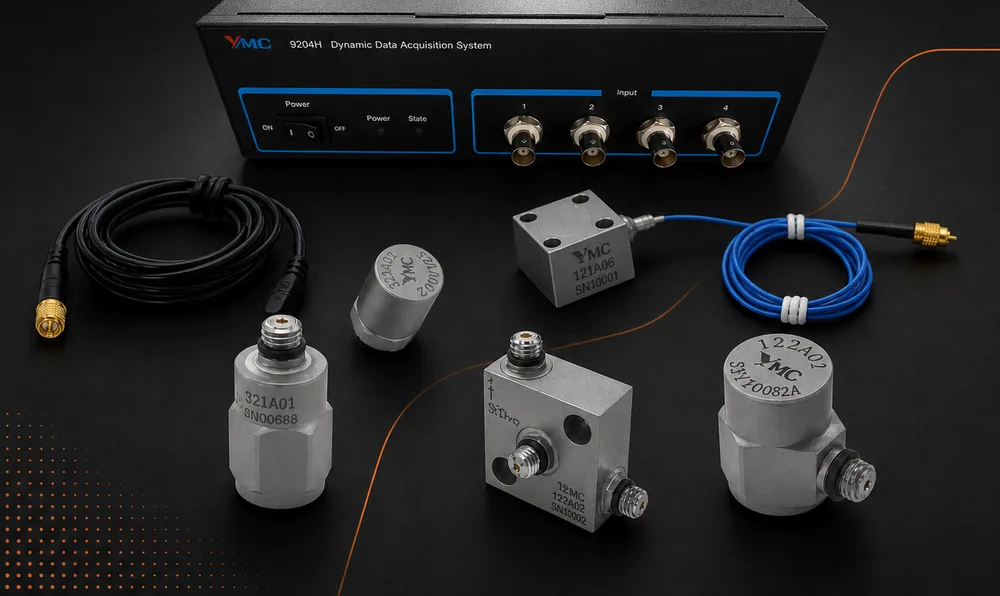

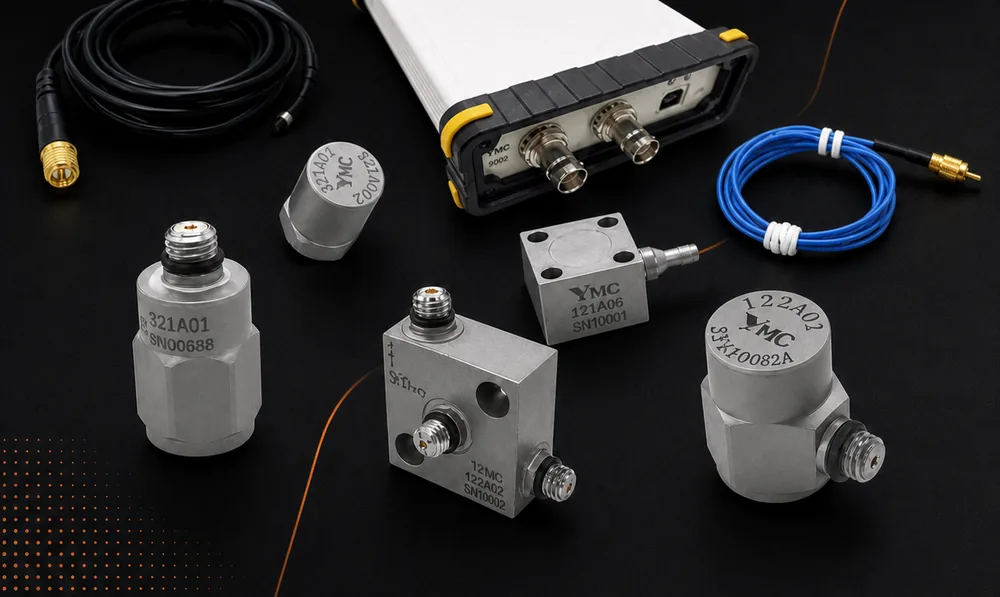

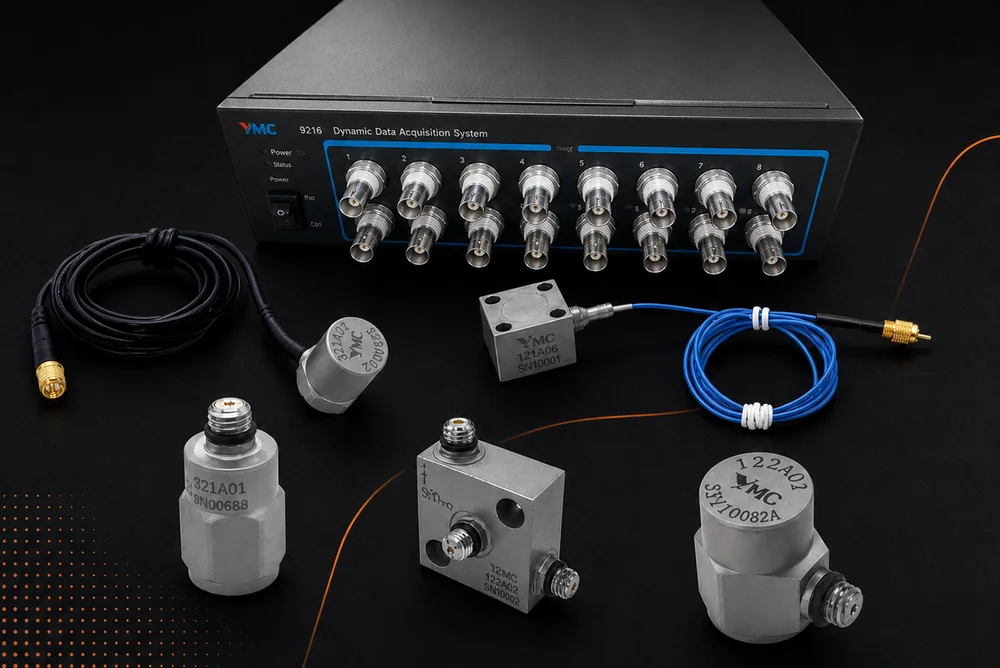

Dynamic data collectors
| Parameter | 9002 | 9004 | 9004H | 9204H | 9208H | 9216 | 9232 |
|---|---|---|---|---|---|---|---|
| Input channels (AD) | 2 | 4 | 4 | 4 | 8 | 16 | 32 |
| Output channels (DA) | — | — | — | 2 | 2 | 2 | 2 |
| Signal input range — voltage | ±10 Vp | ±10 Vp | ±8.8 Vp | ±10 Vp | ±10 Vp | ±10 Vp | ±10 Vp |
| Signal input range — IEPE | ±10 Vp | ±10 Vp | ±8.8 Vp | ±10 Vp | ±10 Vp | ±10 Vp | ±10 Vp |
| Signal input range — charge PE | — | — | — | ±10⁵ pC | ±10⁵ pC | — | — |
| Input frequency range — voltage | DC ~ 30 kHz | DC ~ 30 kHz | DC ~ 200 kHz | DC ~ 100 kHz | DC ~ 100 kHz | DC ~ 50 kHz | DC ~ 50 kHz |
| Input frequency range — IEPE | 0.3 Hz ~ 30 kHz | 0.3 Hz ~ 30 kHz | 0.3 Hz ~ 200 kHz | 0.3 Hz ~ 100 kHz | 0.3 Hz ~ 100 kHz | 0.3 Hz ~ 50 kHz | 0.3 Hz ~ 50 kHz |
| Input frequency range — charge PE | — | — | — | 0.3 Hz ~ 100 kHz | 0.3 Hz ~ 100 kHz | — | — |
| Single channel sampling rate | 100 kHz | 100 kHz | 3 MHz | 1 MHz | 1 MHz | 100 kHz | 50 kHz |
| Simultaneous sampling rate | 100 kHz | 100 kHz | 750 kHz | 1 MHz | 1 MHz | 100 kHz | 50 kHz |
| AD bits | 24 | 24 | 16 | 16 | 16 | 24 | 24 |
| Built-in gain | ×1, ×10, ×100 | ×1, ×10, ×100 | ×1, ×10 | ×0.1, ×1, ×10, ×100 | ×0.1, ×1, ×10, ×100 | ×1, ×10, ×100 | ×1, ×10, ×100 |
| AD accuracy | ≤±0.5 % | ≤±0.5 % | ≤±0.5 % | ≤±0.5 % | ≤±0.5 % | ≤±0.5 % | ≤±0.5 % |
| DA conversion rate | — | — | — | 500 kHz | 500 kHz | 500 kHz | 500 kHz |
| Analog output range | — | — | — | ±10 Vp | ±10 Vp | ±10 Vp | ±10 Vp |
| DA accuracy | — | — | — | ≤±1 % | ≤±1 % | ≤±1 % | ≤±1 % |
| Size W×H×D (mm) | 100×122×45 | 200×122×45 | 200×122×45 | 240×70×280 | 240×70×280 | 240×70×280 | 340×132.5×280 |
| Weight | 500 g | 460 g | 750 g | 3.5 kg | 3.5 kg | 4.0 kg | 6.5 kg |
| Power supply | USB | USB | 7.5 VDC | 220 V 50 Hz | 220 V 50 Hz | 220 V 50 Hz | 220 V 50 Hz |
Models covered
The YMC Series dynamic data collector is a multichannel parallel data acquisition system on a USB 2.0 interface, with voltage and IEPE input modes. Channels combine arbitrarily, multiple devices cascade, and each unit carries a built-in programmable gain amplifier and real-time digital filtering. It is supported by rich universal test and analysis software and provides LabVIEW and MATLAB data interfaces for subsequent processing. It is particularly applicable to force and acceleration sensor matched vibration measurement data acquisition and analysis systems, and to modal test systems.
Typical applications
- Vibration measurement data acquisition and analysis
- Modal test systems
- Multi-channel laboratory measurement with LabVIEW / MATLAB
Supplied and supported in India by TIERA, authorised distributor for YMC. Pricing and lead time on request — tell us the model and the measurement, and we will confirm the right part number.
