Adaptors
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
Coaxial adaptors to bridge the connector standards used across a vibration measurement chain — M5, 10-32, BNC and TNC — including a 3-BNC tee for splitting a signal to two instruments.
Coaxial adaptors to bridge the connector standards used across a vibration measurement chain — M5, 10-32, BNC and TNC — including a 3-BNC tee for splitting a signal to two instruments.
Specifications
| Standards bridged | M5, 10-32, BNC, TNC |
|---|---|
| Types | Straight barrel, bulkhead, plug-to-socket and tee |
| Tee | 3-BNC, 2 female + 1 male |
| Use | Adapting sensor leads to instrument inputs |
Adaptor codes
| Code | Description |
|---|---|
| D001 | M5 / M5 (female); M5 / 10-32 (female); 10-32 / 10-32 (female) |
| D002 | M5 / M5 (female); 10-32 / 10-32 (female) |
| D003 | BNC (male) / M5 (female); BNC (male) / 10-32 (female) |
| D004 | BNC (female) / BNC (female) |
| D005 | 3-BNC tee (2 female, 1 male) |

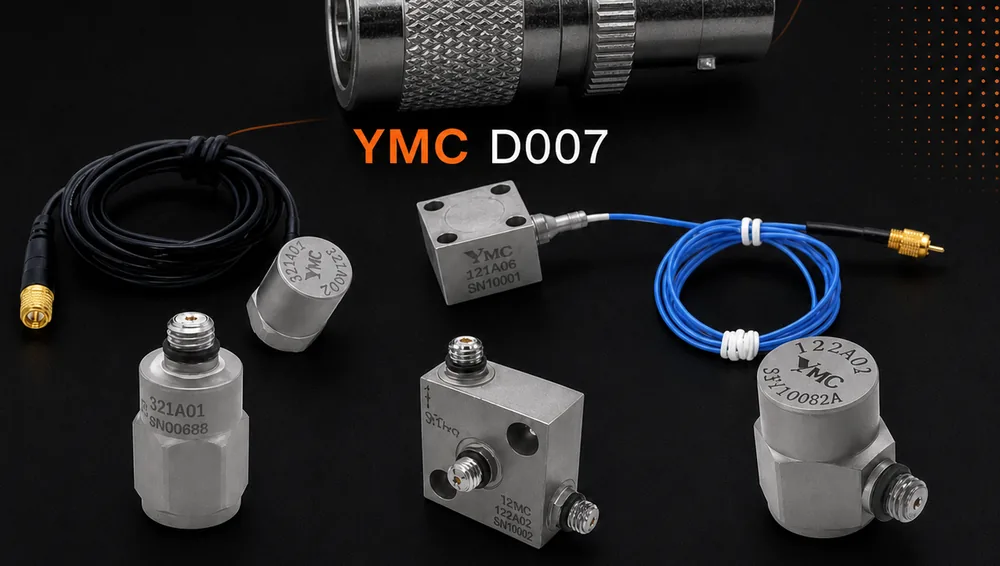

| D007 | TNC (female) / BNC (female) |
Coaxial adaptors to bridge the connector standards used across a vibration measurement chain — M5, 10-32, BNC and TNC — including a 3-BNC tee for splitting a signal to two instruments.
Typical applications
- Connecting M5 / 10-32 sensor leads to BNC instrument inputs
- Extending or joining coaxial cables
- Splitting one signal to two instruments (tee)
Supplied and supported in India by TIERA, authorised distributor for YMC. Pricing and lead time on request — tell us the model and the measurement, and we will confirm the right part number.
