Dynamic Strain Amplifier
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
YMC 8601 / 8603 dynamic strain amplifiers digitally display each channel's output voltage, with optional multi-gain, bridge voltage and low-pass filters, long-wire automatic compensation and double 12-bit D/A automatic tuning balance.
YMC 8601 / 8603 dynamic strain amplifiers digitally display each channel's output voltage, with optional multi-gain, bridge voltage and low-pass filters, long-wire automatic compensation and double… Read more
12-bit D/A automatic tuning balance.Specifications
| Channels | 1 to 10 |
|---|---|
| Bridge resistance | 120 ~ 1000 Ω |
| Input range | 0 ~ ±100,000 µε |
| Frequency range | DC – 100 kHz |
| Gain accuracy | ≤±0.5 % |
| Balance | Automatic, ±5000 µε |
Dynamic strain amplifiers
| Parameter | 8601 | 8602 | 8603 |
|---|---|---|---|
| Input channels | 1 | 1 | 2, 4, 6, 8, 10 |
| Bridge resistance | 120 ~ 1000 Ω | 120 ~ 1000 Ω | 120 ~ 1000 Ω |
| Input range | 0 ~ ±100000 µε | DC 0 ~ ±100 mV; AC 0 ~ ±10000 mV | 0 ~ ±100000 µε |
| Output range | ±10 Vp / 5 mA | ±10 Vp / 5 mA | ±10 Vp / 5 mA |
| Noise | ≤5 µV | ≤3 µV | ≤3 µV |
| Stability | Zero ±1 µV/°C, ±0.1 % F.S. / 2 h; sensitivity ±0.01 % F.S./°C, ±0.1 % F.S./2 h | — | Zero ±1 µV/°C, ±0.1 % F.S. / 2 h; sensitivity ±0.01 % F.S./°C, ±0.1 % F.S./2 h |
| Bridge voltage | 1, 2, 5, 10 VDC / 50 mA (max.) | 12 VDC / 50 mA | 1, 2, 5, 10 VDC / 50 mA (max.) |
| Gain classification | 100; 300; 1000; 3000 | DC: 100, 1000; AC: 1, 10 | 100; 300; 1000; 3000 |
| Gain accuracy | ≤±0.5 % | ≤±0.5 % | ≤±0.5 % |
| Gain non-linearity | 0.1 % FS | 0.1 % FS | 0.1 % FS |
| Balance | Auto ±5000 µε | Auto clear zero | Auto ±5000 µε |
| Frequency range | DC – 100 kHz | DC – 100 kHz | DC – 100 kHz |
| Low-pass filters (-3 dB) | 30, 100, 300, 1k, 3k, 10k, 30k, 100 kHz | 100 kHz | 30, 100, 300, 1k, 3k, 10k, 30k, 100 kHz |
| Operating environment | -10 to 50 °C; humidity 85 % R.H. | -10 to 50 °C; humidity 85 % R.H. | -10 to 50 °C; humidity 85 % R.H. |
| Power supply | 220 V ±10 % 50 Hz 0.2 A | 220 V ±10 % 50 Hz 0.2 A | 220 V ±10 % 50 Hz 1 A |
| Size | 45W ×122H ×200D mm | 155W ×70H ×200D mm | 235W ×132.5H ×300D mm |
| Weight | 1.2 kg | 2.0 kg | 4.5 kg (10 ch) |
| Input / output type | Input 7-pin LEMO socket; output BNC | Input 4-pin LEMO socket | Input 7-pin LEMO socket; output BNC |
YMC 8601 / 8603 dynamic strain amplifiers digitally display each channel’s output voltage, with optional multi-gain, bridge voltage and low-pass filters, long-wire automatic compensation and double 12-bit D/A automatic tuning balance. They suit general or high frequency response and strain test work. The YMC 8602 can hold a peak value with a force sensor and can directly display the dynamic or peak force value.
Typical applications
- Strain-gauge bridge measurement
- Dynamic and peak force display with a force sensor
- Structural and material testing
Models

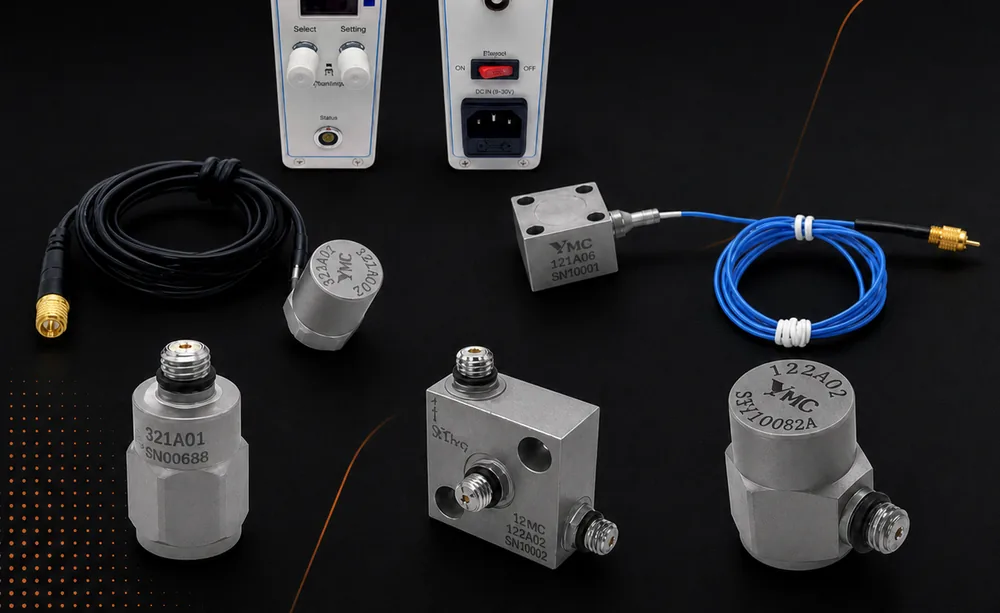

- YMC 8601 — single channel

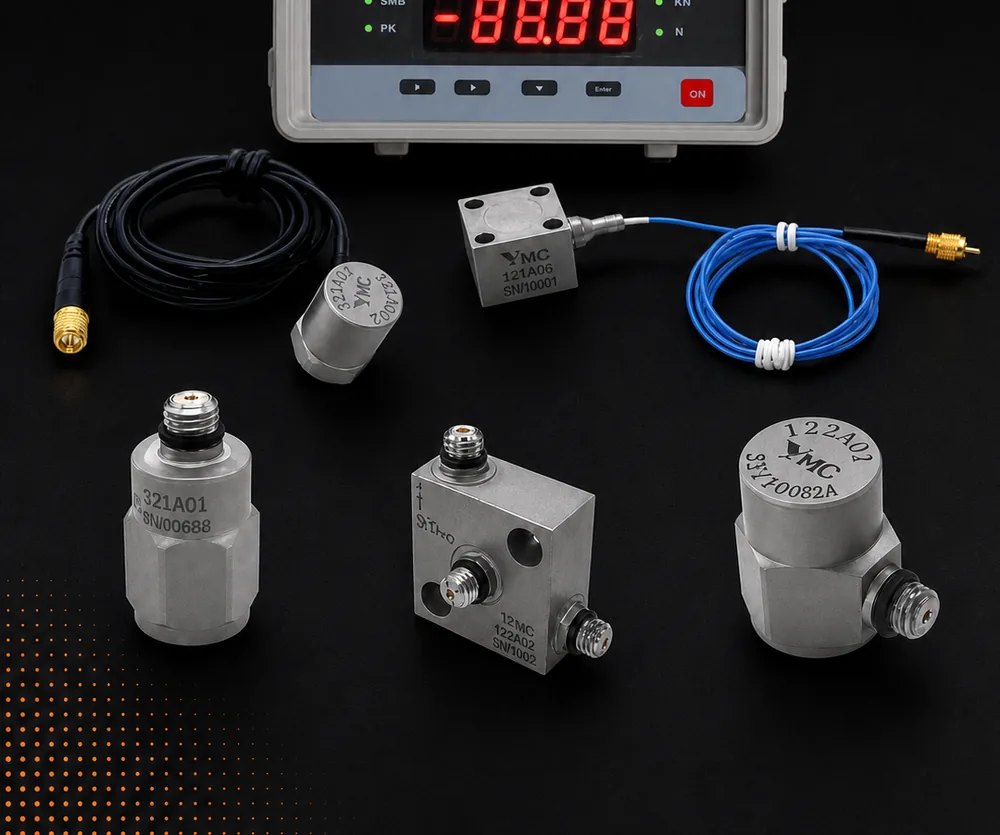

- YMC 8602 — single channel with peak hold and direct force display

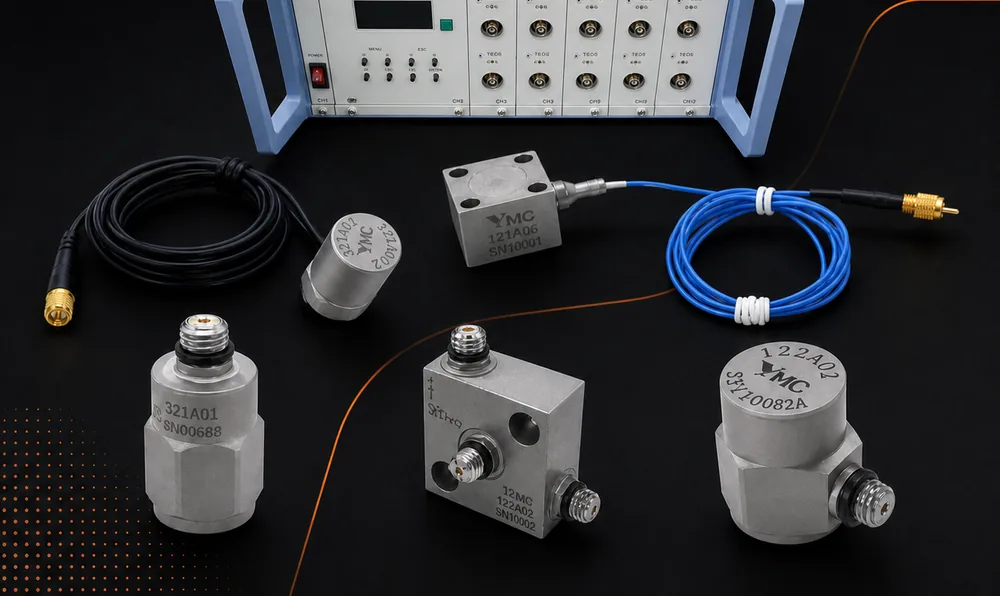

- YMC 8603 — 2, 4, 6, 8 or 10 channels
Supplied and supported in India by TIERA, authorised distributor for YMC. Pricing and lead time on request — tell us the model and the measurement, and we will confirm the right part number.
