Dynamic Force Sensor: Force Ring
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.

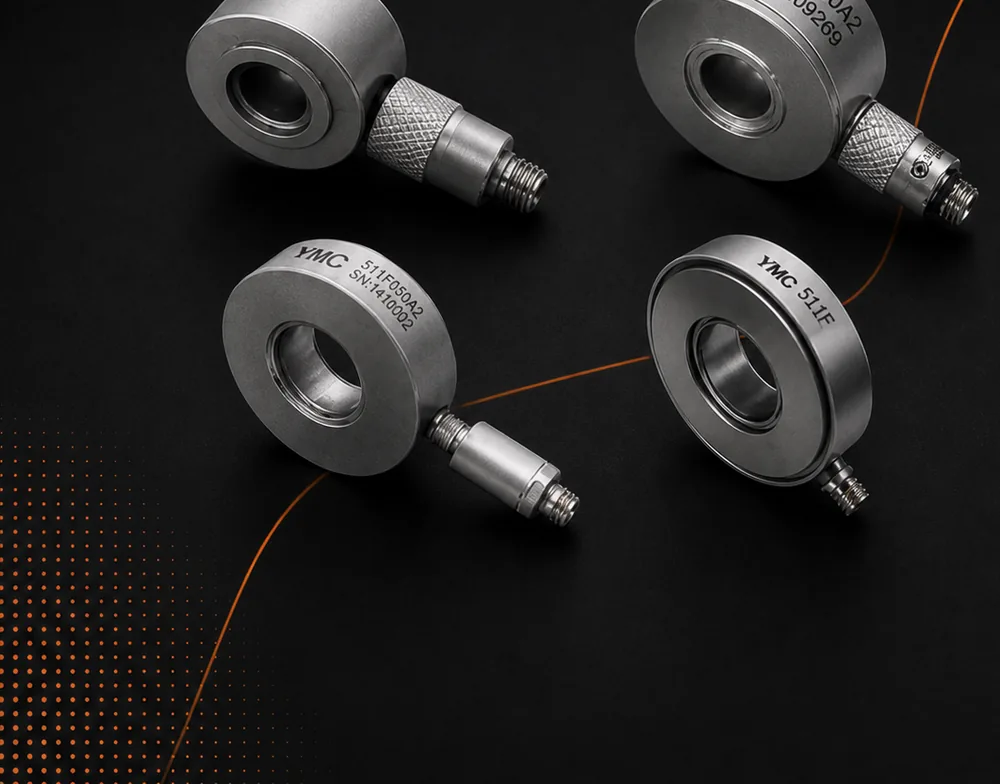

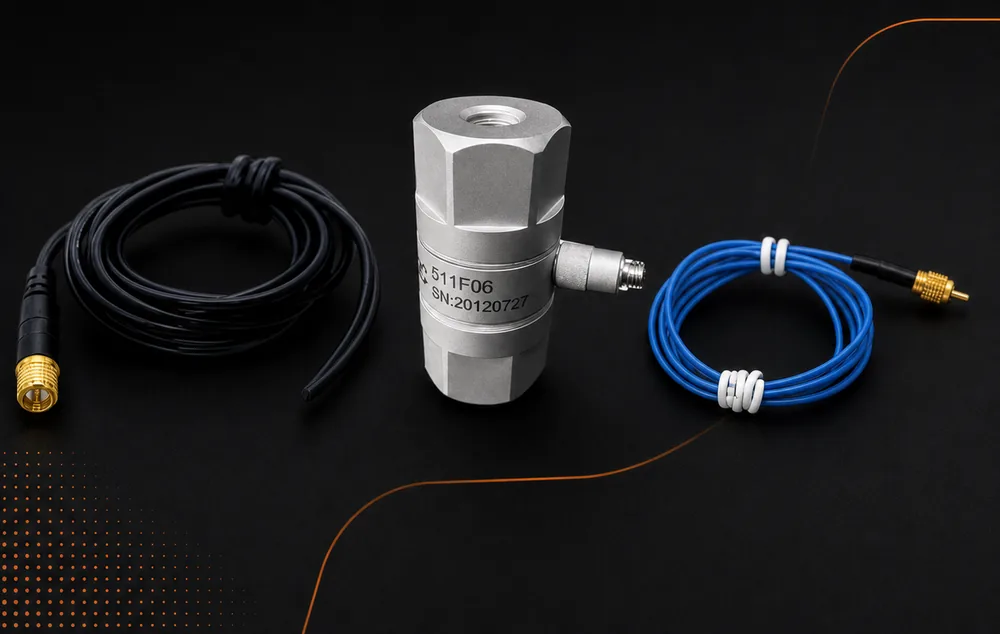

YMC 511F Series force rings are through-hole dynamic force sensors for compression-only measurement. With the optional clamp (link) fitted, the same ring measures both tension and compression. Ranges run from 0.5 kN to 500 kN.
YMC 511F Series force rings are through-hole dynamic force sensors for compression-only measurement. With the optional clamp (link) fitted, the same ring measures both tension and compression. Read more
Ranges run from 0.5 kN to 500 kN.Specifications
| Measuring range | 0.5 – 500 kN pk |
|---|---|
| Sensitivity | 0.02 – 10 mV/N (IEPE); 2 pC/N (charge) |
| Non-linearity | ≤1 % |
| Resonant frequency | 25 – 70 kHz |
| Form | Through-hole ring; clamp/link option adds tension |
| Temperature range | -40 ~ +121 °C (-70 ~ +200 °C on 511F08PE) |
Force rings — compression only (with clamp for tension and compression)
| Parameter | Unit | 511F01 | 511F02 | 511F03 | 511F04 | 511F05 | 511F06 | 511F07 | 511F08PE |
|---|---|---|---|---|---|---|---|---|---|
| Sensitivity | mV/N | 10 | 2.5 | 1 | 0.5 | 0.1 | 0.05 | 0.02 | 2 pC/N |
| Measuring range | kN pk | 0.5 | 2 | 5 | 10 | 50 | 100 | 250 | 500 |
| Non-linearity | % | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Resonant frequency | kHz | 70 | 70 | 70 | 50 | 50 | 40 | 35 | 25 |
| Temperature range | °C | -40 ~ +121 | -40 ~ +121 | -40 ~ +121 | -40 ~ +121 | -40 ~ +121 | -40 ~ +121 | -40 ~ +121 | -70 ~ +200 |
| Resolution | mN rms | 10 | 50 | 120 | 250 | 1,250 | 2,500 | 5,000 | — |
| Minimum frequency | Hz | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 0.3 |
| Output connector | M5 | M5 | M5 | M5 | M5 | M5 | M5 | M5 / TNC | |
| Size | mm | Φ18×Φ6×12 | Φ18×Φ6×12 | Φ18×Φ6×12 | Φ26×Φ8×12 | Φ26×Φ8×12 | Φ46×Φ20×13 | Φ56×Φ21×17 | Φ95×Φ41×23 |
| Weight | g | 24 | 24 | 24 | 30 | 30 | 85 | 250 | 780 |
Models covered
YMC 511F Series force rings are through-hole dynamic force sensors for compression-only measurement. With the optional clamp (link) fitted, the same ring measures both tension and compression. Ranges run from 0.5 kN to 500 kN.
Typical applications
- Press, punch and clamping force measurement
- Force-limited vibration testing
- Bolt-preload and structural force monitoring
The supplied specification image also carries a second table copied from the High Shock Accelerometer sheet; it does not describe the 511F series and has not been published.
Supplied and supported in India by TIERA, authorised distributor for YMC. Pricing and lead time on request — tell us the model and the measurement, and we will confirm the right part number.
