Dynamic Force Sensor (compression only): Side Output
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
YMC series quartz dynamic force sensors measure dynamic or quasi-static tensile or compression forces. High rigidity gives a high natural frequency, and the high resolution allows small dynamic changes to be measured on top of large forces.
YMC series quartz dynamic force sensors measure dynamic or quasi-static tensile or compression forces. Read more
High rigidity gives a high natural frequency, and the high resolution allows small dynamic changes to be measured on top of large forces.Specifications
| Measuring range | 500 N – 5 kN |
|---|---|
| Sensitivity | 1 – 10 mV/N (IEPE); 4 pC/N (charge) |
| Resonant frequency | ≥50 kHz |
| Resolution | From 2 mN |
| Output | Side exit |
| Temperature range | -40 ~ +121 °C (-70 ~ +200 °C on 501F03PE) |

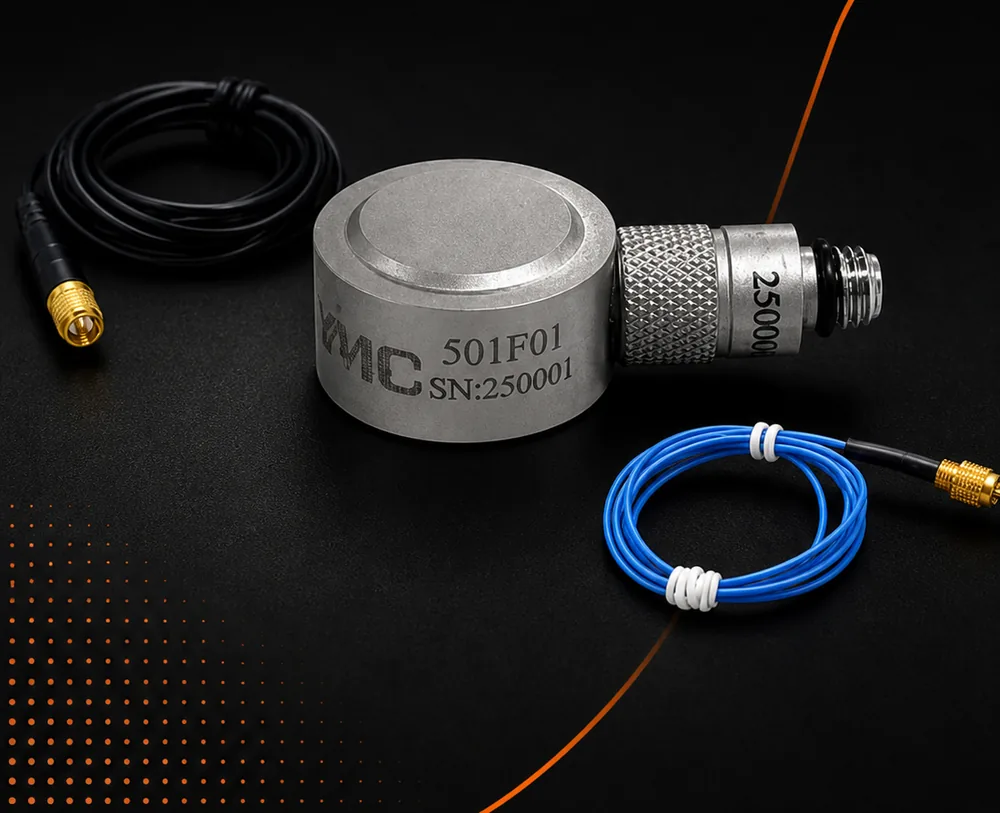

Compression-only force sensors, side output
| Model | Sensitivity | Resonant frequency | Measurement range | Resolution | Temperature range | Weight | Output type | Size (mm) |
|---|---|---|---|---|---|---|---|---|

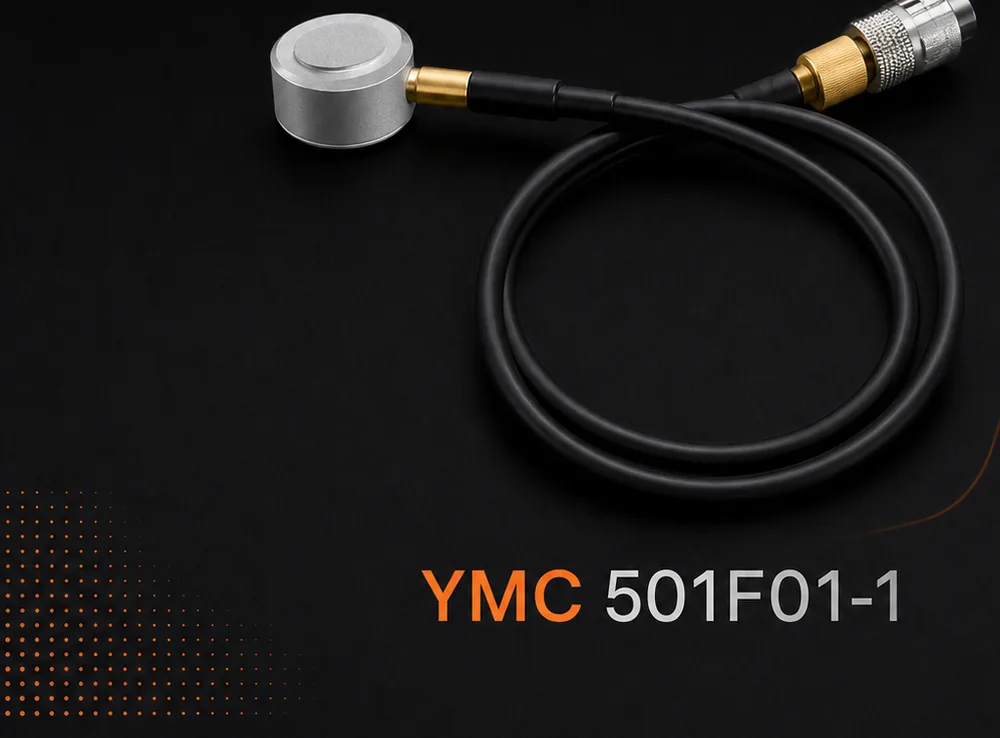

| 501F01-1 | 10 mV/N | ≥50 kHz | 500 N | 2 mN | -40 ~ +121 °C | 9 g | M3 | Φ15×7.5 |
| 501F01 | 10 mV/N | ≥50 kHz | 500 N | 2 mN | -40 ~ +121 °C | 20 g | M5 | Φ18×10 |
| 501F02 | 2.5 mV/N | ≥50 kHz | 2 kN | 10 mN | -40 ~ +121 °C | 20 g | M5 | Φ18×10 |
| 501F03 | 1 mV/N | ≥50 kHz | 5 kN | 20 mN | -40 ~ +121 °C | 20 g | M5 | Φ18×10 |

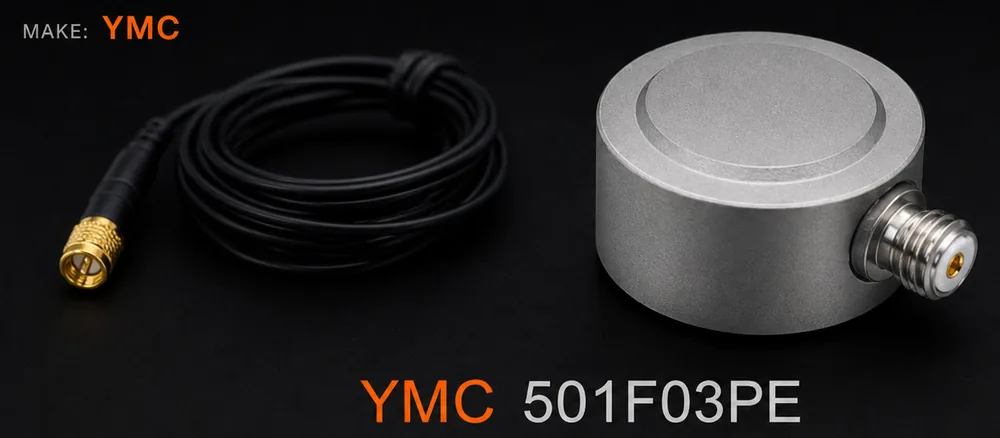

| 501F03PE | 4 pC/N | ≥50 kHz | 5 kN | — | -70 ~ +200 °C | 17 g | M5 | Φ18×10 |
Models covered
YMC series quartz dynamic force sensors measure dynamic or quasi-static tensile or compression forces. High rigidity gives a high natural frequency, and the high resolution allows small dynamic changes to be measured on top of large forces. The 501F series is compression-only with side output, for packaging drop test, impact test, cyclic impact, collision test and punching machine work.
Typical applications
- Packaging drop test
- Impact and cyclic impact testing
- Collision testing
- Punching machine testing
Supplied and supported in India by TIERA, authorised distributor for YMC. Pricing and lead time on request — tell us the model and the measurement, and we will confirm the right part number.
