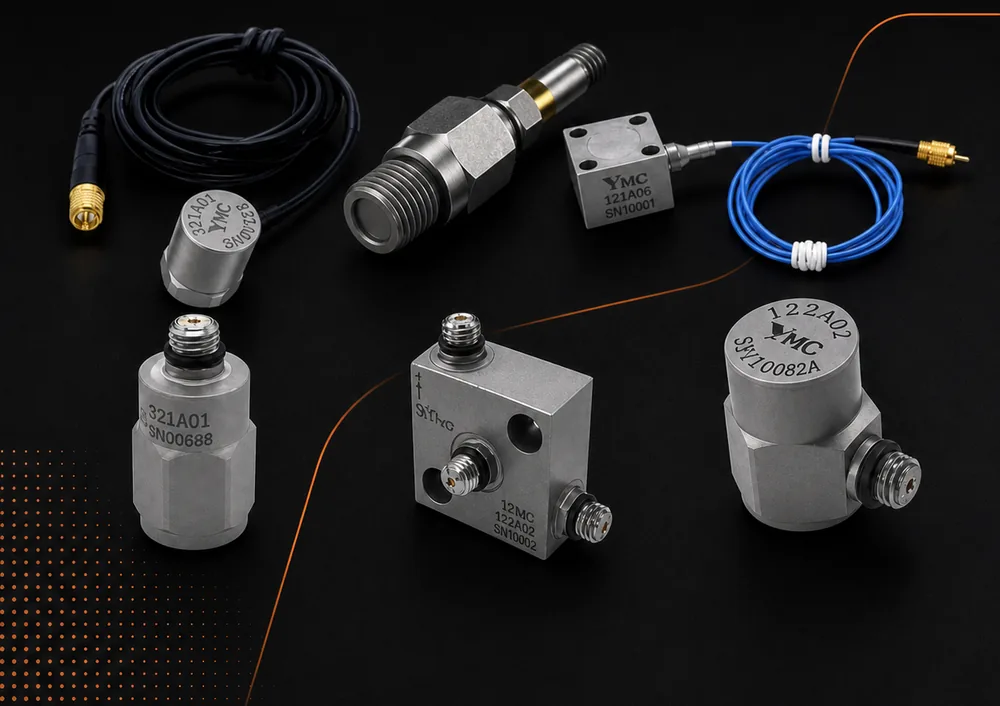

Quartz Dynamic Pressure Sensor
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
YMC 611P series quartz dynamic pressure sensors with IEPE amplified output are used for a variety of dynamic pressure measurements. They suit continuous operation in dirty environments, underwater, and field test applications across long cables.
YMC 611P series quartz dynamic pressure sensors with IEPE amplified output are used for a variety of dynamic pressure measurements. Read more
They suit continuous operation in dirty environments, underwater, and field test applications across long cables.Specifications
| Measuring range | 0 – 60 MPa pk |
|---|---|
| Sensitivity | 100 – 1000 pC/MPa (charge); 83.5 mV – 5 V per MPa (IEPE) |
| Resonant frequency | 80 – 150 kHz |
| Resolution | 0.015 kPa (IEPE) |
| Response | Micro-second |
| Temperature range | -54 ~ +150 °C (charge, to +250 °C available) |
Quartz dynamic pressure sensors
| Parameter | Unit | 601P01 | 601P30 | 601P60 | 611P01 | 611P30 | 611P60 |
|---|---|---|---|---|---|---|---|
| Sensitivity | 1000 pC/MPa | 100 pC/MPa | 100 pC/MPa | 5.0 V/MPa | 167 mV/MPa | 83.5 mV/MPa | |
| Measuring range | MPa pk | 0 ~ 1 MPa | 0 ~ 30 MPa | 0 ~ 60 MPa | 0 ~ 1 MPa | 0 ~ 30 MPa | 0 ~ 60 MPa |
| Non-linearity | % F.S. | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Resonant frequency | kHz | 80 | 150 | 150 | 80 | 150 | 150 |
| Temperature range | °C | -54 ~ +150 | -54 ~ +150 | -54 ~ +150 | -40 ~ +121 | -40 ~ +121 | -40 ~ +121 |
| Resolution | kPa | — | — | — | 0.015 | 0.015 | 0.015 |
| Minimum frequency | Hz | 1 | 1 | 1 | 1 | 1 | 1 |
| Output connector | M5 | M5 | M5 | M5 | M5 | M5 | |
| Size | mm | Φ14×33 | Φ14×29 | Φ14×29 | Φ14×33 | Φ14×29 | Φ14×29 |
| Mounting | M10×1 | M10×1 | M10×1 | M10×1 | M10×1 | M10×1 | |
| Weight | g | 15 | 15 | 15 | 15 | 15 | 15 |
Models covered
YMC 611P series quartz dynamic pressure sensors with IEPE amplified output are used for a variety of dynamic pressure measurements. They suit continuous operation in dirty environments, underwater, and field test applications across long cables. For higher-temperature applications the 601P charge-output sensors are available for use up to +250 °C.
Features
- Fast, micro-second response time
- Resonant frequency to ≥100 kHz
- Measures small pressure changes at high static pressure levels
- Operating temperature range from -40 to +250 °C (charge mode)
- Rugged solid-state construction withstands shock and vibration to thousands of g
- IEPE amplified output transmits through long ordinary coaxial cable without loss of signal strength or increase in noise
Typical applications
- Combustion and blast pressure measurement
- Hydraulic and pneumatic pulsation
- Underwater and dirty-environment pressure testing
Supplied and supported in India by TIERA, authorised distributor for YMC. Pricing and lead time on request — tell us the model and the measurement, and we will confirm the right part number.
