Portable Vibration Calibrator
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
YMC portable vibration calibrators come in a hand-held form (VC-01 / VC-01A) and a portable case form with continuous frequency and amplitude tuning (VC-02 / VC-02A).
YMC portable vibration calibrators come in a hand-held form (VC-01 / VC-01A) and a portable case form with continuous frequency and amplitude tuning (VC-02 / VC-02A).
Specifications
| Reference | 159.2 Hz, 1 g rms (VC-01) — the classic field reference |
|---|---|
| Frequency range | 10 Hz ~ 10 kHz (VC-02 series) |
| Acceleration | 0 ~ 5.0 g rms |
| Velocity / displacement | 0 ~ 150 mm/s; 0 ~ 1,500 µm |
| Sensor types | PE, IEPE, voltage and 4-20 mA |
| Portability | Hand-held 500 g, or 6 kg field case |
Portable vibration calibrators
| Parameter | VC-01 | VC-01A | VC-02 | VC-02A |
|---|---|---|---|---|
| Acceleration Arms (g) | 1 | 0.1, 0.5, 1.0 | 0 ~ 5.0 | 0 ~ 5.0 |
| Velocity Vrms (mm/s) | 10 | 0 ~ 10 | 0 ~ 150 | 0 ~ 150 |
| Displacement Drms (µm) | 10 | 0 ~ 10 | 0 ~ 1,500 | 0 ~ 1,500 |
| Sensor type | — | — | PE, IEPE, voltage, 4-20 mA | PE, IEPE, voltage, 4-20 mA |
| Frequency (Hz) | 159.2 | 80, 159.2, 1000 | 10 ~ 10k | 10 ~ 10k |
| Output wave | Sine | Sine | Sine | Sine |
| Wave distortion | ≤5 % | ≤5 % | ≤5 % | ≤5 % |
| Display screen | — | OLED | LCD | Touch FTF |
| Load (g) | 20 ~ 120 | 20 ~ 200 | 200 | 200 |
| Power supply | 9 VDC rechargeable battery | 9 VDC rechargeable battery | 220 V 50 Hz 0.1 A | 220 V 50 Hz 0.1 A or 12 VDC rechargeable battery |
| Temperature (°C) | 0 ~ +55 | 0 ~ +55 | 0 ~ +55 | 0 ~ +55 |
| Size (mm) | Φ52×152 | Φ52×152 | 300L×210W×130H | 335L×260W×220H |
| Weight (g) | 500 | 500 | 6,500 | 6,000 |
| Mounting | M5 stud | M5 stud | M5 stud | M5 stud |
YMC portable vibration calibrators come in a hand-held form (VC-01 / VC-01A) and a portable case form with continuous frequency and amplitude tuning (VC-02 / VC-02A). They verify accelerometers, velocity sensors, eddy-current sensors, vibration instruments and the data acquisition systems built from them.
Typical applications
- Rapid field check of transducer sensitivity
- Verifying the integrity of a measurement chain before a survey
- Laboratory and industrial-field calibration of vibration instruments
Models
YMC VC-01 — Hand-held calibrator
Mini hand-held with built-in battery; small and light; fully independent calibration reference source (159.2 Hz, 1 g rms); automatic battery voltage detection and automatic shutdown (50 s). Used for rapid determination of acceleration, velocity and displacement transducer sensitivity, and rapid judgement of measurement-system integrity.
YMC VC-01A — Hand-held calibrator, presettable
Improved model with a variety of frequencies and vibration amplitudes that can be preset, and an OLED real-time display of frequency and amplitude.

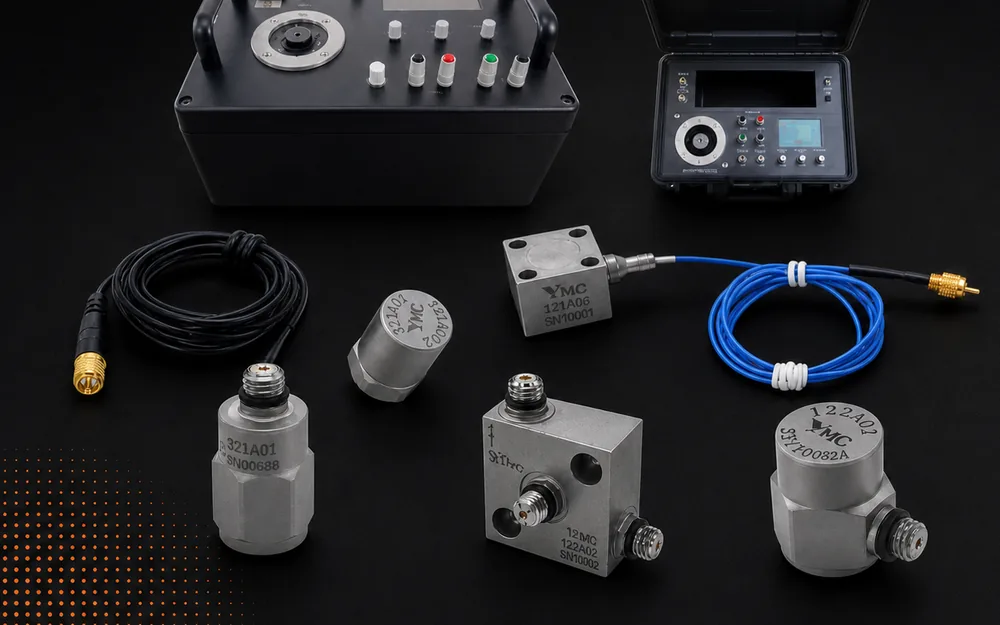

YMC VC-02 — Portable calibrator
Consists of shaker, standard sensor, signal generator, power amplifier, signal conditioner and digital control display. Small volume, stable and solid structure, high precision, simple operation. A full-featured, cost-effective vibration calibrator for laboratory or industrial field; it calibrates accelerometers, magnetoelectric velocity sensors and eddy sensors, as well as the vibration instruments and data acquisition systems composed of them.
YMC VC-02A — Portable calibrator, touch screen
Improved model with touch-screen true-colour FTF display, built-in rechargeable battery, small size and easy to carry — suitable for field site testing and calibration.
Individual models already listed separately: vc-01-portable-vibration-calibrator.
Supplied and supported in India by TIERA, authorised distributor for YMC. Pricing and lead time on request — tell us the model and the measurement, and we will confirm the right part number.
