Mounting Studs with Flange
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
Flanged mounting studs give a wider seating face than a plain stud and are available electrically insulated, which breaks the ground loop between a case-grounded sensor and the machine.
Flanged mounting studs give a wider seating face than a plain stud and are available electrically insulated, which breaks the ground loop between a case-grounded sensor and the machine.
Specifications
| Size | Φ20×3 mm (customised available) |
|---|---|
| Threads | M5/M5, M5/10-32, M5/M6, M5/M8 and others |
| Insulation | ≥10⁸ Ω on AG003 and A004 |
| Materials | Stainless steel or anodised aluminium |
| Use | Wider seating face; ground-loop isolation |
Mounting studs with flange — A003 ~ A/B; AG003 ~ A/B; A004 ~ A/B
| Code | Size (mm) | Mounting thread A/B | Insulation | Material |
|---|---|---|---|---|
| A003 | Φ20×3 (customised) | M5/M5, M5/10-32, M5/M6, M5/M8 etc. selectable | — | Stainless steel |

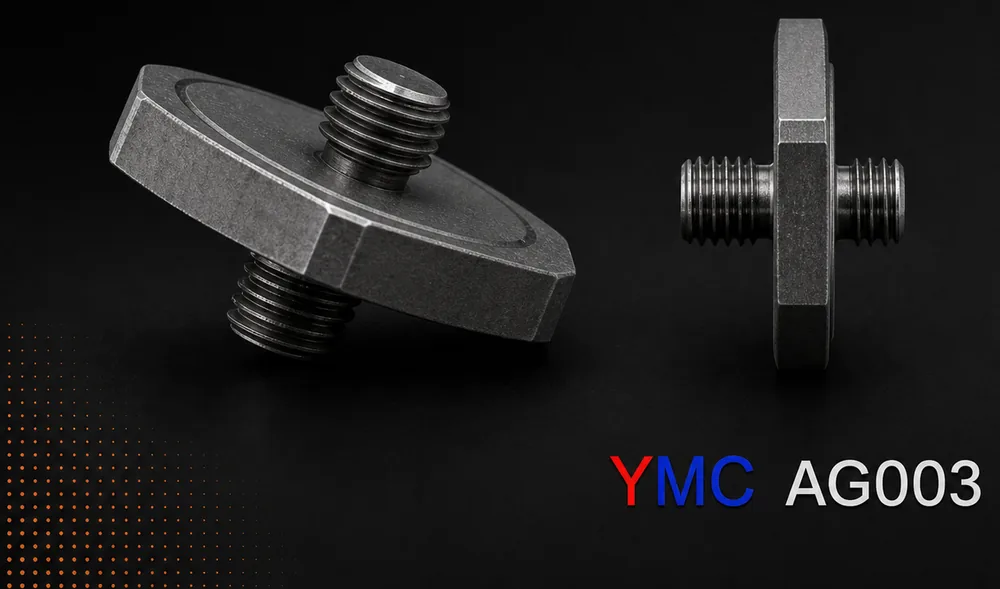

| AG003 | Φ20×3 (customised) | M5/M5, M5/10-32, M5/M6, M5/M8 etc. selectable | ≥10⁸ Ω | Stainless steel |
| A004 | Φ20×3 (customised) | M5/M5, M5/10-32, M5/M6, M5/M8 etc. selectable | ≥10⁸ Ω | Anodized aluminium |

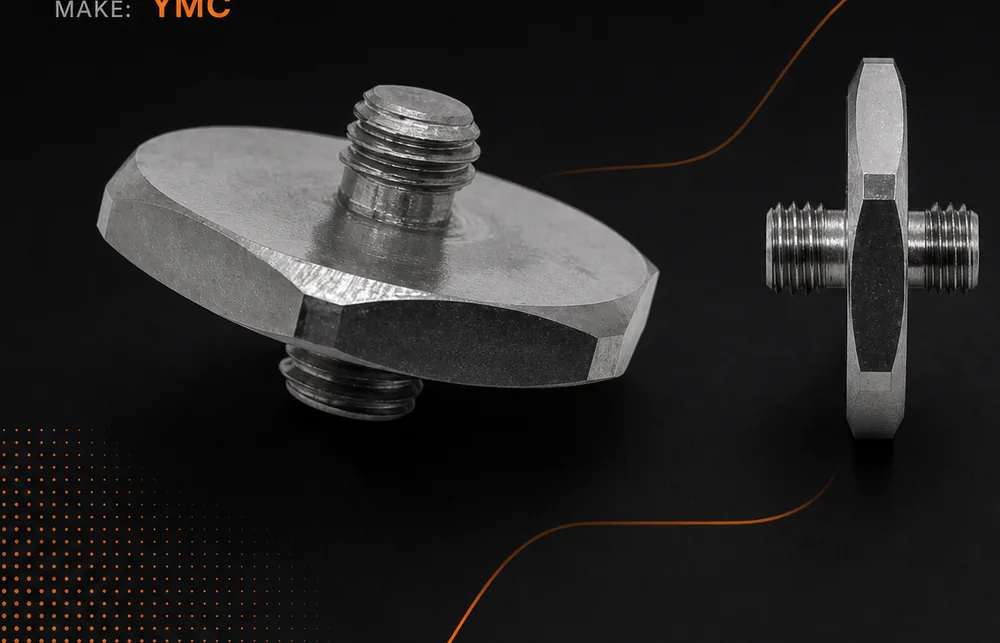

Flanged mounting studs give a wider seating face than a plain stud and are available electrically insulated, which breaks the ground loop between a case-grounded sensor and the machine. A003 is plain stainless steel; AG003 is insulated stainless steel; A004 is insulated anodised aluminium.
Typical applications
- Mounting where a wider seating face is wanted
- Breaking ground loops between sensor and machine
Supplied and supported in India by TIERA, authorised distributor for YMC. Pricing and lead time on request — tell us the model and the measurement, and we will confirm the right part number.
