Insulated Magnets
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
Electrically insulated magnetic mounts in plane (flat surface) and curved (shaft, pipe, motor housing) forms, from 50 N to 300 N pull force. Insulation ≥10⁸ Ω breaks the ground loop between a case-grounded sensor and the machine.
Electrically insulated magnetic mounts in plane (flat surface) and curved (shaft, pipe, motor housing) forms, from 50 N to 300 N pull force. Read more
Insulation ≥10⁸ Ω breaks the ground loop between a case-grounded sensor and the machine.Specifications
| Pull force | 50 N to 300 N |
|---|---|
| Forms | Plane (B001) and curved (B002) |
| Insulation | ≥10⁸ Ω |
| Max. sensor weight | 20 g to 250 g by size |
| Threads | M5, M6, 1/4-28, M10×1.5 |
| Caveat | Compliant mount — check usable band against mount resonance |
Insulated magnets
| Code | Force | Size (mm) | Insulation | Max. sensor weight |
|---|---|---|---|---|

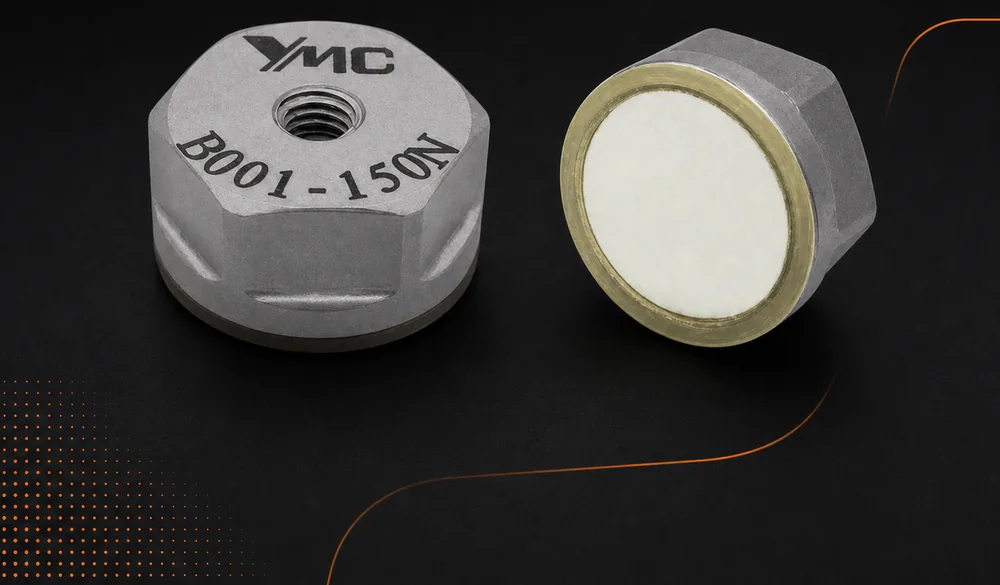

| B001-50N (plane) | 50 N | Φ13.2×10-M5 (female) | ≥10⁸ Ω | <20 g |
| B001-100N (plane) | 100 N | Φ18.8×10-M5 (female) | ≥10⁸ Ω | <50 g |
| B001-150N (plane) | 150 N | Φ24.5×12-M6 (female) | ≥10⁸ Ω | <100 g |

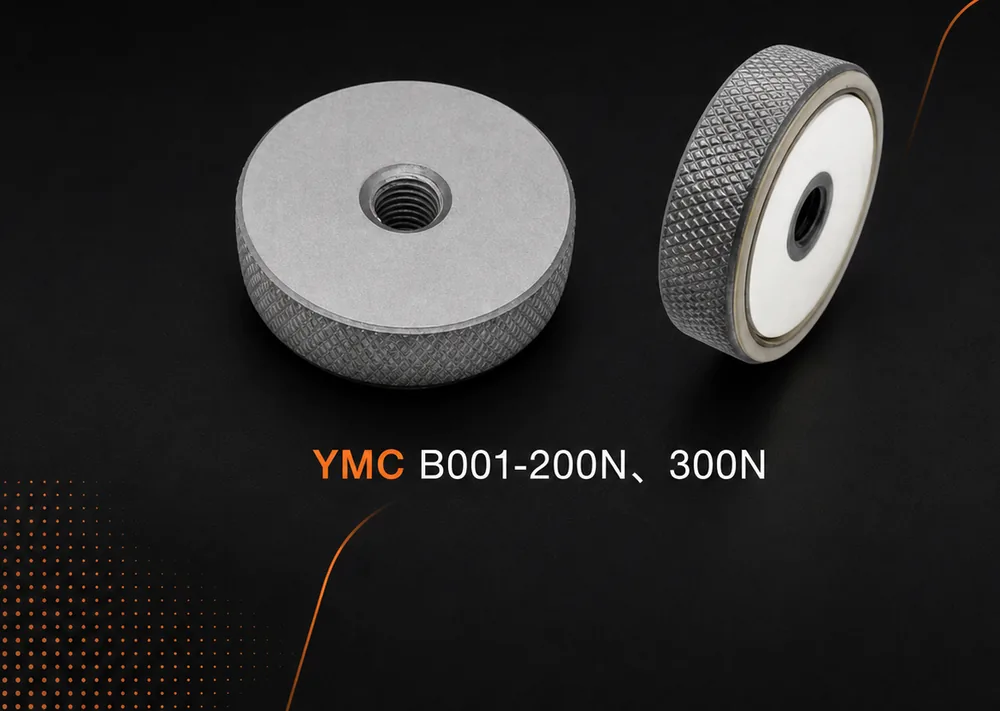

| B001-200N (plane) | 200 N | Φ30×10-1/4-28 (thru-hole) | ≥10⁸ Ω | <150 g |
| B001-300N (plane) | 300 N | Φ40×12-M6 (thru-hole) | — | <200 g |

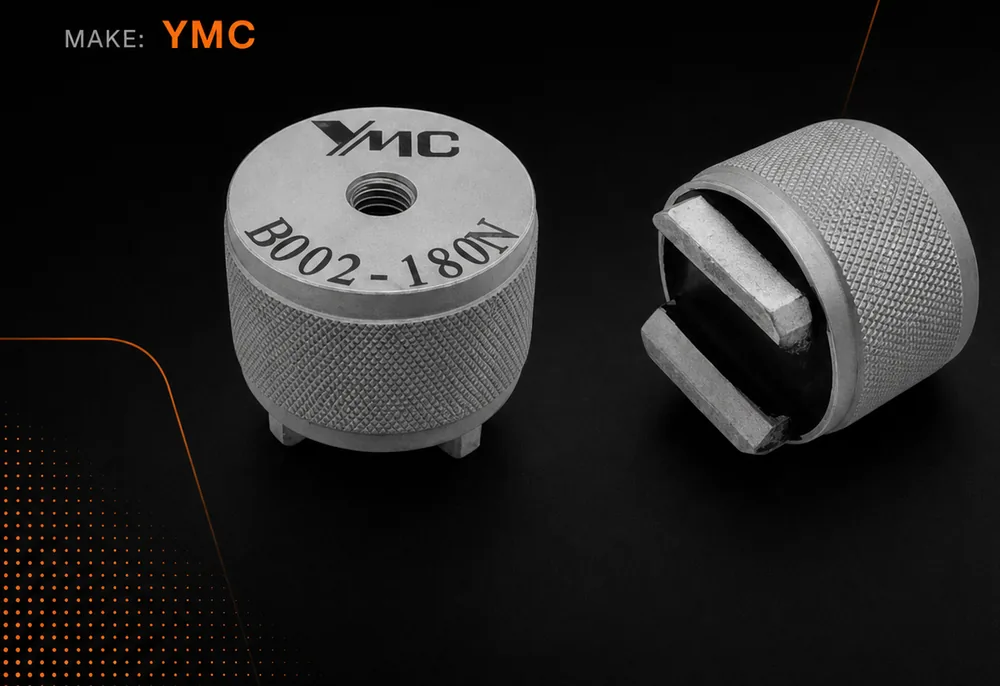

| B002-150N (curved) | 150 N | Φ26×26-M6 (female) | ≥10⁸ Ω | <100 g |
| B002-180N (curved) | 180 N | Φ30×25-1/4-28 (female) | ≥10⁸ Ω | <150 g |
| B002-220N (curved) | 220 N | Φ38×25-M10×1.5 (male) | ≥10⁸ Ω | <200 g |
| B002-300N (curved) | 300 N | Φ40×25-M10×1.5 (male) | ≥10⁸ Ω | <250 g |
Electrically insulated magnetic mounts in plane (flat surface) and curved (shaft, pipe, motor housing) forms, from 50 N to 300 N pull force. Insulation ≥10⁸ Ω breaks the ground loop between a case-grounded sensor and the machine. Each size states the maximum sensor weight it will hold.
Typical applications
- Route-based data collection on flat and curved surfaces
- Temporary sensor attachment during surveys
- Isolated mounting on grounded machines
A note on measurement
A magnet is a compliant mount. Its own mount resonance sits well below a stud mount’s, and the response is not flat below that resonance — it rises. Confirm the usable band against the magnet’s stated resonance before trusting high-frequency bearing data taken on a magnet.
Supplied and supported in India by TIERA, authorised distributor for YMC. Pricing and lead time on request — tell us the model and the measurement, and we will confirm the right part number.
