Mounting Blocks
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
Uniaxial and triaxial mounting blocks for adhesive or stud attachment.
Uniaxial and triaxial mounting blocks for adhesive or stud attachment.
Specifications
| Forms | Uniaxial pad and triaxial cube |
|---|---|
| Sizes | Φ20×5 / Φ20×10 pads; 20 mm and 30 mm cubes |
| Threads | M5, 10-32 and others, female |
| Insulation | ≥10⁸ Ω on EG and A004-class parts |
| Materials | Stainless steel, anodised aluminium, POM |
| Attachment | Adhesive or stud |
Uniaxial mounting blocks
| Code | Size (mm) | Mounting type | Insulation | Material |
|---|---|---|---|---|

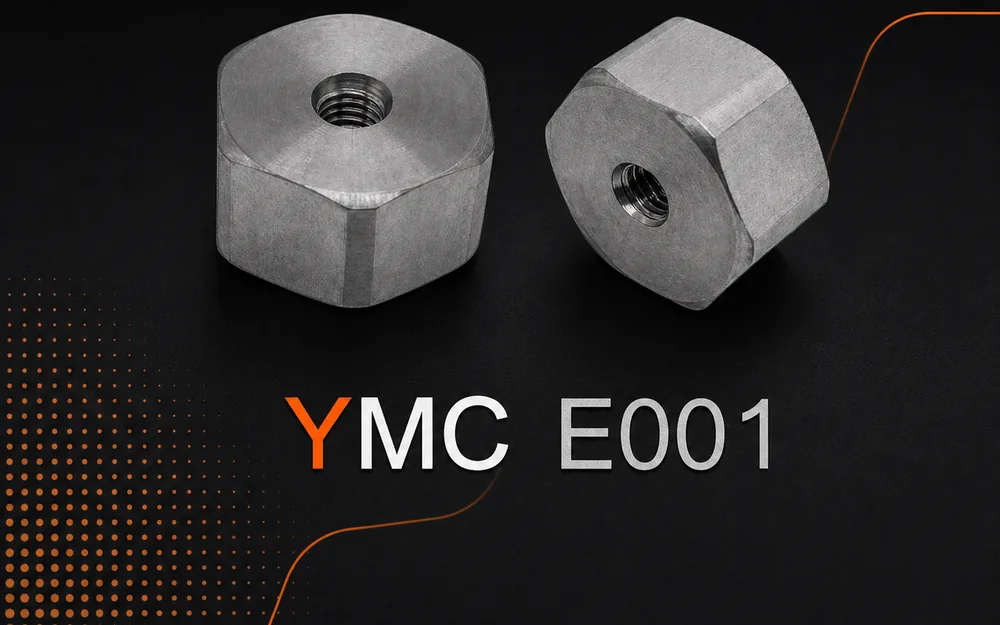

| E001 | Φ20×10-M5 (selectable, female thread) | Adhesive / stud | — | Stainless steel |
| EG001 | Φ20×10-M5 (selectable, female thread) | Adhesive / stud | ≥10⁸ Ω | Anodized aluminium |
| E002 | Φ20×5-M5 (selectable) | Adhesive | — | Stainless steel |
| EG002 | Φ20×5-M5 (selectable) | Adhesive | ≥10⁸ Ω | Anodized aluminium |
Triaxial mounting blocks
| Code | Size (mm) | Mounting thread | Insulation | Material |
|---|---|---|---|---|

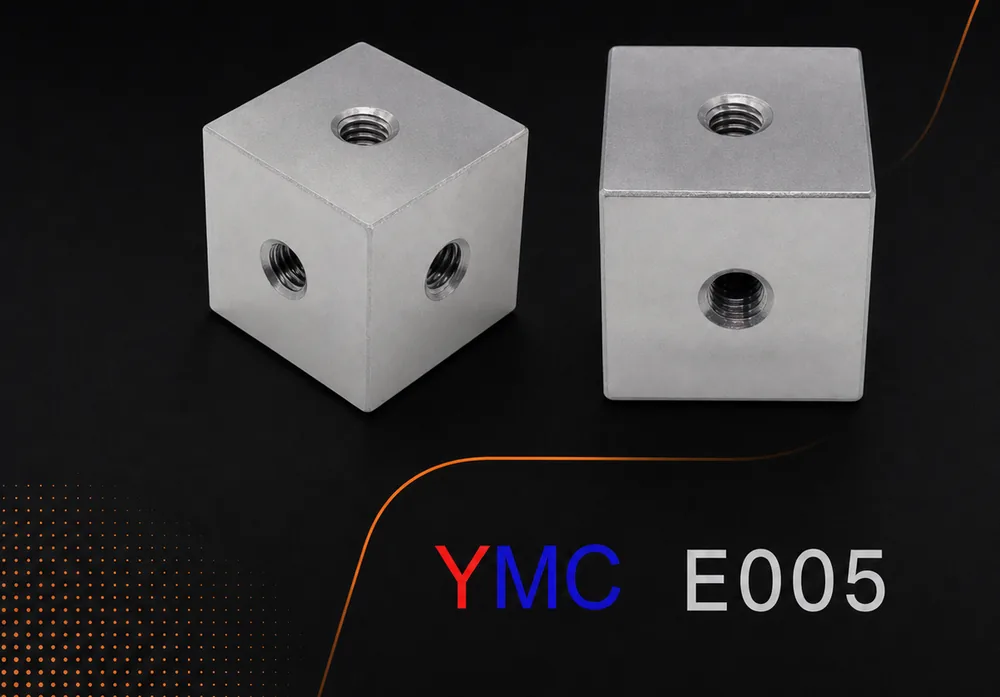

| EG003 | 20×20×20 or 30×30×30 selectable | M5, 10-32 etc. selectable, female thread | ≥10⁸ Ω | Anodized aluminium |
| EG004 | 20×20×20 or 30×30×30 selectable | M5, 10-32 etc. selectable, female thread | ≥10⁸ Ω | Polyformaldehyde (POM) |
| E005 | 20×20×20 or 30×30×30 selectable | M5, 10-32 etc. selectable, female thread | — | Stainless steel |
Uniaxial and triaxial mounting blocks for adhesive or stud attachment. The triaxial cubes carry a tapped hole on three mutually perpendicular faces so a single-axis sensor can be moved between H, V and A without re-preparing the surface — or so three sensors can share one seating. Insulated versions (anodised aluminium and POM) break the ground loop.
Typical applications
- Adhesive mounting of accelerometers on prepared surfaces
- Triaxial measurement from one seating point
- Electrically isolated mounting
Supplied and supported in India by TIERA, authorised distributor for YMC. Pricing and lead time on request — tell us the model and the measurement, and we will confirm the right part number.
