Modal Shaker
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.

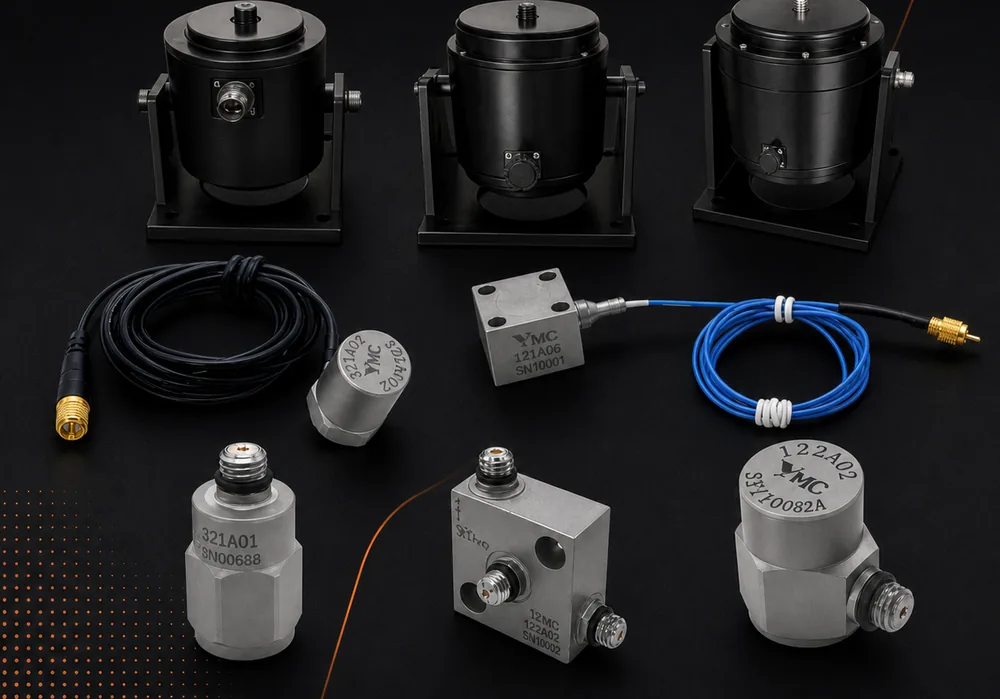

YMC MS series modal shakers are designed for demanding modal testing. The MS series permanent-magnet modal shakers provide precise, reliable, stable and long-lasting operation.
YMC MS series modal shakers are designed for demanding modal testing. The MS series permanent-magnet modal shakers provide precise, reliable, stable and long-lasting operation.
Specifications
| Rated force | 20 – 1500 N pk |
|---|---|
| Max. displacement | ±5 – ±15 mm pk-pk |
| Frequency range | DC – 6 kHz |
| Excitation | Permanent magnet, attached (stinger) method |
| Modal support | SISO, MISO, SIMO and MIMO |
| Weight | 3.3 – 50 kg |
Modal shakers
| Parameter | MS-20 | MS-50 | MS-100 | MS-200 | MS-500 | MS-1000 | MS-1500 |
|---|---|---|---|---|---|---|---|
| Rated force (N pk) | ≥20 | ≥50 | ≥100 | ≥200 | ≥500 | ≥1000 | ≥1500 |
| Max. displacement pk-pk (mm) | ±5 | ±7.5 | ±10 | ±10 | ±12.5 | ±15 | ±15 |
| Max. input current (Arms) | ≤2.0 | ≤6 | ≤12 | ≤20 | ≤25 | ≤38 | ≤45 |
| Frequency range (Hz) | DC ~ 6k | DC ~ 5k | DC ~ 4k | DC ~ 4k | DC ~ 3k | DC ~ 1.5k | DC ~ 1k |
| Coil DC impedance | 6.0 Ω | 0.7 Ω | 0.7 Ω | 0.7 Ω | 0.7 Ω | 0.7 Ω | 0.7 Ω |
| Effective moving mass (kg) | 0.1 | 0.30 | 0.5 | 0.67 | 0.95 | 2.0 | 2.5 |
| Size (mm) | Φ78×115 | Φ148×200 | Φ168×200 | Φ168×200 | Φ208×239 | Φ244×294 | Φ280×319 |
| Mounting hole size (mm) | 80×80, 4-Φ8 | 158×128, 4-Φ10 | 200×160, 4-Φ10 | 200×160, 4-Φ10 | 240×190, 4-Φ11 | 240×200, 4-Φ11 | 260×240, 4-Φ11 |
| Weight (kg) | 3.3 | 14 | 18 | 18 | 29 | 40 | 50 |
| Output connector | Rod / M5 | Rod / M5 | Rod / M5 | Rod / M5 | Rod / M5 | Rod / M5 | Rod / M8 |
| Associated amplifier | 100 W | 100 W | 200 W / 500 W | 500 W / 800 W | 500 W / 800 W | 1500 W | 3000 W |
Models covered
YMC MS series modal shakers are designed for demanding modal testing. The MS series permanent-magnet modal shakers provide precise, reliable, stable and long-lasting operation. Highest quality materials, stringent quality control and rugged construction assure a versatile means of modal excitation for any experimental modal test using the attached excitation method. Based on years of practical modal test experience, the line — all exhibiting a high force-to-weight ratio — has been developed to ensure the best possible modal test performance with minimum setup time.
Typical applications
- General mechanical mobility measurements
- Experimental modal analysis on most mechanical structures
- SISO, MISO, SIMO and MIMO modal test applications
- Advanced structural dynamics investigations
- Structural damage detection
- Finite element model correlation
Optional accessories
- Hard and soft rod (stinger)
- Bracket
- Air cooling device
- Holding device
Supplied and supported in India by TIERA, authorised distributor for YMC. Pricing and lead time on request — tell us the model and the measurement, and we will confirm the right part number.
