Signal Generator
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
YMC signal generators drive modal shakers and small vibrators. The SG-01 is a swept signal generator with a built-in 60 W power output; the 9200 is a USB-powered digital signal generator whose waveform is defined by software.
YMC signal generators drive modal shakers and small vibrators. Read more
The SG-01 is a swept signal generator with a built-in 60 W power output; the 9200 is a USB-powered digital signal generator whose waveform is defined by software.Specifications
| Waveforms | Sine, triangle, square, white noise (SG-01); software-defined (9200) |
|---|---|
| Frequency range | 2 Hz – 20 kHz (SG-01); DC – 30 kHz (9200) |
| Output | ±10 Vp-p; 60 W into 4 Ω on SG-01 |
| Sweep | Manual or automatic, log or linear |
| Channels | 2 (9200) |
| Interface | USB 2.0, self-powered (9200) |
YMC signal generators drive modal shakers and small vibrators. The SG-01 is a swept signal generator with a built-in 60 W power output; the 9200 is a USB-powered digital signal generator whose waveform is defined by software.
Typical applications
- Driving modal shakers and small vibrators
- Swept sine excitation for resonance search
- Arbitrary waveform generation for test rigs
Models

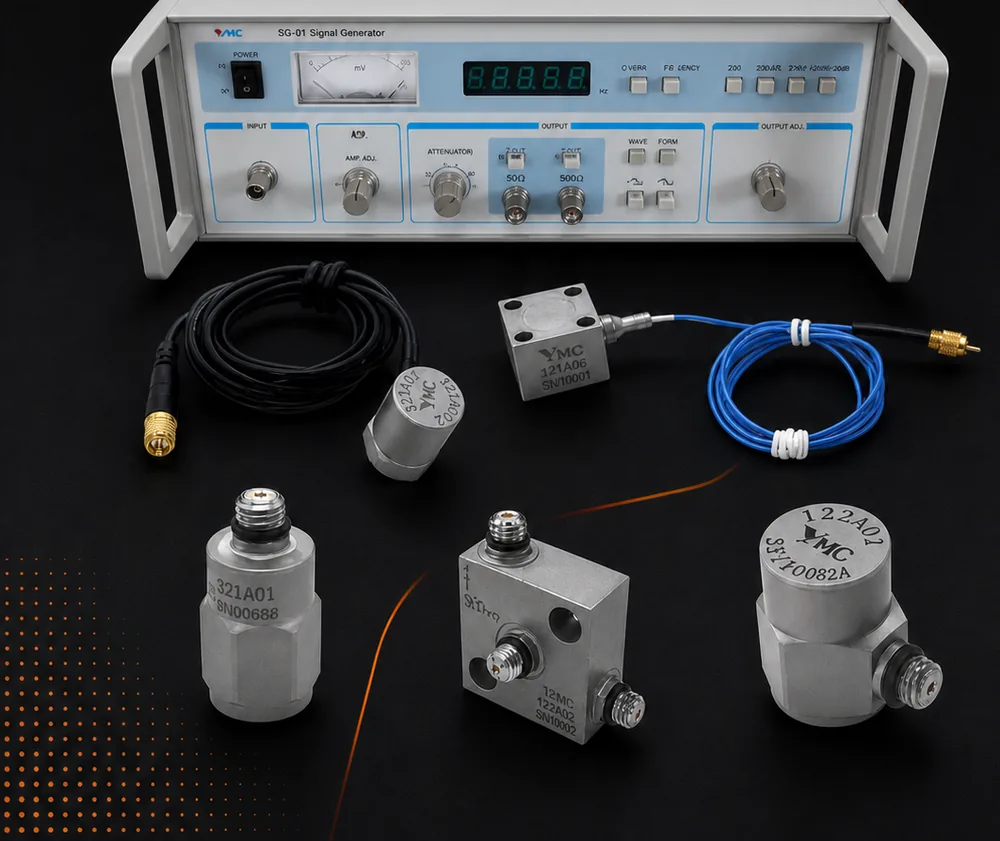

YMC SG-01 — Swept Signal Generator
- Output waveform: Sine, triangle wave, square wave, white noise
- Frequency range: 2 Hz to 2 kHz; 20 Hz to 20 kHz
- Power output: 60 W (4 Ω)
- Signal output: ±10 Vp-p
- Swept-frequency mode: Manual, automatic
- Operating mode: Log, linear
- Drives: MS-50 modal shaker and VT-50 small vibrator

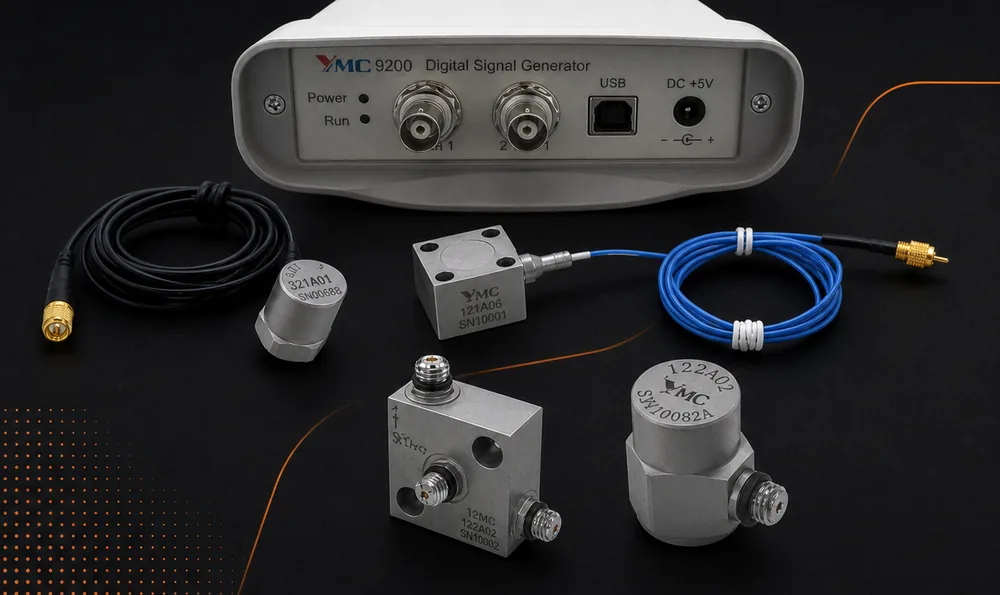

YMC 9200 — Digital Signal Generator
- Output wave: Defined waveform (set by software)
- Output channels: 2
- Frequency range: DC to 30 kHz
- Output amplitude: ±10 Vp-p
- DA conversion rate: 500 kHz
- Interface: USB 2.0
- Weight: 300 g
- Size: 100×122×45 mm
- Power supply: USB interface self-powering
Supplied and supported in India by TIERA, authorised distributor for YMC. Pricing and lead time on request — tell us the model and the measurement, and we will confirm the right part number.
