ANZEx Zone 0,1 Approved Sensors
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
CTC's ANZEx Zone 0,1 approved hazardous-rated accelerometers are engineered for vibration monitoring in environments where explosive atmospheres are present continuously or are likely to occur during normal operations.
CTC's ANZEx Zone 0,1 approved hazardous-rated accelerometers are engineered for vibration monitoring in environments where explosive atmospheres are present continuously or are likely to occur during… Read more
normal operations.Specifications
| Sensitivity (±10%) | 100 mV/g |
|---|---|
| Dynamic Range | ± 50 g, peak |
| Transverse Sensitivity | ≤5% |
| Settling Time | <3 Seconds |
| Voltage Source | 18-28 VDC |
| Constant Current Excitation | 2-10 mA |
| Output Impedance | <100 ohm |
| Bias Output Voltage | 10-14 VDC |
| Operating Temperature Range | -40 to 250 °F (-40 to 121 °C) |
| Maximum Shock Protection | 5,000 g, peak |
| Electromagnetic Sensitivity | CE |
| Sealing | Welded, Hermetic |
| Sensing Element | PZT Ceramic |
| Sensing Structure | Shear Mode |
| Case Material | 316L Stainless Steel |
| Connector (Non-Integral) | 2 Pin MIL-C-5015 |
| Mounting Torque | 2 to 5 ft. lbs. (2,7 to 6,8 Nm) |
| Calibration Certificate | CA10 |
Models in the ANZEx Zone 0,1 Approved Sensors family
| Part number | Description | Frequency Response (±3dB) | Frequency Response (±10%) | Mounting Thread | Mounting Hardware Supplied |
|---|---|---|---|---|---|
| AC990 | Nonincendive, Intrinsically Safe, ANZEx Zone 0,1, 2 Approved Accelerometer, Top Exit 2 Pin Connector, 100 mV/g, ±10% | 30-900,000 CPM (0,5-15000 Hz) | 60-600,000 CPM (1,0-10000 Hz) | 1/4-28 Blind Tapped Hole | 1/4-28 Stud (M6x1 or M8x1.25 Adapter Stud) |

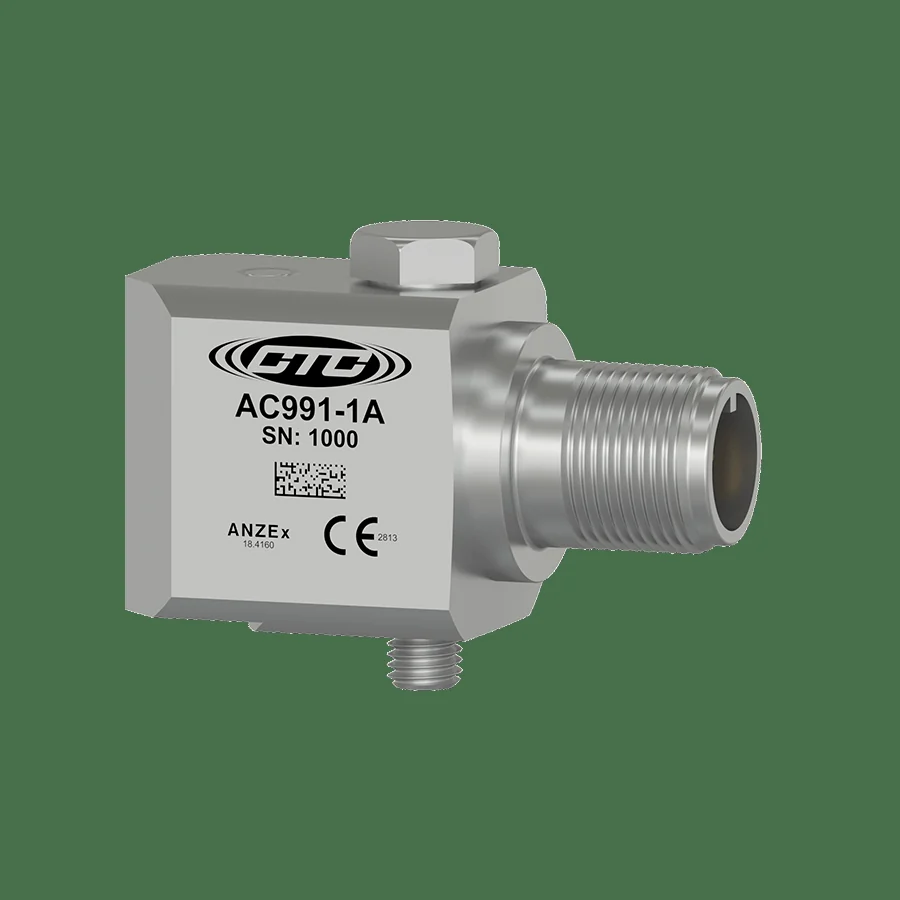

| AC991 | Nonincendive, Intrinsically Safe, ANZEx Zone 0,1 Approved Accelerometer, Side Exit 2 Pin Connector, 100 mV/g, ±10% | 30-516,000 CPM (0,5-8600 Hz) | — | 1/4-28 | 1/4-28 Captive Bolt (M6x1 Captive Bolt) |

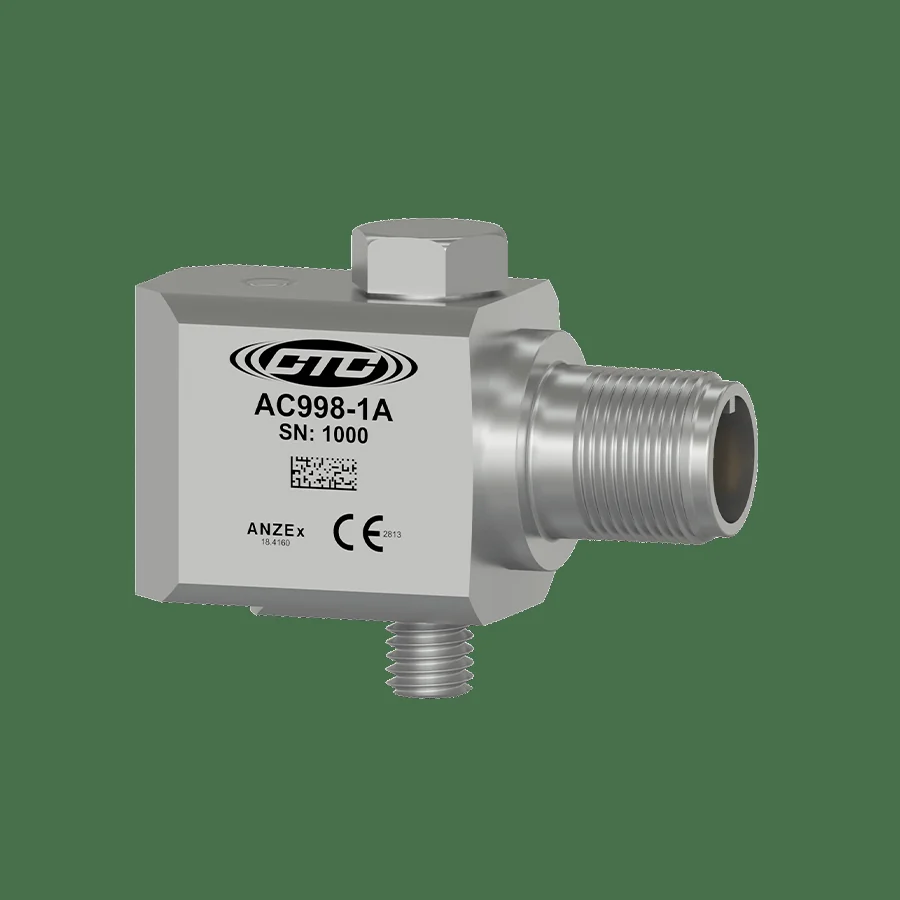

| AC998 | Nonincedive, Intrinsically Safe, ANZEx Zone 0,1 Approved Accelerometer, Side Exit 2 Pin Connector, M8x1.25 Captive Bolt, 100 mV/g, ±10% | 30-480,000 CPM (0,5-8000 Hz) | — | M8x1.25 Captive Bolt | M8x1.25 Captive Bolt |
Models covered
These accelerometers are certified under the ANZEx directive for Australia and New Zealand, ensuring compliance with stringent safety standards in high-risk industrial environments. ANZEx Zone 0,1 approved sensors are available in various configurations, including standard size top and side exit designs, to accommodate diverse application requirements. For optimal safety, the use of an intrinsic safety barrier is required when deploying these accelerometers in hazardous areas.
Choosing a part number
This family covers 3 part numbers. They share the specification in the Specs tab and differ in the details set out in the model table — most often the connector, the exit direction and the mounting thread. Tell us the machine and the measurement and we will confirm the part number.
Supply and support
Supplied and supported in India by TIERA, authorised distributor for CTC (Connection Technology Center, USA). Each unit ships with CTC’s own calibration certificate. Pricing and lead time on request.
