8 mm Hazardous-area Approved Proximity Probe Sets
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
CTC is proud to offer our 8 mm proximity probes systems, also known as eddy current probe systems, with optional hazardous area approvals Class 1 Division 1/Zone 1 and Class 1, Division 2.
CTC is proud to offer our 8 mm proximity probes systems, also known as eddy current probe systems, with optional hazardous area approvals Class 1 Division 1/Zone 1 and Class 1, Division 2.
Models in the 8 mm Hazardous-area Approved Proximity Probe Sets family
| Part number | Description | Sensitivity | Connector | Connector Pull Strength | Probe Connector |
|---|---|---|---|---|---|

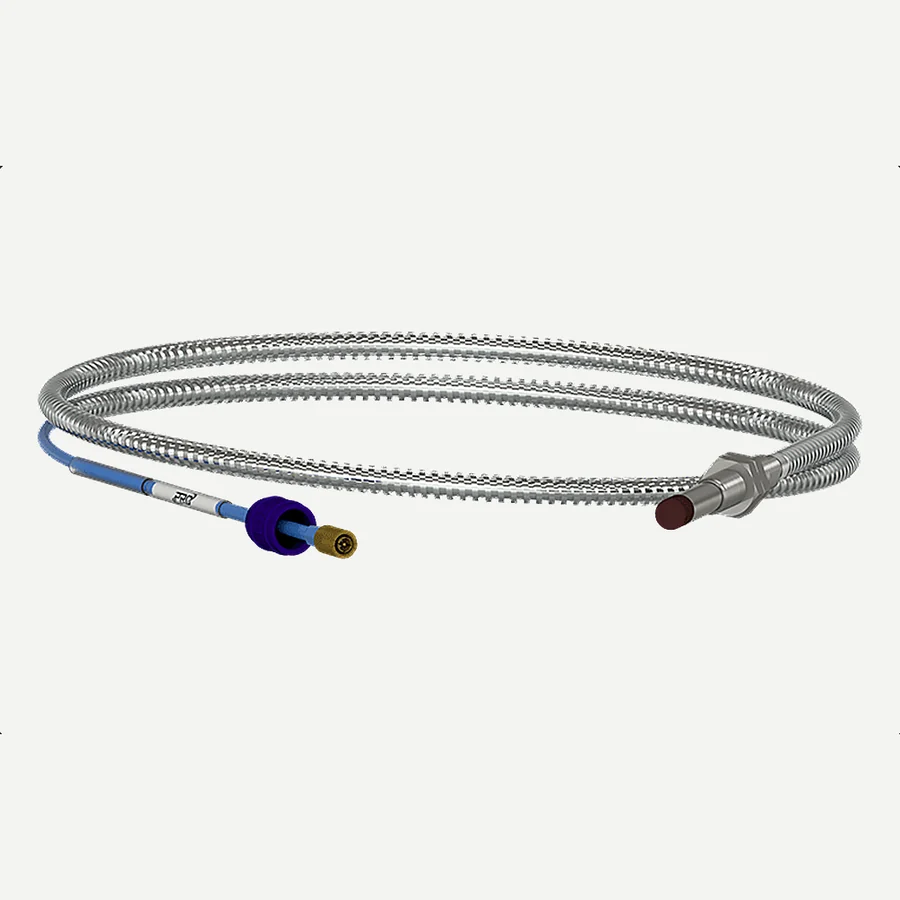

| Hazardous-Area Approved DP1001 | Intrinsically Safe 8 mm PRO Proximity Probes | -200 mV/mil (-7.87 V/mm) (1 mil = 0.001 in.) | SecureLock | Up to 30 lbs. | — |
| Hazardous-Area Approved DP1001 with Armor | Armored Intrinsically Safe 8 mm PRO Proximity Probes | -200 mV/mil (-7.87 V/mm) (1 mil = 0.001 in.) | SecureLock | Up to 30 lbs. | — |

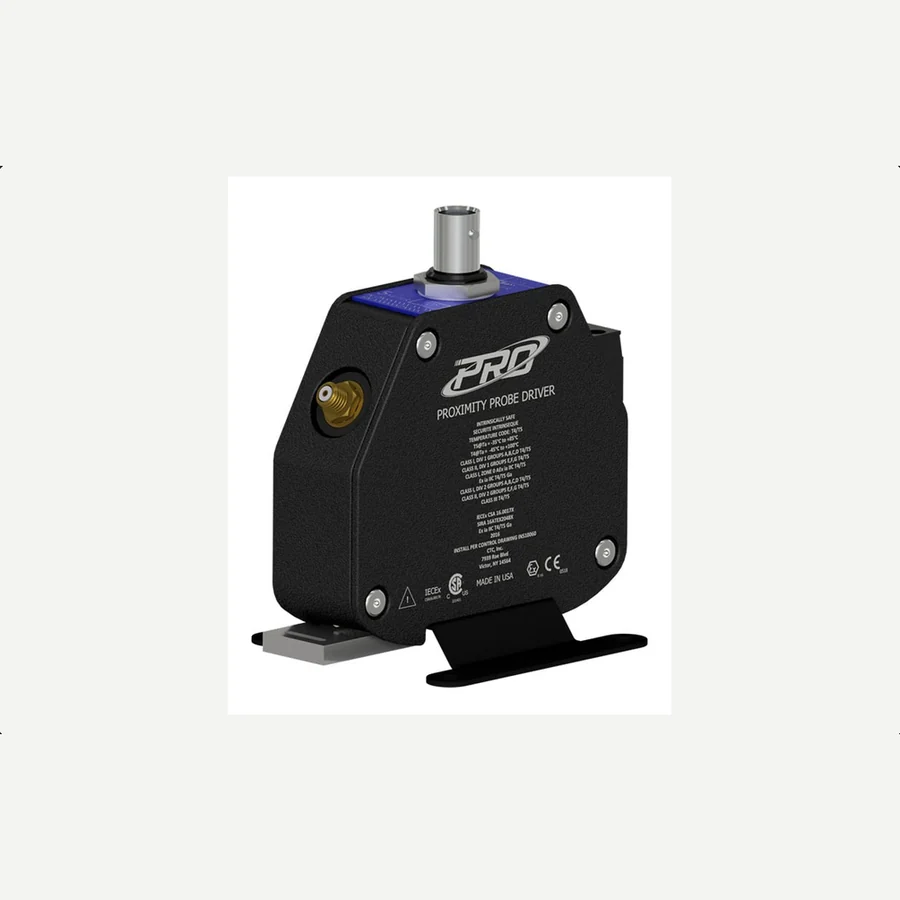

| Hazardous-Area Approved DD100170 | Intrinsically Safe Eddy Current Driver Compatible with 8 mm Proximity Probe Systems, 4-20 mA Output | — | — | — | SecureLock |
| Hazardous-Area Approved DD100180 | Intrinsically Safe Eddy Current Driver Compatible with 8 mm Proximity Probe Systems, Voltage Output | — | — | — | SecureLock |

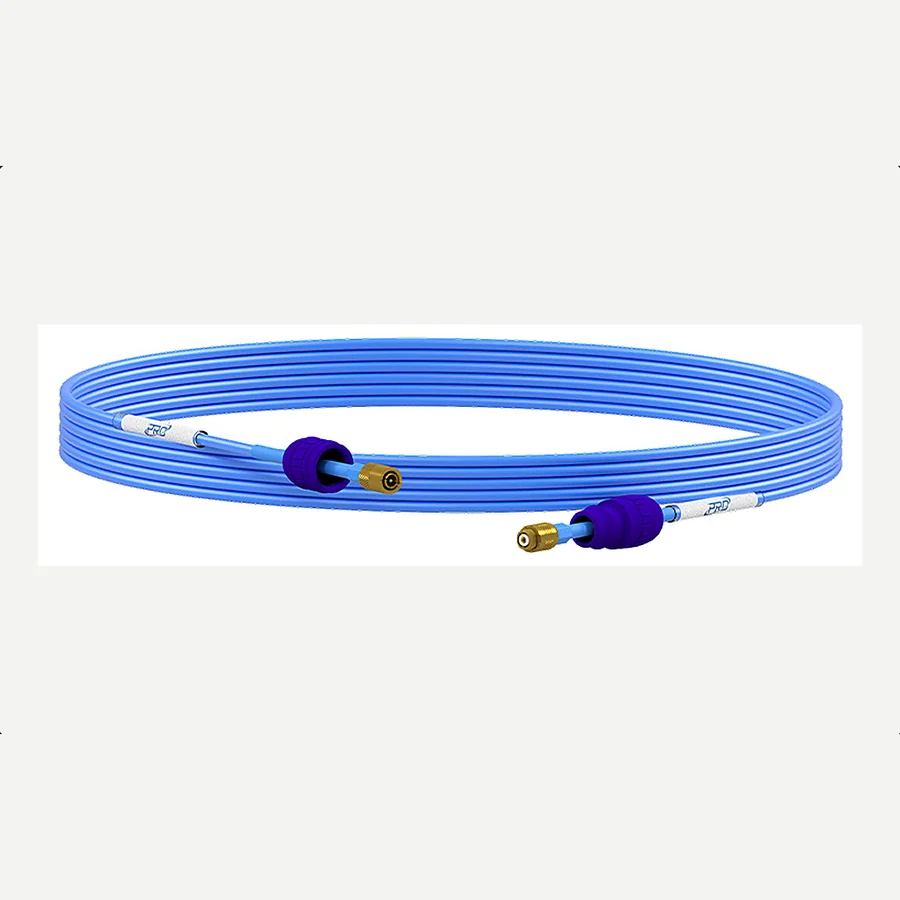

| Hazardous-Area Approved DC100130 | Intrinsically Safe 8 mm PRO Proximity Probe Extension Cable | — | SecureLock | Up to 30 lbs. | — |

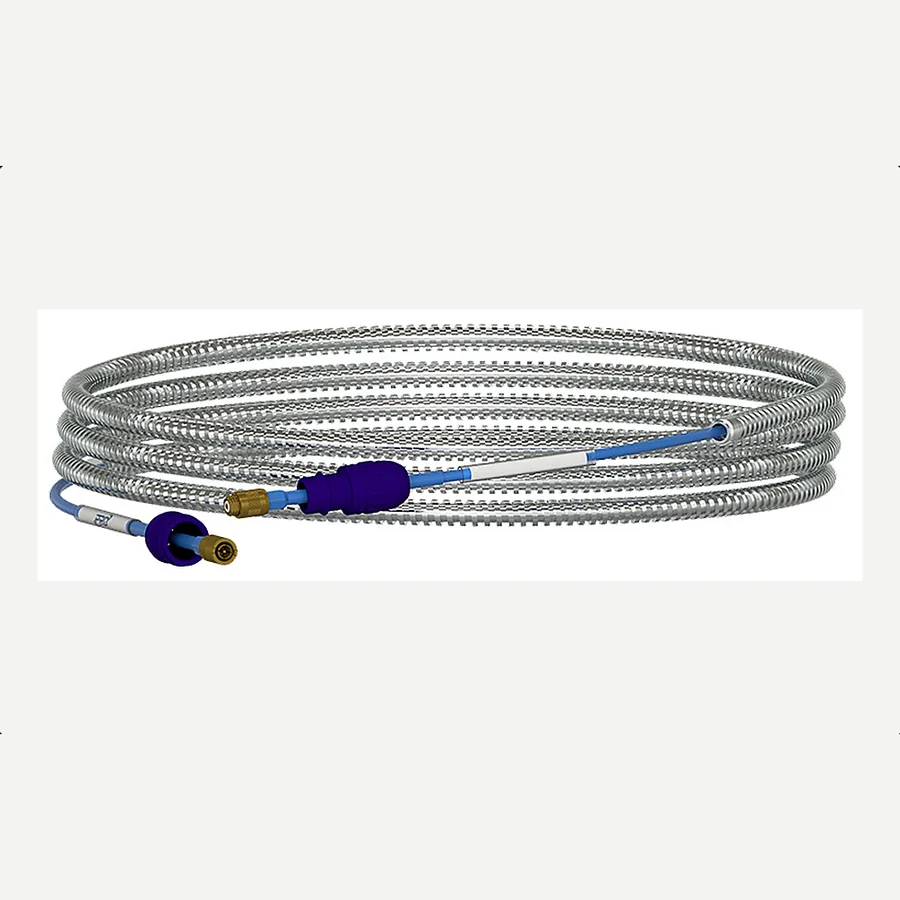

| Hazardous-Area Approved DC100130 with Armor | Intrinsically Safe 8 mm PRO Proximity Probe Extension Cable, with Armor Jacket | — | SecureLock | Up to 30 lbs. | — |
Models covered
These hazardous rated PRO Line proximity probes, extension cables, and drivers are designed to precisely measure shaft displacement on machinery with fluid film bearings. They are also fully compliant with American Petroleum Institute’s (API) 670 Standards. 8 mm proximity probes are used for monitoring displacement gaps of 10-90 mils, are available in overall allowable system lengths of 1 meter, 5 meters, and 9 meters, and are ideal for use in a wide variety of applications from compressors to turbines. Our hazardous-area approved 8 mm PRO Line proximity probe systems are the most durable and dependable on the market and are seamlessly compatible with all standard condition monitoring software, including Alta Solutions, Bently Nevada, TWave, and more. NEW - Custom Calibration Materials Looking for a unique custom calibration material? We can create a custom target for you. Requirements: » $2,500 NRE fee (discount exempt) » Customer must supply the material for CTC to machine (CTC will provide required dimensions once the project is initiated) » Initial order requirement of 10 proximity probe drivers calibrated to that target, with no MOQ on subsequent orders Contact [email protected] to get started with your custom calibration material. Please note - Class 1 Division 1/Zone 1 systems require the use of an intrinsically safe barrier, such as IS151-1B.
CTC also lists these same part numbers as 8 mm Hazardous-area Approved Proximity Probe Sets — one product range, catalogued more than once. The approvals and options are set out in the model table below.
Features
- Upgraded to include SecureLock connector
Choosing a part number
This family covers 6 part numbers. They share the specification in the Specs tab and differ in the details set out in the model table — most often the connector, the exit direction and the mounting thread. Tell us the machine and the measurement and we will confirm the part number.
Supply and support
Supplied and supported in India by TIERA, authorised distributor for CTC (Connection Technology Center, USA). Each unit ships with CTC’s own calibration certificate. Pricing and lead time on request.
