Multipurpose Magnets
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
Multipurpose magnets (also known as curved surface magnets) have magnet "legs" which create a concave or convex bottom designed to fit the contours of a curved machine surface. Curved surface magnets are ideal for applications where the machine surface is not flat, such as on a curved shaft or motor housing.
Multipurpose magnets (also known as curved surface magnets) have magnet "legs" which create a concave or convex bottom designed to fit the contours of a curved machine surface. Read more
Curved surface magnets are ideal for applications where the machine surface is not flat, such as on a curved shaft or motor housing.Models in the Multipurpose Magnets family
| Part number | Description | Sensor Mounting | Case Material | Max Temperature | Magnet Material | Availability |
|---|---|---|---|---|---|---|

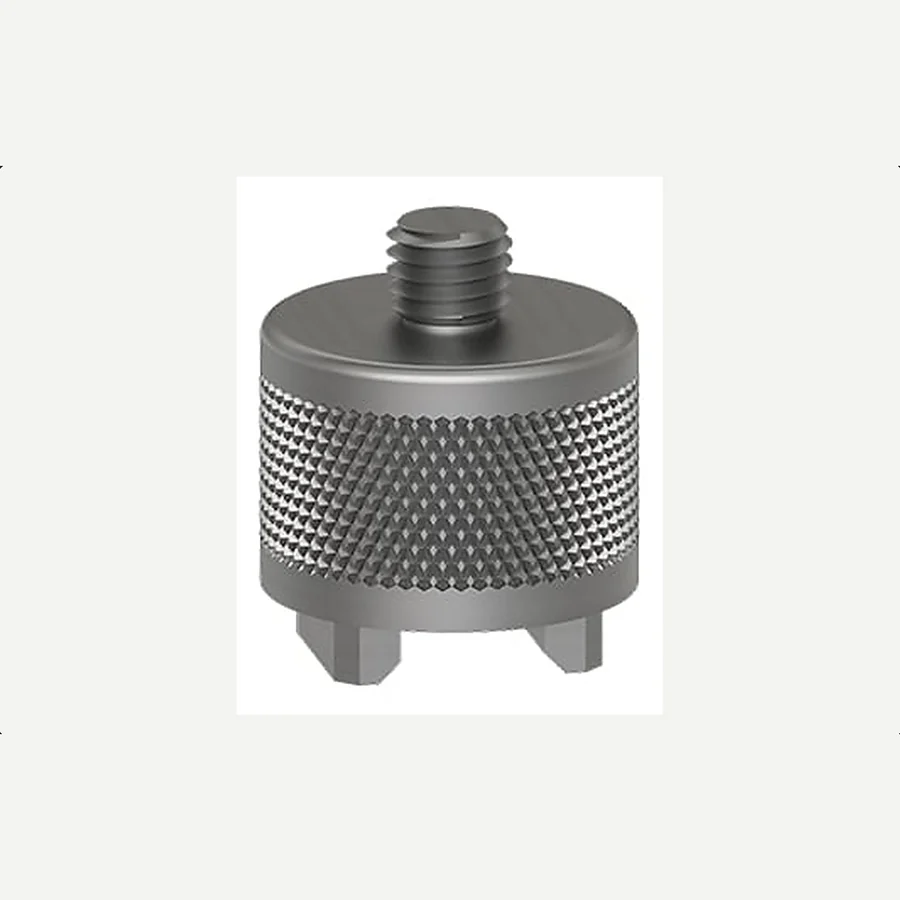

| MH112-1A | Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Integral Stud, 30 lbs. (14 kg) Pull Strength, 1 in. (25.4 mm) OD, 0.68 in. (17.27 mm) Height | 1/4-28 Integral Stud | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |

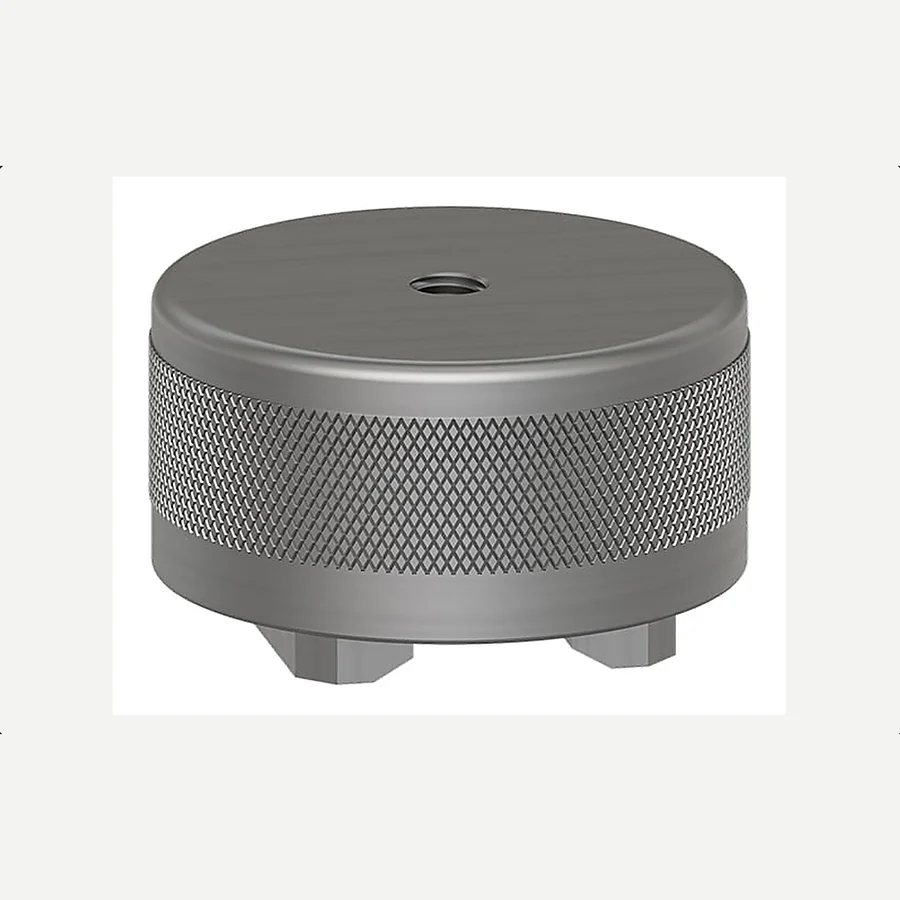

| MH114-3A | Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height | 1/4-28 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |
| MH114-3B | Electrically Isolated, Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height | 1/4-28 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Built to order |

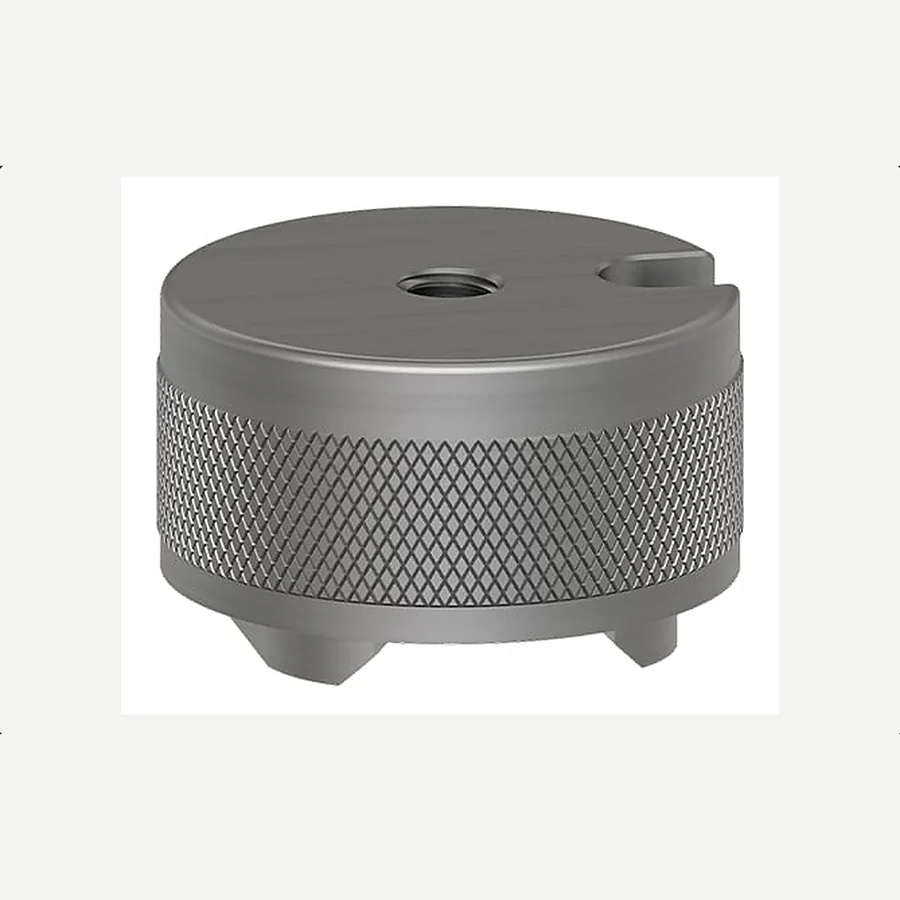

| MH114-3T | Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole and Triaxial Alignment Notch, 50 lbs. (23 kg) Pull Strength, 1.39 in. (35.31 mm) OD, 0.85 in. (21.59 mm) Height | 1/4-28 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |
| MH115-2A | Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 95 lbs. (43 kg) Pull Strength, 1.85 in. (46.99 mm) OD, 1.08 in. (27.43 mm) Height | 1/4-28 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |
| MH115-2B | Electrically Isolated, Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 95 lbs. (43 kg) Pull Strength, 1.85 in. (46.99 mm) OD, 1.08 in. (27.43 mm) Height | 1/4-28 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |

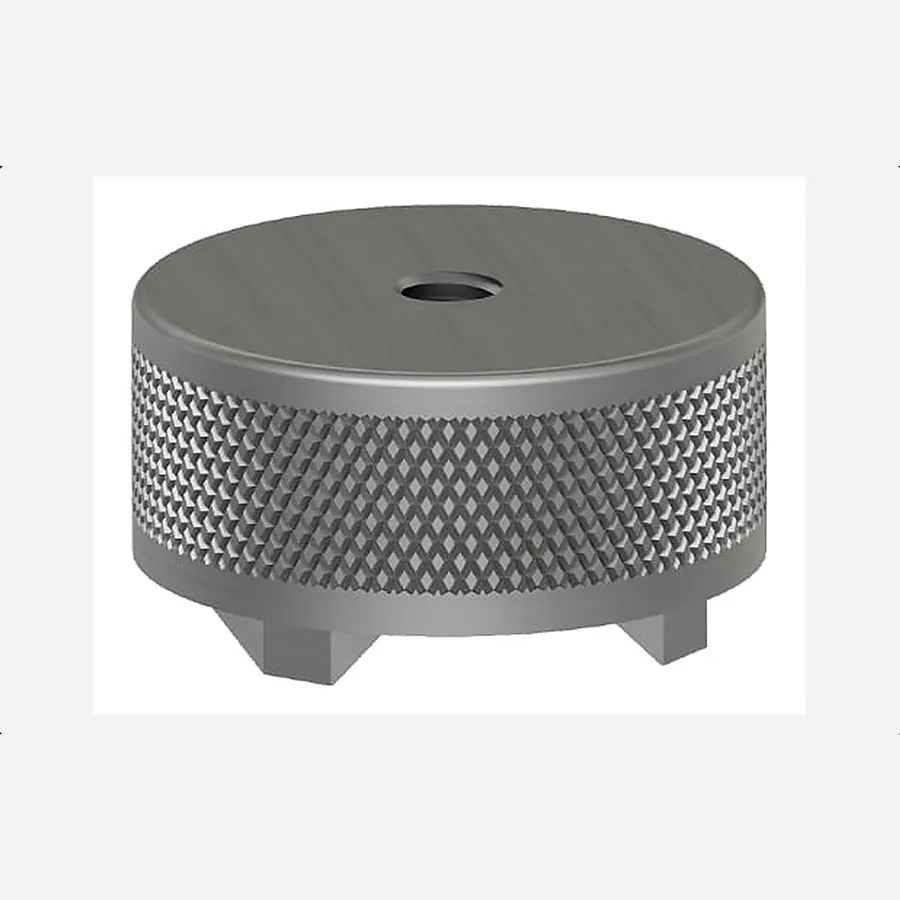

| MH128-1A | Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 30 lbs. (14 kg) Pull Strength, 1 in. (25.4 mm) OD, 0.94 in. (23.88 mm) Height | 1/4-28 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |
| MH137-1A | Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Integral Mounting Stud, 15 lbs. (6,8 kg) Pull Strength, 0.75 in. (19.05 mm) OD, 0.68 in. (17.27 mm) Height | 1/4-28 Integral Stud | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |
| MH140-1A | Ultra Strong Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 120 lbs. (54 kg) Pull Strength, 1.85 in. (46.99 mm) OD, 1.1 in. (27.94 mm) Height | 1/4-28 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |

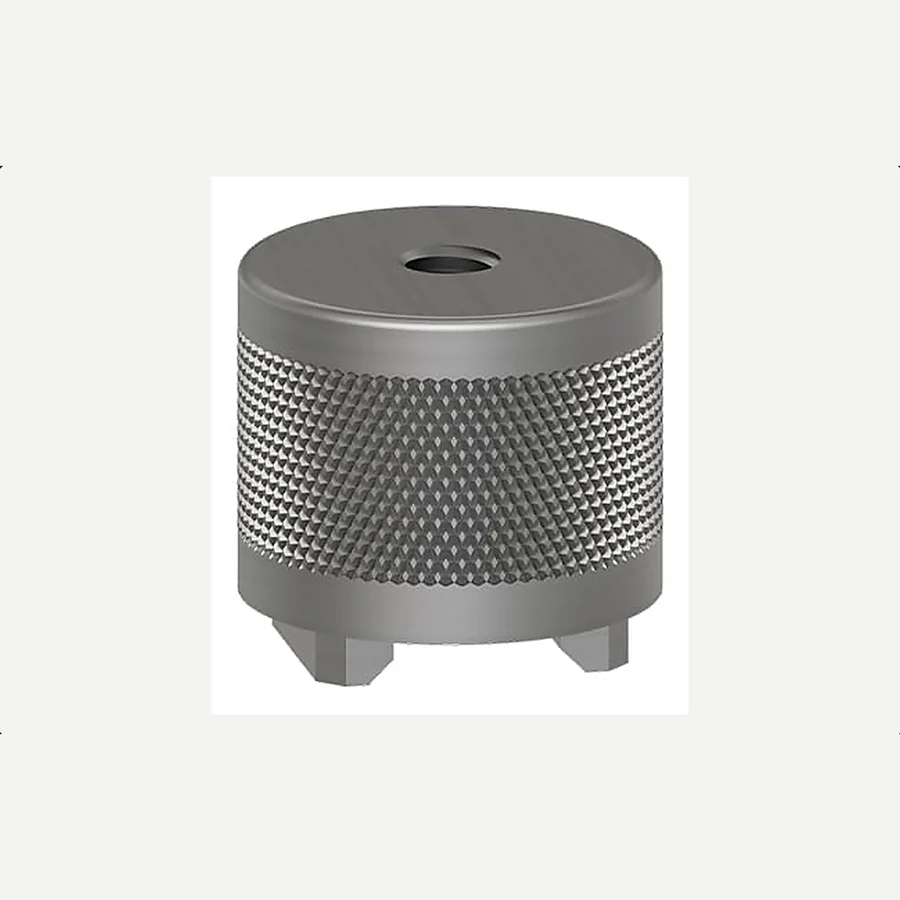

| MH142-1A | Multipurpose 2 Rail Magnet Mounting Base with M8x1.25 Blind Tapped Hole, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height | M8x1.25 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium iron Boron | Stock |
| MH147-1A | Multipurpose 2 Rail Magnet Mounting Base with M6x1 Blind Tapped Hole, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height | M6x1 Blind Tapped Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |
| MH153-1A | Multipurpose 2 Rail Magnet Mounting Base with M5x0.8 Blind Tapped Hole, 30 lbs. (14 kg) Pull Strength, 1 in. (25.4 mm) OD, 0.94 in. (23.88 mm) Height | M5x0.8 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |
| MH214-3A | Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole and Integral Rotating Mounting Nut, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height, Aluminum Wrench Included | 1/4-28 Integral Rotating Mounting Nut | Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |
| MH214-3B | Multipurpose 2 Rail Magnet Mounting Base with M6x1 Blind Tapped Hole and Integral Rotating Mounting Nut, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height, Aluminum Wrench Included | M6x1 Integral Rotating Mounting Nut | Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Built to order |
| MH214-4A | Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole and Integral Rotating Mounting Nut, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height, Aluminum Wrench For Pole Adjustment Sold Separately | — | Stainless Steel | — | — | — |
| MH214-1W | Aluminum Allen Wrench, 1/4 in. Hex Head, for Use with MH214-4A Multipurpose Magnet | — | Aluminum | — | — | — |
Models covered
By providing a snug fit between the magnet and the machine surface, a curved surface magnet can help to improve the accuracy of vibration data by reducing the risk of sensor movement or slippage. It is always recommended that an analyst have booth flat and curved surface magnets in a toolbox to accommodate all types of machine surfaces.
Features
From the MH112-1A datasheet; the other part numbers in this family differ.
- 2 rail mounting system allows measurements on flat and curved surfaces
- Magnet Leg Rust Prevention Tips: >Store the product in original packaging until it needs to be installed >Ensure the steel is coated or oiled to prevent rusting
Choosing a part number
This family covers 16 part numbers. They share the specification in the Specs tab and differ in the details set out in the model table — most often the connector, the exit direction and the mounting thread. Tell us the machine and the measurement and we will confirm the part number.
Where CTC publishes a stock tag for a part number it is shown in the Availability column — Stock or Built to order. Built to order is normal for a configured sensor and is not a shortage; it sets lead time, which we confirm with the quotation.
CTC lists MH128-1A as a best seller in this family.
Supply and support
Supplied and supported in India by TIERA, authorised distributor for CTC (Connection Technology Center, USA). Each unit ships with CTC’s own calibration certificate. Pricing and lead time on request.
