Multipurpose Magnets for Wireless Sensors
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.

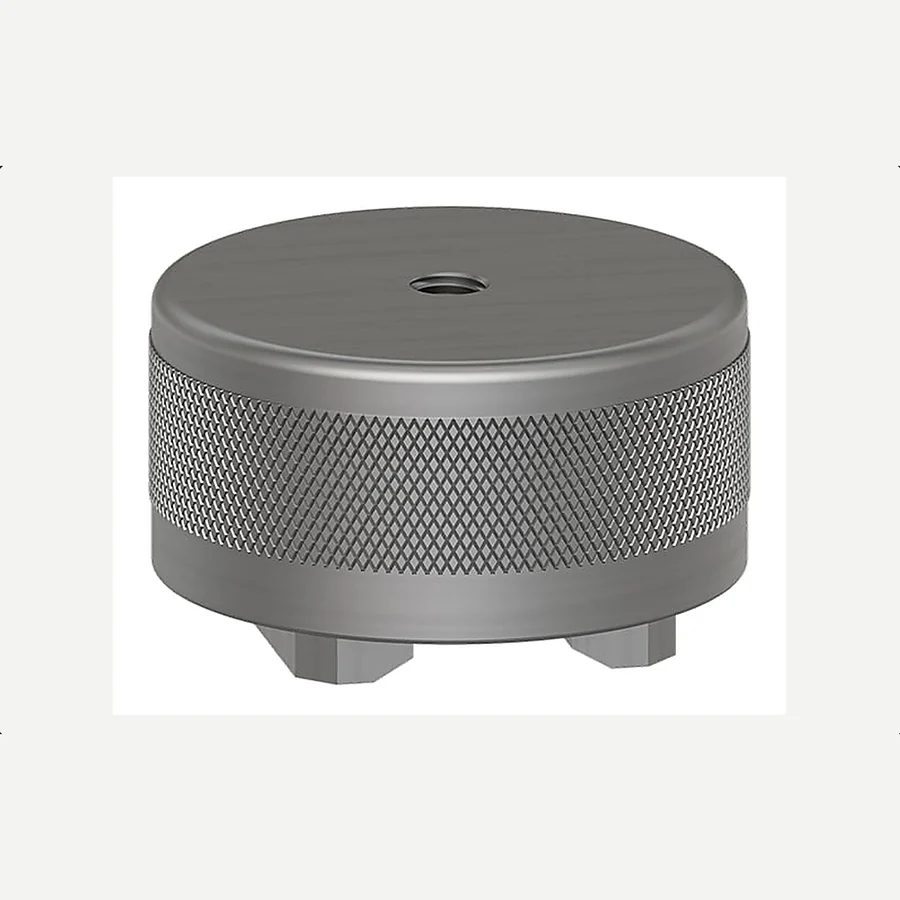

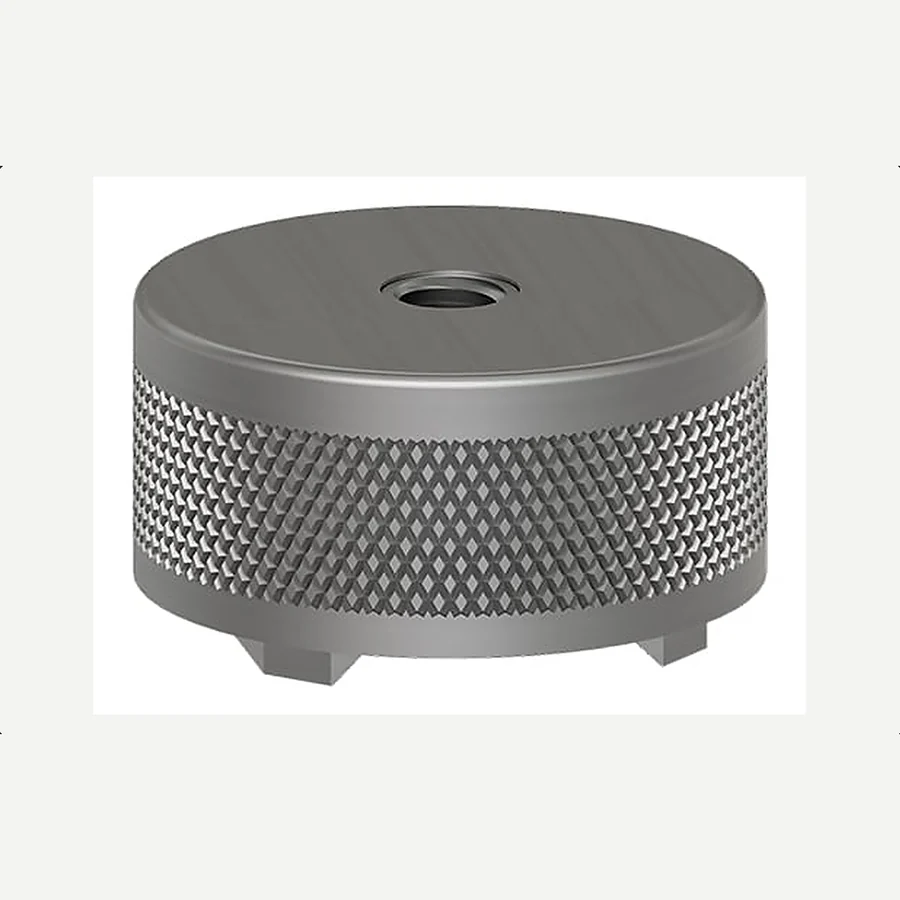

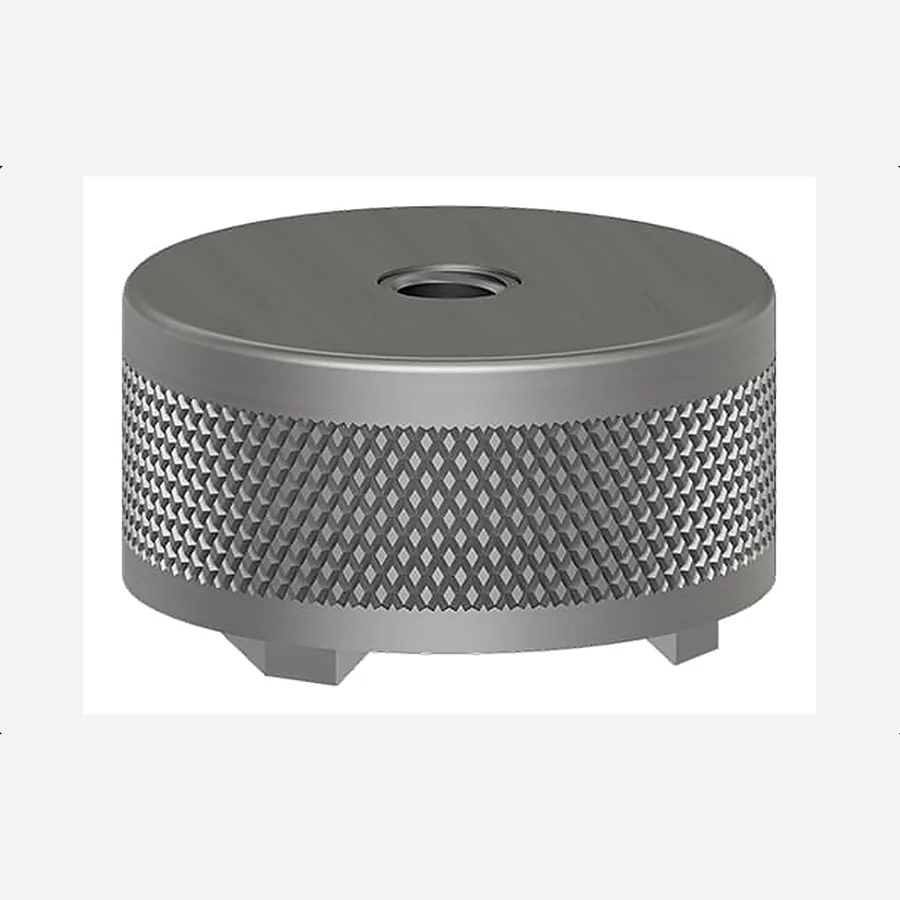

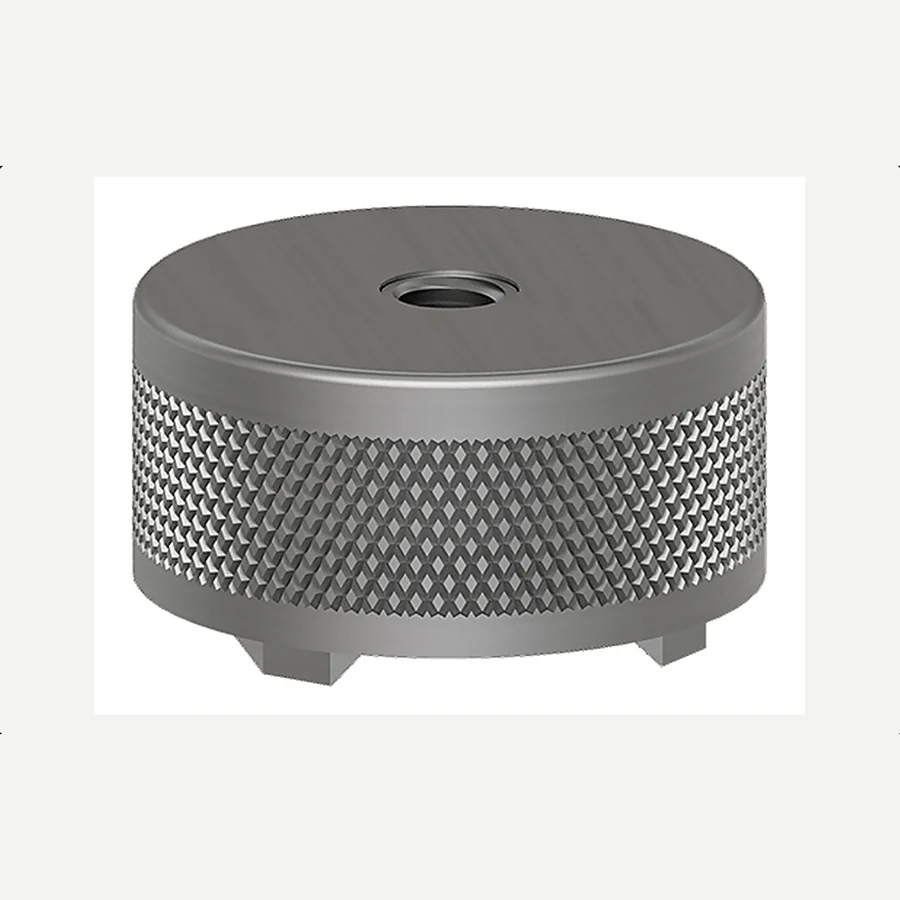

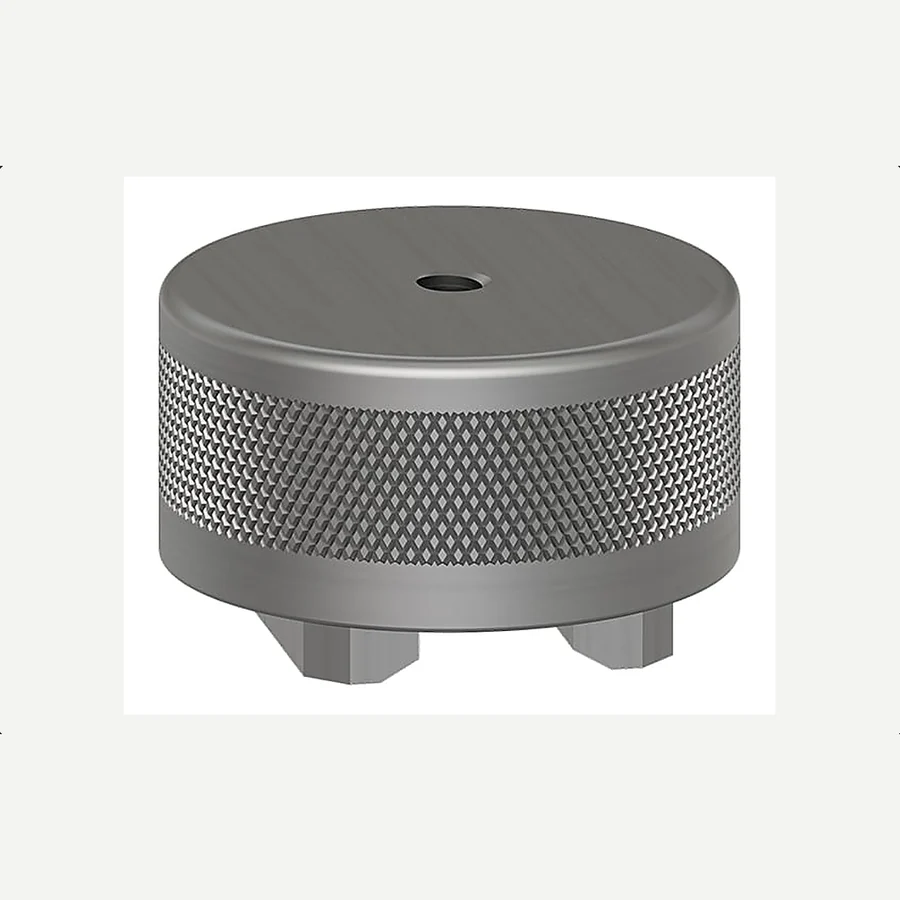

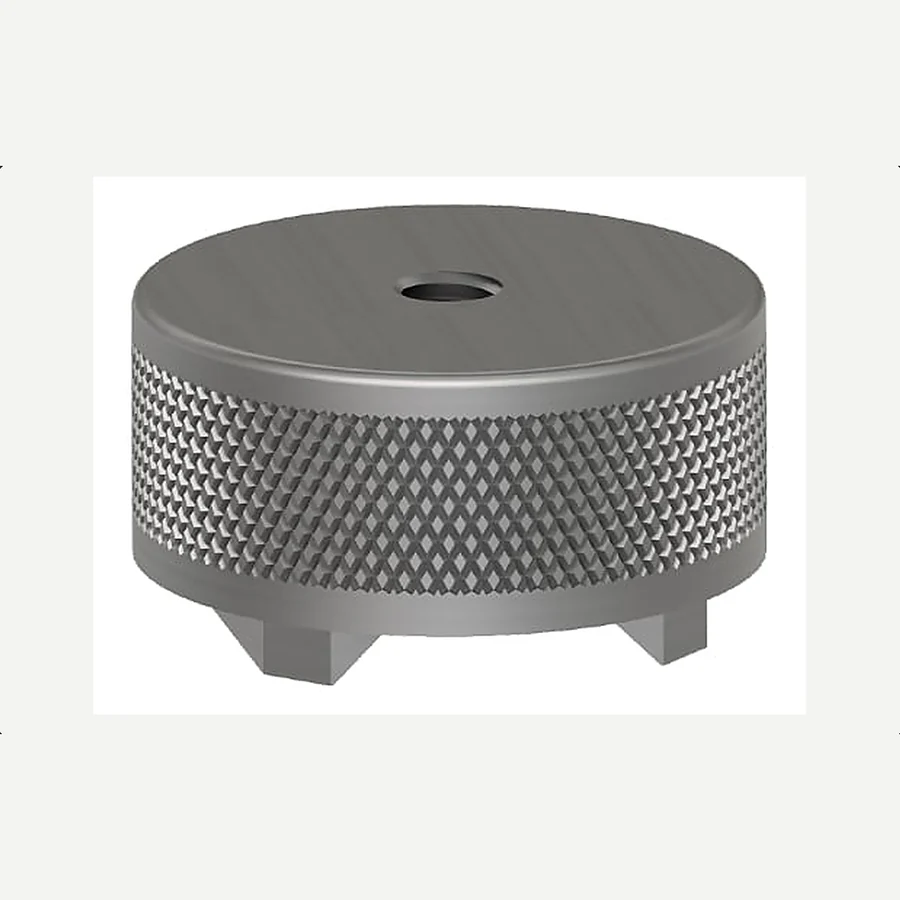

Multipurpose magnets, often referred to as curved surface magnets, feature magnet "legs" that form a concave or convex base. This design allows them to conform closely to the shape of curved machine surfaces.
Multipurpose magnets, often referred to as curved surface magnets, feature magnet "legs" that form a concave or convex base. Read more
This design allows them to conform closely to the shape of curved machine surfaces.Models in the Multipurpose Magnets for Wireless Sensors family
| Part number | Description | Sensor Mounting | Case Material | Max Temperature | Magnet Material | Availability |
|---|---|---|---|---|---|---|
| MH114-3A | Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height | 1/4-28 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |
| MH114-3B | Electrically Isolated, Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height | 1/4-28 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Built to order |
| MH115-2A | Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 95 lbs. (43 kg) Pull Strength, 1.85 in. (46.99 mm) OD, 1.08 in. (27.43 mm) Height | 1/4-28 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |
| MH115-2B | Electrically Isolated, Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 95 lbs. (43 kg) Pull Strength, 1.85 in. (46.99 mm) OD, 1.08 in. (27.43 mm) Height | 1/4-28 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |
| MH214-3A | Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole and Integral Rotating Mounting Nut, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height, Aluminum Wrench Included | 1/4-28 Integral Rotating Mounting Nut | Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |
| MH214-3B | Multipurpose 2 Rail Magnet Mounting Base with M6x1 Blind Tapped Hole and Integral Rotating Mounting Nut, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height, Aluminum Wrench Included | M6x1 Integral Rotating Mounting Nut | Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Built to order |
| MH140-1A | Ultra Strong Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole, 120 lbs. (54 kg) Pull Strength, 1.85 in. (46.99 mm) OD, 1.1 in. (27.94 mm) Height | 1/4-28 Mounting Hole | 303 Stainless Steel | 266 °F (130 °C) | Neodymium Iron Boron | Stock |
| MH214-4A | Multipurpose 2 Rail Magnet Mounting Base with 1/4-28 Blind Tapped Hole and Integral Rotating Mounting Nut, 50 lbs. (23 kg) Pull Strength, 1.4 in. (35.56 mm) OD, 0.75 in. (19.05 mm) Height, Aluminum Wrench For Pole Adjustment Sold Separately | — | Stainless Steel | — | — | — |
| MH214-1W | Aluminum Allen Wrench, 1/4 in. Hex Head, for Use with MH214-4A Multipurpose Magnet | — | Aluminum | — | — | — |
Models covered
These magnets are particularly well-suited for use on non-flat surfaces, such as curved shafts or motor housings. By ensuring a secure and stable connection between the magnet and the machine, they help enhance the precision of vibration measurements by minimizing the chances of sensor movement or slippage. To be fully prepared for various machines, we recommend analysts carry both flat and curved surface magnets in their toolkit.
Features
From the MH114-3A datasheet; the other part numbers in this family differ.
- 2 rail mounting system allows measurements on flat and curved surfaces
- High strength Neodymium Iron Boron magnet optimizes pull strength and performance
- Magnet leg rust prevention tips: store the product in its original packaging until it needs to be installed; ensure the steel is coated or oiled to prevent rusting
Choosing a part number
This family covers 9 part numbers. They share the specification in the Specs tab and differ in the details set out in the model table — most often the connector, the exit direction and the mounting thread. Tell us the machine and the measurement and we will confirm the part number.
Where CTC publishes a stock tag for a part number it is shown in the Availability column — Stock or Built to order. Built to order is normal for a configured sensor and is not a shortage; it sets lead time, which we confirm with the quotation.
Supply and support
Supplied and supported in India by TIERA, authorised distributor for CTC (Connection Technology Center, USA). Each unit ships with CTC’s own calibration certificate. Pricing and lead time on request.
