Installation Tool Kits for Wireless Sensors
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
Eliminate the expense of hiring subcontractors by using this safe, do-it-yourself sensor installation tool kit! CTC’s MH117 Series kits include a combined four-fluted spot face and drill bit, enabling you to drill and spot face the mounting surface in one step.
Eliminate the expense of hiring subcontractors by using this safe, do-it-yourself sensor installation tool kit! Read more
CTC’s MH117 Series kits include a combined four-fluted spot face and drill bit, enabling you to drill and spot face the mounting surface in one step.Models in the Installation Tool Kits for Wireless Sensors family
| Part number | Description |
|---|---|

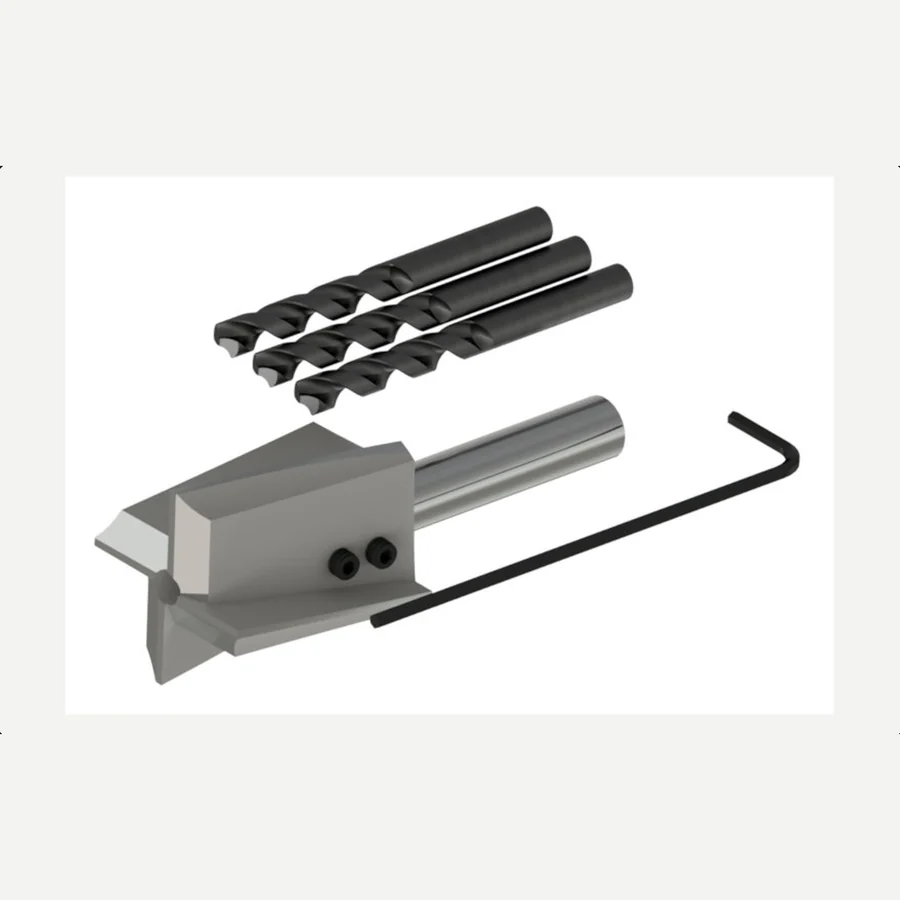

| MH117-1A | Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for 1/4-28 Thread |

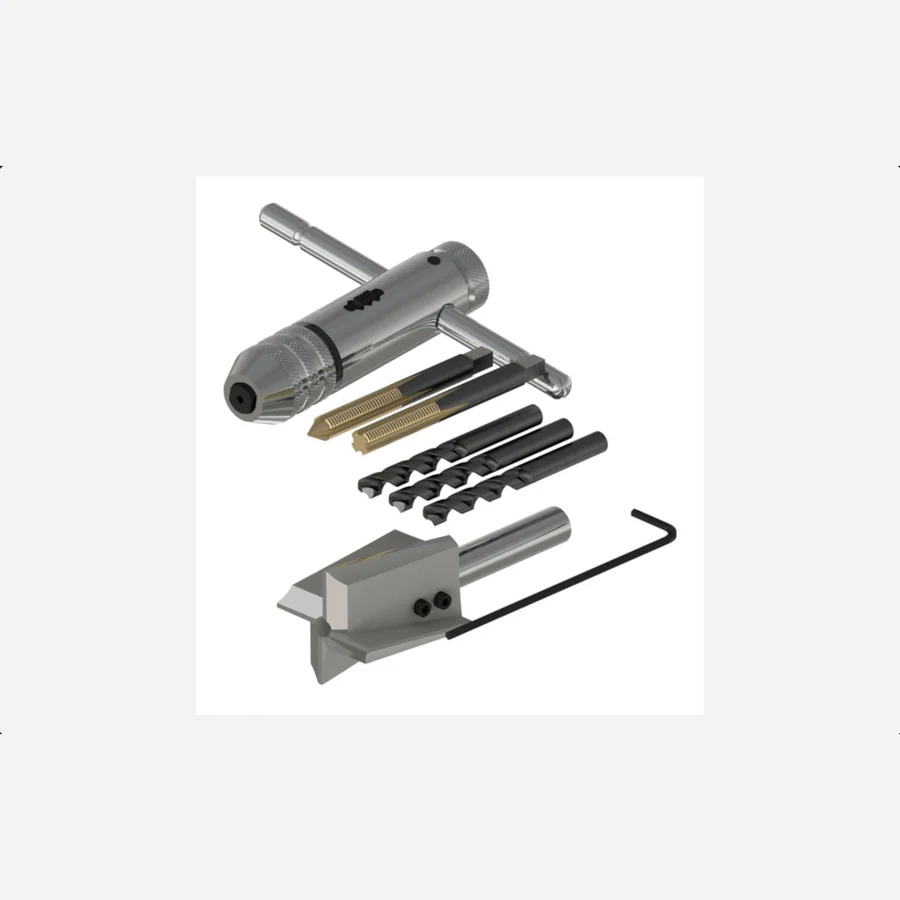

| MH117-1B | Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for 1/4-28 Thread, with Tap Set |
| MH117-4A | Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for M6x1 Thread |
| MH117-4B | Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for M6x1 Thread with Tap Set |
| MH117-6A | Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for M8x1.25 Thread |
| MH117-6B | Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for M8x1.25 Thread with Tap Set |
| MH117-11A | Carbide Tipped Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for 1/4-28 Thread |
| MH117-11B | Carbide Tipped Accelerometer Installation Tool Kit, 1.25 in. (31.75 mm) End Mill Diameter for 1/4-28 Thread, with Tap Set |
Models covered
For sensors that use stud mounting, just adjust the drill depth based on the number of threads you plan to tap. With a 500 RPM right-angle drill, carefully drill and spot face the area, then proceed to tap the threads. When preparing a machine surface for adhesive mounting pads, simply reduce the drill depth to its lowest setting and use the tool to create a smooth, flat surface ideal for bonding.
Features
- Accurate: Drills a pilot hole for a 1/4 - 28, 10-32 or M6 x 1 threads perpendicular to a milled face, in the same operation.
- Fast: Mill and drill in the same operation.
- Reliable: High speed steel and carbide tipped versions available.
Choosing a part number
This family covers 8 part numbers. They share the specification in the Specs tab and differ in the details set out in the model table — most often the connector, the exit direction and the mounting thread. Tell us the machine and the measurement and we will confirm the part number.
Supply and support
Supplied and supported in India by TIERA, authorised distributor for CTC (Connection Technology Center, USA). Each unit ships with CTC’s own calibration certificate. Pricing and lead time on request.
