Flat Surface Magnets for Wireless Sensors
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
CTC’s flat surface magnets are a widely favored option for mounting wireless sensors during route-based data collection. These magnets feature a flat base, which maximizes the contact area with the machine surface.
CTC’s flat surface magnets are a widely favored option for mounting wireless sensors during route-based data collection. Read more
These magnets feature a flat base, which maximizes the contact area with the machine surface.Specifications
| Max Temperature | 266 °F (130 °C) |
|---|---|
| Case Material | 17-4 Stainless Steel |
| Magnet Material | Neodymium Iron Boron |
| Pull Strength | 60 lbs. (27 kg) |
Models in the Flat Surface Magnets for Wireless Sensors family
| Part number | Description | Sensor Mounting | Dimensions | Availability |
|---|---|---|---|---|
| MH104-1B | Flat Surface Magnet Mounting Base with 1/4-28 Integral Mounting Stud, 60 lbs. (27 kg) Pull Strength, 1.25 in. (31.75 mm) OD, 0.46 in. (11.68 mm) Height | 1/4-28 Integral Stud | 1.25 in. (31.75 mm) OD, 0.46 in. (11.68 mm) Height | Stock |

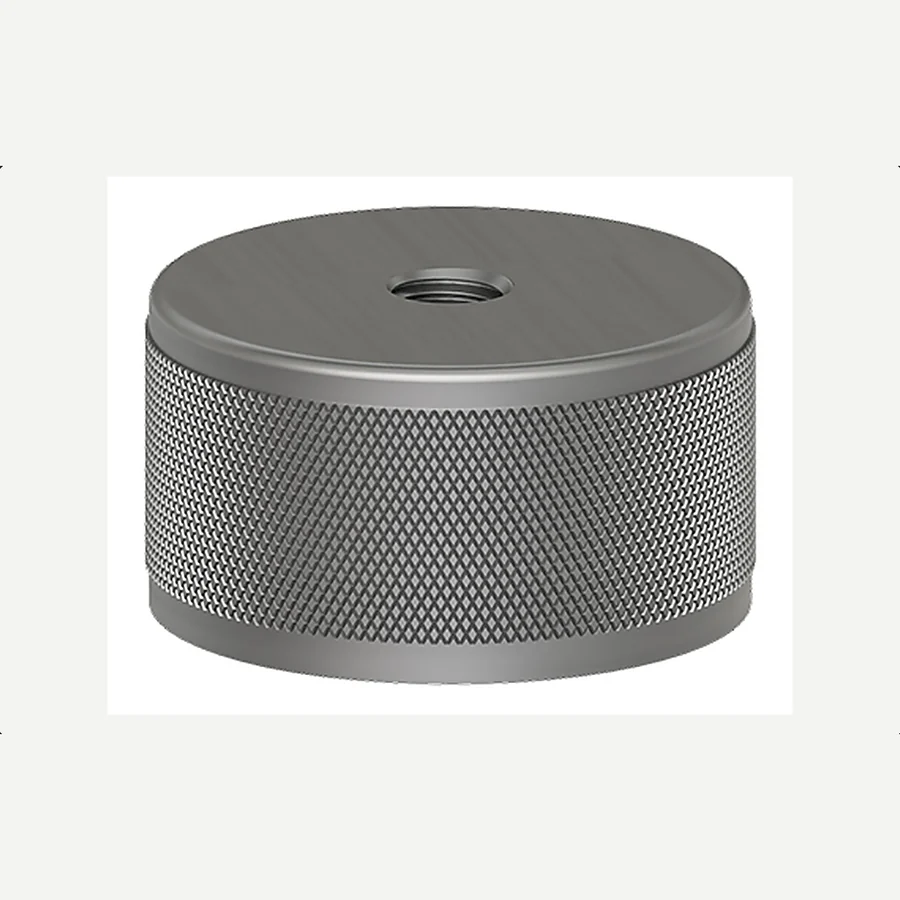

| MH123-1A | Flat Surface Magnet Mounting Base with 1/4-28 Threaded Mounting Hole, 60 lbs. (27 kg) Pull Strength, 1.25 in. (31.75 mm) OD, 0.68 in. (17.27 mm) Height | 1/4-28 Mounting Hole | 1.25 in. (31.75 mm) OD, 0.68 in. (17.27 mm) Height | Stock |
Models covered
Their straightforward design allows for quick and secure attachment, making them especially suitable for machines with smooth, flat surfaces. Compared to curved surface magnets, flat magnets generally offer superior sensor frequency response. When working with equipment that includes both flat and curved surfaces, it’s beneficial for analysts to carry both types of magnets to ensure proper sensor placement across varying geometries.
Features
- High Strength Neodymium Iron Boron magnet optimizes pull strength and performance
- Maximum frequency response up to 10 kHz when paired with MH133-1A mounting target
Choosing a part number
This family covers 2 part numbers. They share the specification in the Specs tab and differ in the details set out in the model table — most often the connector, the exit direction and the mounting thread. Tell us the machine and the measurement and we will confirm the part number.
Where CTC publishes a stock tag for a part number it is shown in the Availability column — Stock or Built to order. Built to order is normal for a configured sensor and is not a shortage; it sets lead time, which we confirm with the quotation.
Supply and support
Supplied and supported in India by TIERA, authorised distributor for CTC (Connection Technology Center, USA). Each unit ships with CTC’s own calibration certificate. Pricing and lead time on request.
