8 mm Proximity Probe Sets
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
CTC’s PRO line of 8mm Proximity Probe Systems offer the highest levels of performance and quality non-contact inductive displacement sensors in the industry. CTC’s 8mm proximity probe systems are fully compliant with the American Petroleum Institute’s (API) 670 Standards.
CTC’s PRO line of 8mm Proximity Probe Systems offer the highest levels of performance and quality non-contact inductive displacement sensors in the industry. Read more
CTC’s 8mm proximity probe systems are fully compliant with the American Petroleum Institute’s (API) 670 Standards.Models in the 8 mm Proximity Probe Sets family
| Part number | Description | Sensitivity | Connector | Connector Pull Strength | Probe Connector |
|---|---|---|---|---|---|
| DP1001 | Proximity Probe, 8 mm Probe Tip Diameter, with 3/8-24 or M10x1 Case Thread | -200 mV/mil (-7.87 V/mm) (1 mil = 0.001 in.) | SecureLock | Up to 30 lbs. | — |

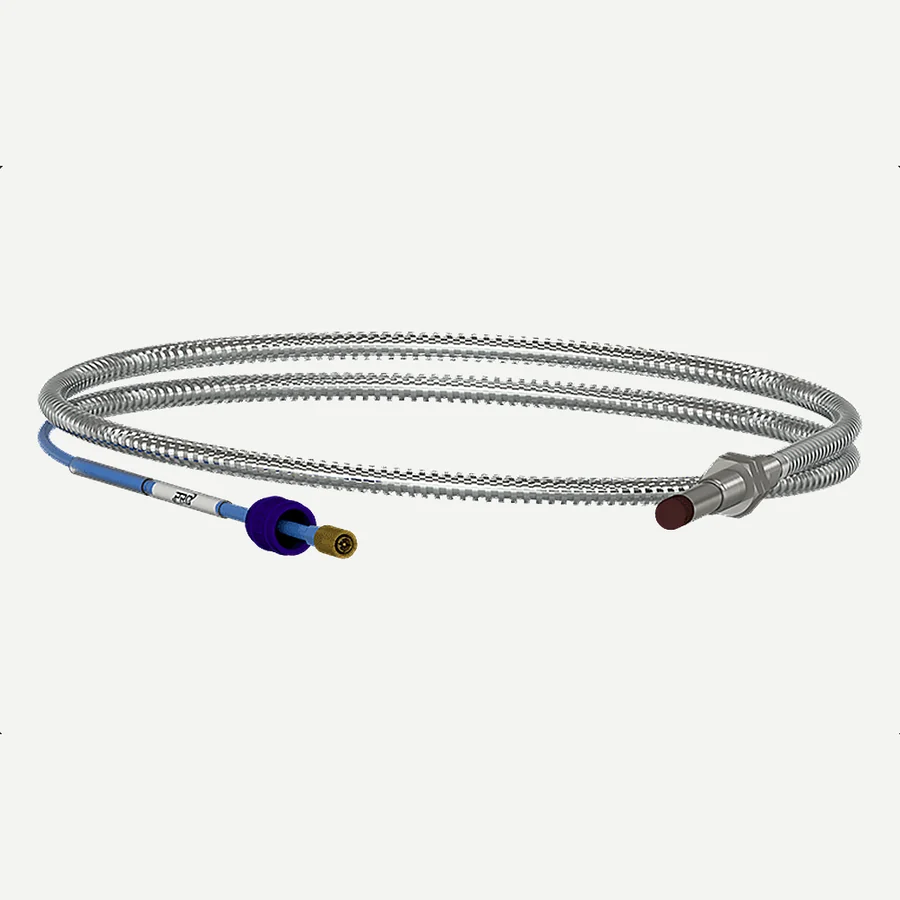

| DP1001 with Armor | Armored Proximity Probe, 8 mm Probe Tip Diameter, with 3/8-24 or M10x1 Case Thread | -200 mV/mil (-7.87 V/mm) (1 mil = 0.001 in.) | SecureLock | Up to 30 lbs. | — |

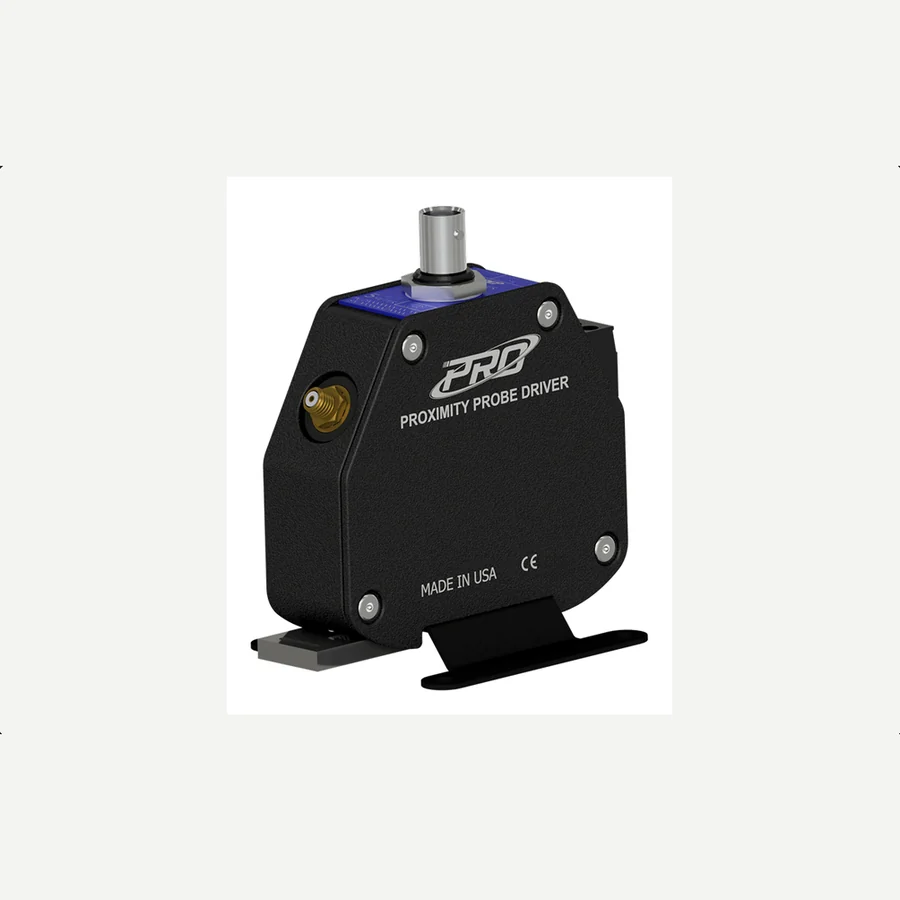

| DD100170 | Eddy Current Driver Compatible with 8 mm Proximity Probe Systems, 4-20 mA Output | — | — | — | SecureLock |
| DD100180 | Eddy Current Driver Compatible with 8 mm Proximity Probe Systems, Voltage Output | — | — | — | SecureLock |

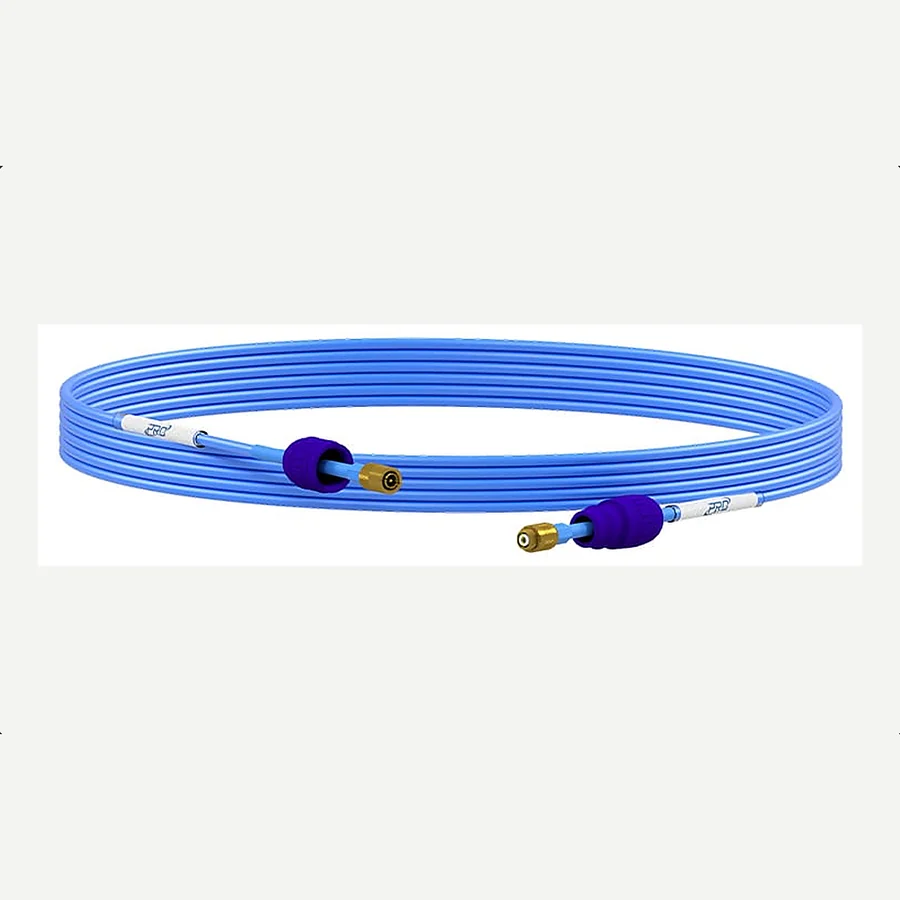

| DC100130 | Proximity Probe Extension Cable for 8 mm PRO Proximity Probes, with FEP or Armor Jacket | — | SecureLock | Up to 30 lbs. | — |

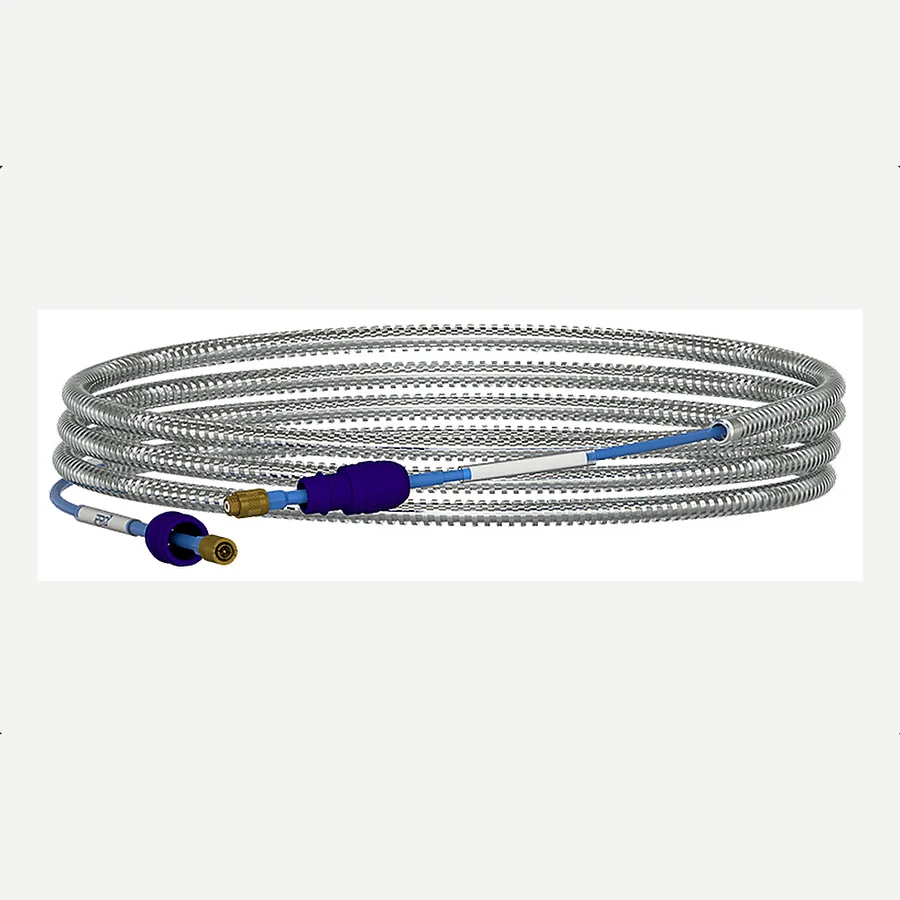

| DC100130 with Armor | Proximity Probe Extension Cable for 8 mm PRO Proximity Probes, with Armor Jacket | — | SecureLock | Up to 30 lbs. | — |
Models covered
Whether you’re in the power generation, oil and gas, or industrial manufacturing, our proximity probe sets are sure to meet your needs and compatible with all standard condition monitoring software, including Alta Solutions, Bently Nevada, TWave, and more. Our PRO Line proximity probes sets are made with the most durable material possible to protect our advanced technology, ensuring a long lifespan even in the harshest environments. With our easy-to-use website, you can customize your probe set to your application’s exact needs. NEW - Custom Calibration Materials Looking for a unique custom calibration material? We can create a custom target for you. Requirements: » $2,500 NRE fee (discount exempt) » Customer must supply the material for CTC to machine (CTC will provide required dimensions once the project is initiated) » Initial order requirement of 10 proximity probe drivers calibrated to that target, with no MOQ on subsequent orders Contact [email protected] to get started with your custom calibration material. Need help knowing where to start? Scroll down to see our helpful system diagrams to select the right option for your application.
Features
From the DP1001 datasheet; the other part numbers in this family differ.
- Probe tip and body sealed to prevent leaking through cable
- Complete hardware system is compatible with all standard condition monitoring software
- For use with PRO Line proximity probe drivers only
Choosing a part number
This family covers 6 part numbers. They share the specification in the Specs tab and differ in the details set out in the model table — most often the connector, the exit direction and the mounting thread. Tell us the machine and the measurement and we will confirm the part number.
Supply and support
Supplied and supported in India by TIERA, authorised distributor for CTC (Connection Technology Center, USA). Each unit ships with CTC’s own calibration certificate. Pricing and lead time on request.
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
