Intrinsically Safe IECEx — Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Velocity, Top Exit 2 Pin Connector
Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Velocity, Top Exit 2 Pin Connector
Specifications
| Tolerance: 4 mA | (± 10%) |
|---|---|
| Tolerance: 20 mA | (± 10%) |
| Settling Time | <60 Seconds |
| Voltage Source | 12-28 VDC |
| Case Isolation | >10 8 ohm |
| Operating Temperature Range | -4 to 176 °F (-20 to 80 °C) |
| Electromagnetic Sensitivity | CE |
| Sealing | Welded, Hermetic |
| Sensing Element | PZT Ceramic |
| Sensing Structure | Shear Mode |
| Weight | 3.7 oz (105 grams) |
| Case Material | 316L Stainless Steel |
| Mounting Thread | 1/4-28 Blind Tapped Hole |
| Connector (Non-Integral) | 2 Pin MIL-C-5015 |
| Mounting Torque | 2 to 5 ft. lbs. (2,7 to 6,8 Nm) |
| Mounting Hardware Supplied | 1/4-28 Stud (M6x1 or M8x1.25 Adapter Stud) |
| Calibration Certificate | Current Output @ 100 Hz |
Models in the Intrinsically Safe IECEx — Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor family
| Part number | Description |
|---|---|
| LP852 | Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Velocity, Top Exit 2 Pin Connector |
| LP852-XXX-5XC | Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Velocity, Top Exit with Flying Leads |

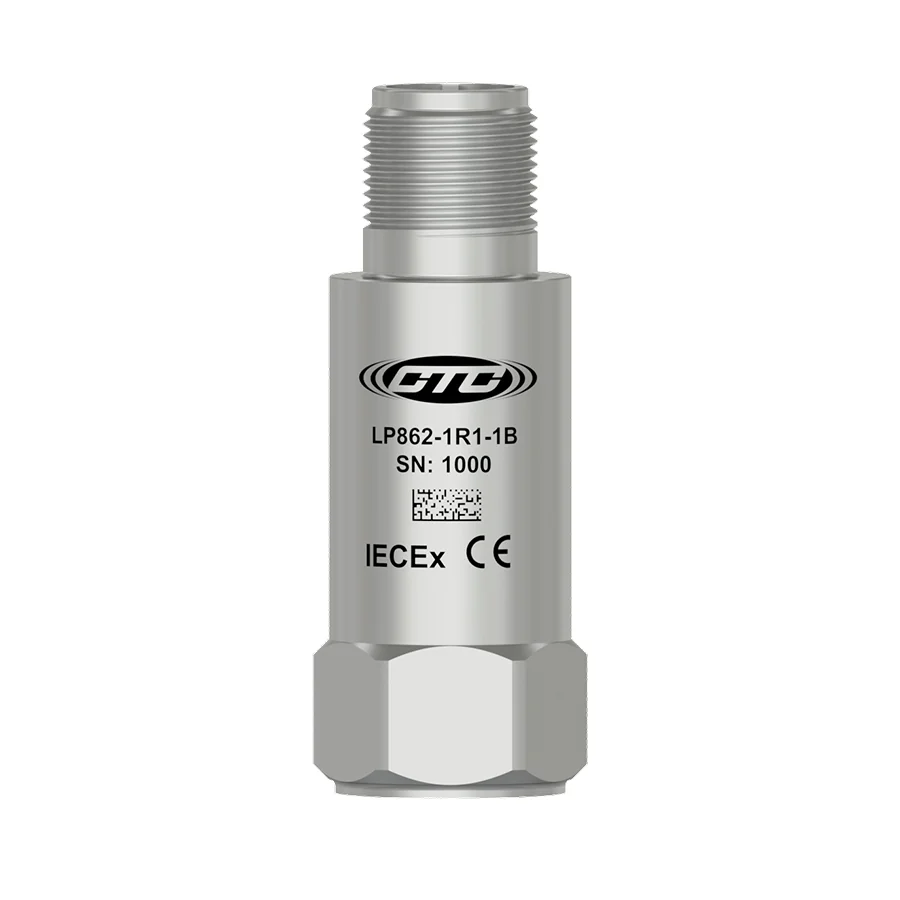

| LP862 | Low Capacitance, Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Velocity, Top Exit 2 Pin Connector |
| LP862-XXX-5XC | Low Capacitance, Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Velocity, Top Exit with Flying Leads |

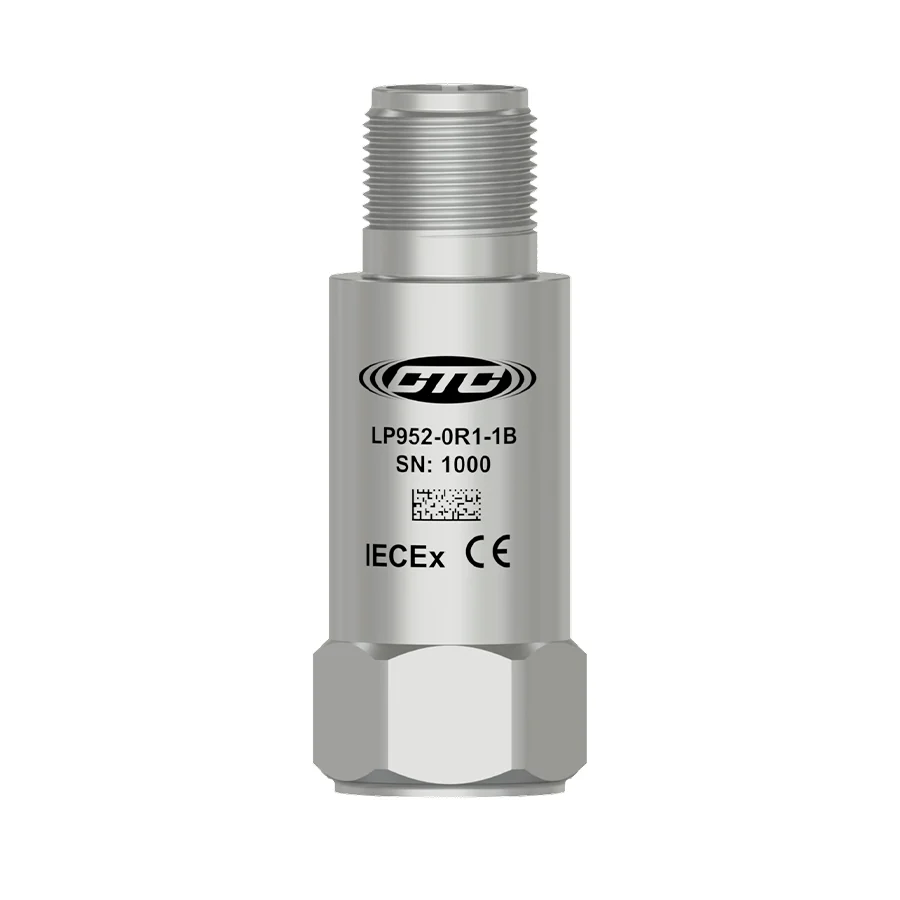

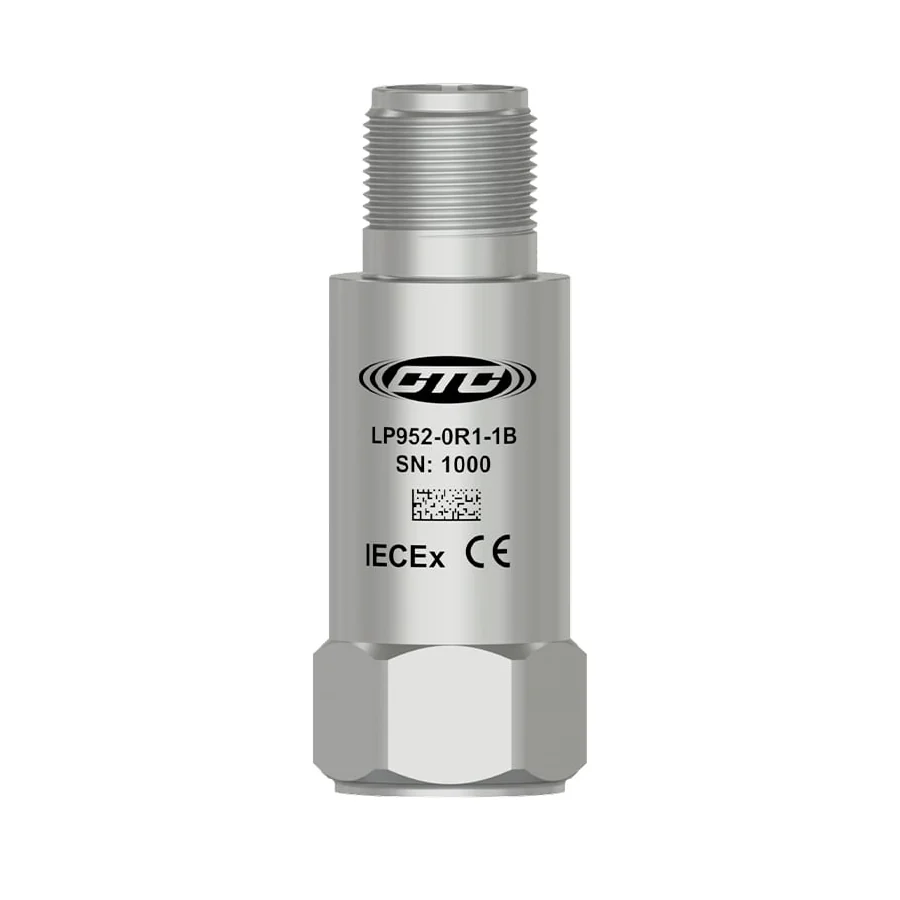

| LP952 | Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Acceleration, Top Exit 2 Pin Connector |
| LP952-XXX-5XC | Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Acceleration, Top Exit with Flying Leads |

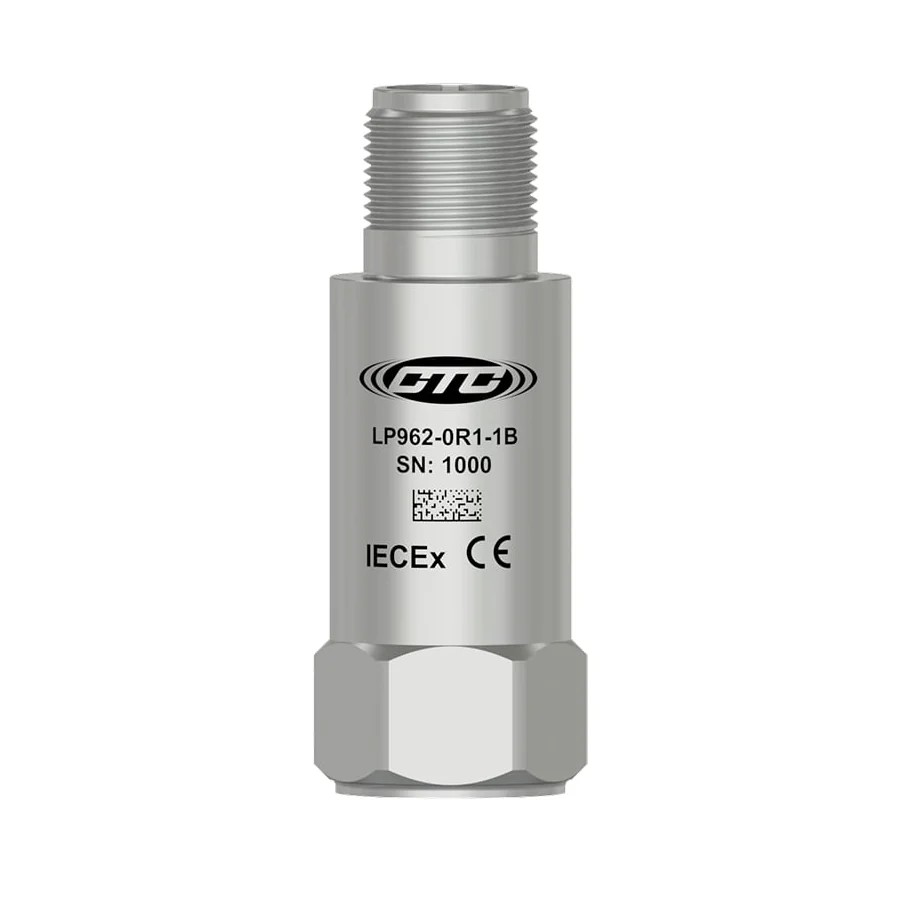

| LP962 | Low Capacitance, Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Acceleration, Top Exit 2 Pin Connector |
| LP962-XXX-5XC | Low Capacitance, Intrinsically Safe IEC Certified (IECEx) Loop Power Sensor, 4-20 mA Output Proportional to Vibration in Acceleration, Top Exit with Flying Leads |
Models covered
Features
From the LP852 datasheet; the other part numbers in this family differ.
- Requires Energy Limiting Barriers such as IS111-1B
- Works with Standard Cables
- IECEx Certification
Choosing a part number
This family covers 8 part numbers. They share the specification in the Specs tab and differ in the details set out in the model table — most often the connector, the exit direction and the mounting thread. Tell us the machine and the measurement and we will confirm the part number.
Supply and support
Supplied and supported in India by TIERA, authorised distributor for CTC (Connection Technology Center, USA). Each unit ships with CTC’s own calibration certificate. Pricing and lead time on request.
