IECEx Zone 0,1 Approved Sensors
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
CTC's IECEx Zone 0,1 approved accelerometers are expertly engineered for environments where explosive atmospheres are present continuously or intermittently during normal operations.
CTC's IECEx Zone 0,1 approved accelerometers are expertly engineered for environments where explosive atmospheres are present continuously or intermittently during normal operations.
Specifications
| Transverse Sensitivity | ≤5% |
|---|---|
| Sensing Element | PZT Ceramic |
| Case Material | 316L Stainless Steel |
| Calibration Certificate | CA10 |
Models in the IECEx Zone 0,1 Approved Sensors family
| Part number | Description | Sensitivity (±10%) | Electromagnetic Sensitivity | Sensitivity (±5%) | Frequency Response (±3dB) |
|---|---|---|---|---|---|
| AC911 | Nonincendive Intrinsically Safe Accelerometer, CSA North America Class I Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1 Approved Accelerometer, Top Exit 2 Pin Connector, 10 mV/g, ±10% | 10 mV/g | CE | — | 60-900,000 CPM (1,0-15000 Hz) |

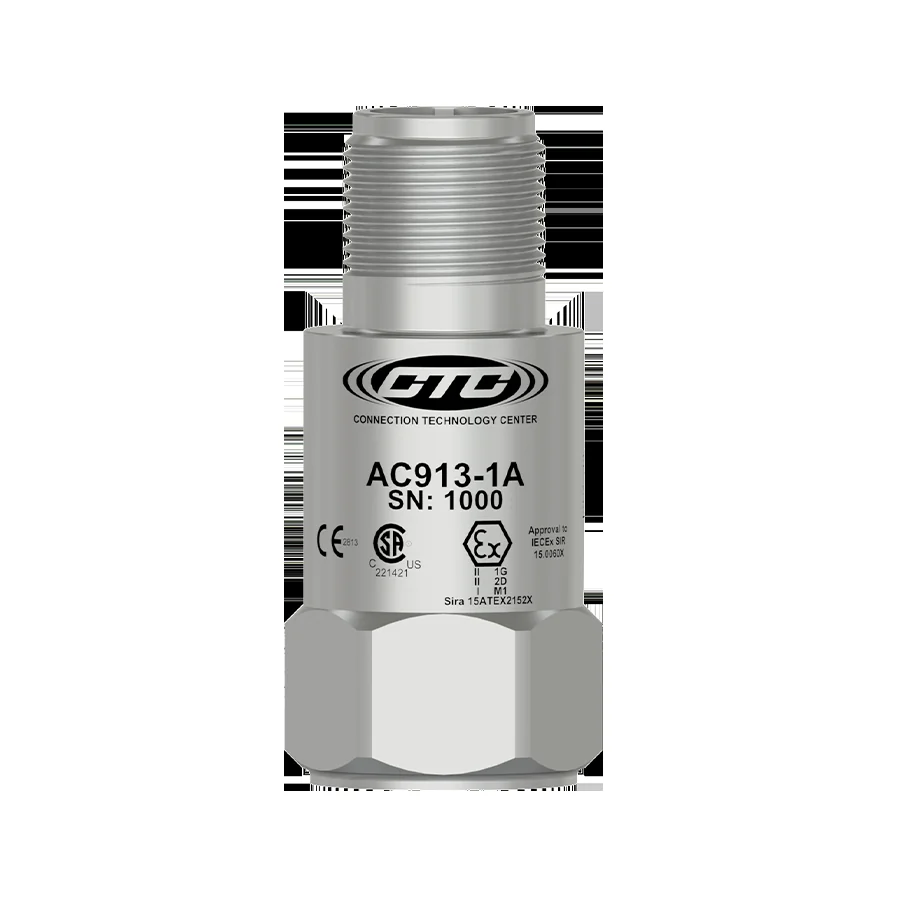

| AC913 | Nonincendive Intrinsically Safe Accelerometer, CSA North America Class I Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0, 1, 2, 21, 22 Approved Accelerometer, Top Exit 2 Pin Connector, 50 mV/g, ±10% | 50 mV/g | CE | — | 60-900,000 CPM (1,0-15000 Hz) |

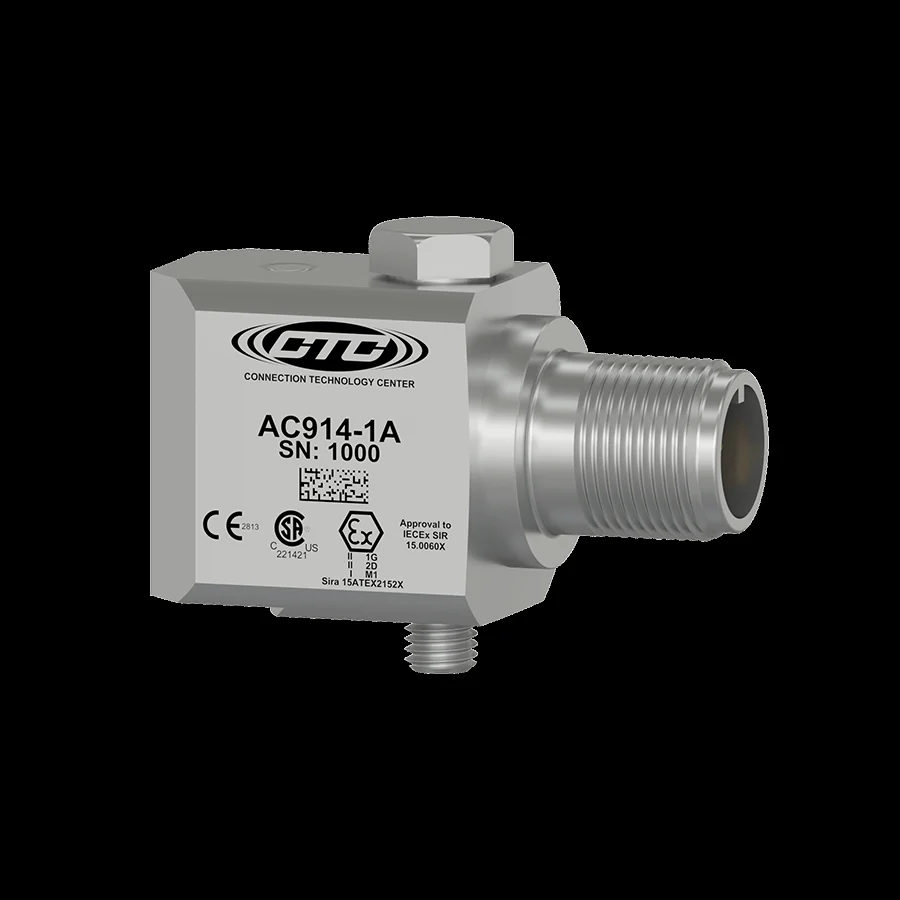

| AC914 | Nonincendive Intrinsically Safe Accelerometer, CSA North America Class I Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1,2 and 21,22 Approved Accelerometer, Side Exit 2 Pin Connector, 50 mV/g, ±10% | 50 mV/g | CE | — | 60-600,000 CPM (1,0-10000 Hz) |

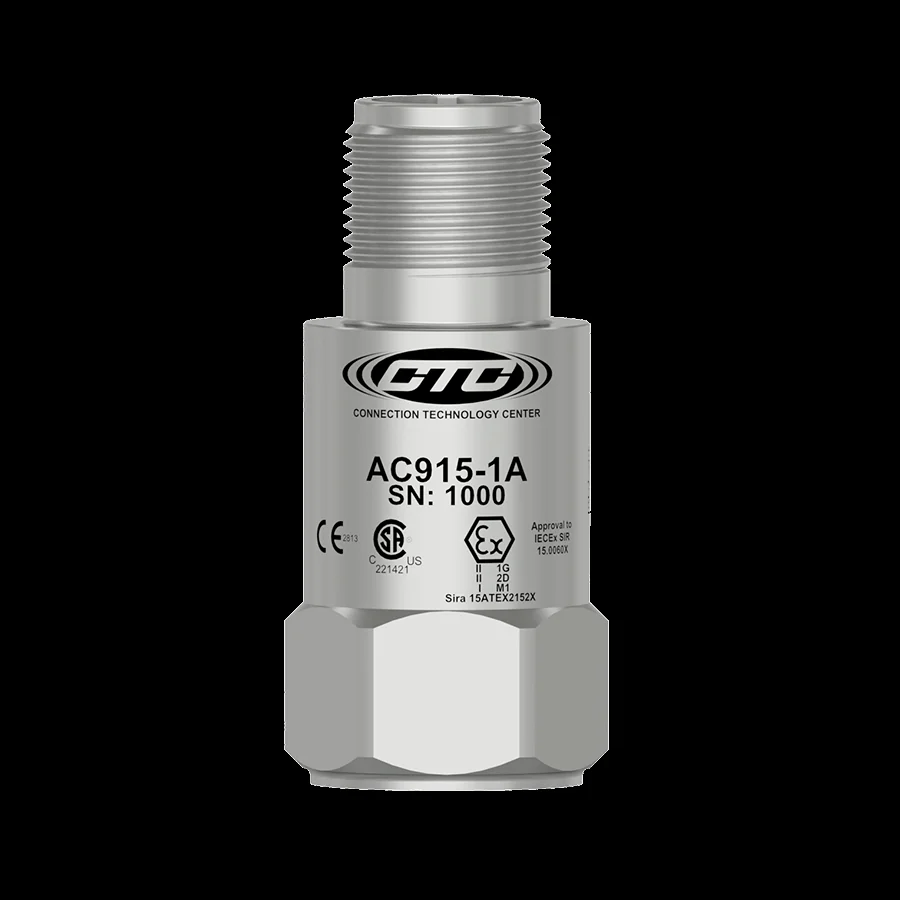

| AC915 | Nonincendive Intrinsically Safe Accelerometer, CSA North America Class I, Division 1, Class II, Division 2, Class III and IECEx/ATEX Zone 0,1,2 and 21,22 Approved Accelerometer, Top Exit 2 Pin Connector, 100 mV/g, ±10% | 100 mV/g | CE | — | 30-900,000 CPM (0,5-15000 Hz) |

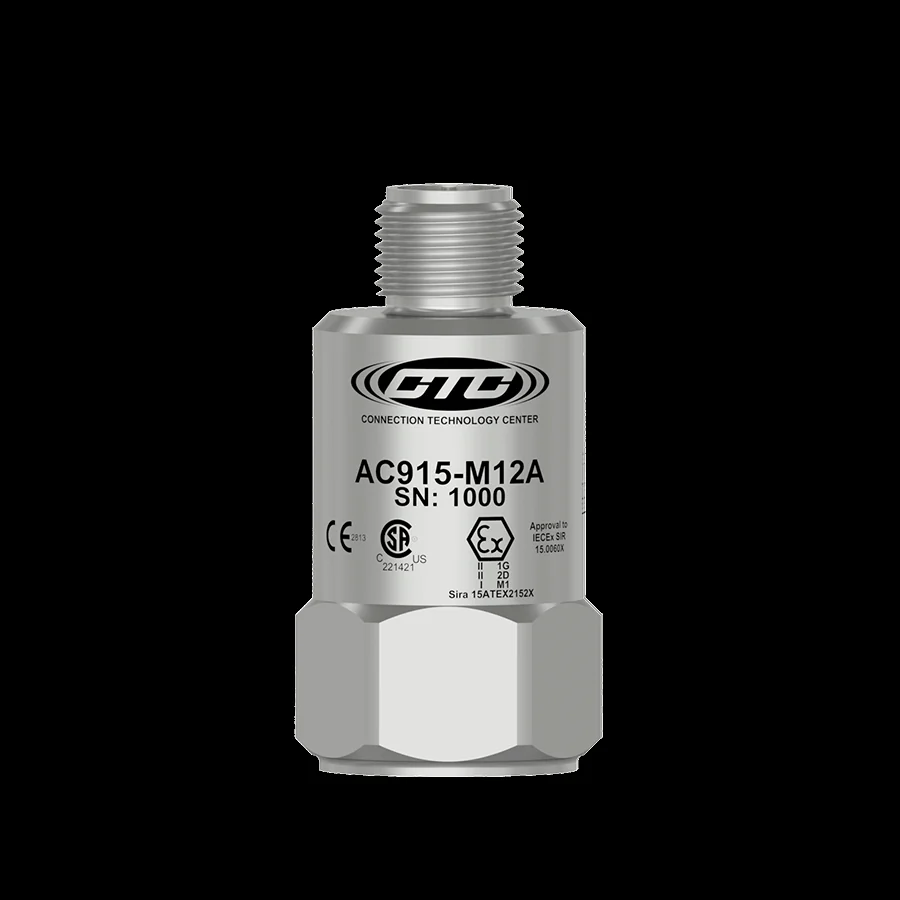

| AC915-M12A | Nonincendive Intrinsically Safe Accelerometer, CSA North America Class I Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1,2 and 21,22 Approved Accelerometer, Top Exit 4 Pin M12 Connector, 100 mV/g, ±10% | 100 mV/g | CE | — | 30-900,000 CPM (0,5-15000 Hz) |

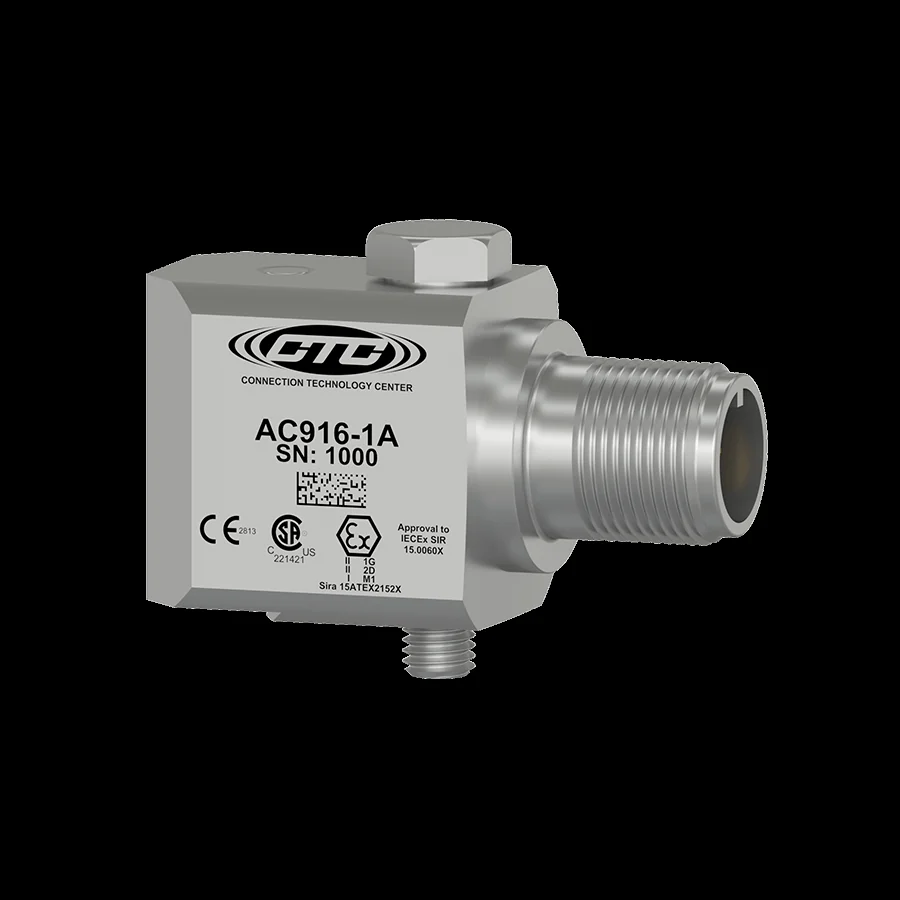

| AC916 | Nonincendive, Intrinsically Safe Accelerometer, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1,2,21,22 Approved Accelerometer, Side Exit 2 Pin Connector, 100 mV/g, ±10% | 100 mV/g | CE | — | 30-600,000 CPM (0,5-10,000 Hz) |

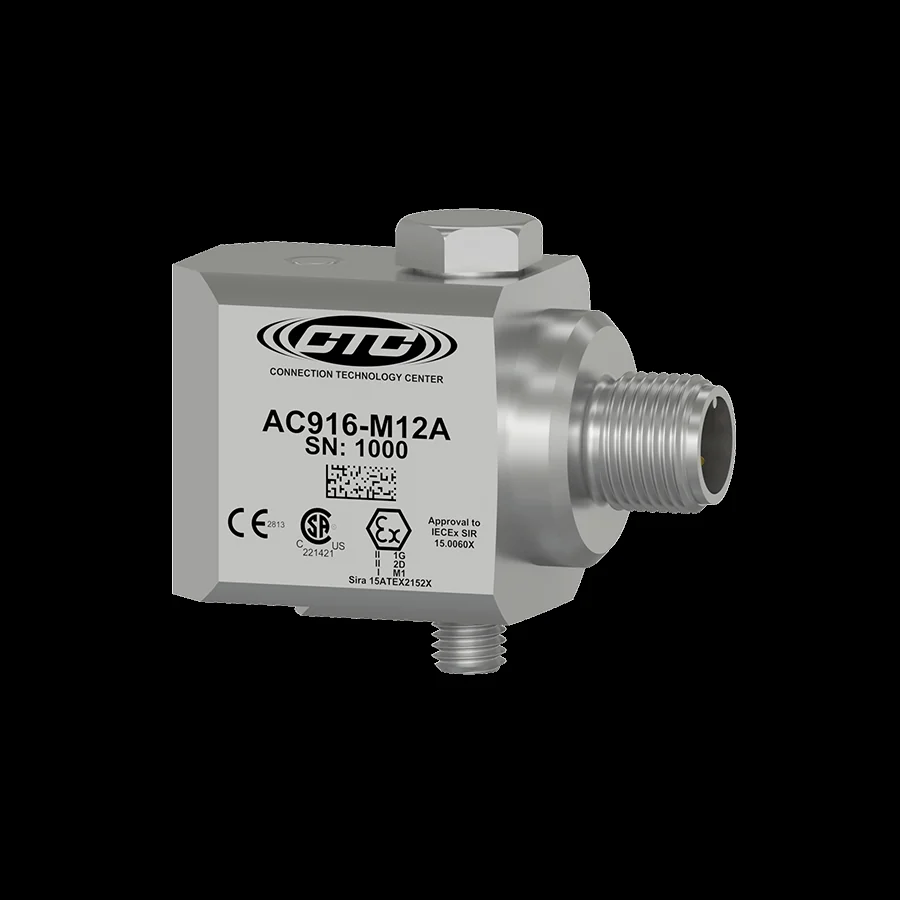

| AC916-M12A | Nonincendive Intrinsically Safe Accelerometer, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1,2,21,22 Approved Accelerometer, Side Exit 4 Pin M12 Connector, 100 mV/g, ±10% | 100 mV/g | CE | — | 30-600,000 CPM (0,5-10,000 Hz) |

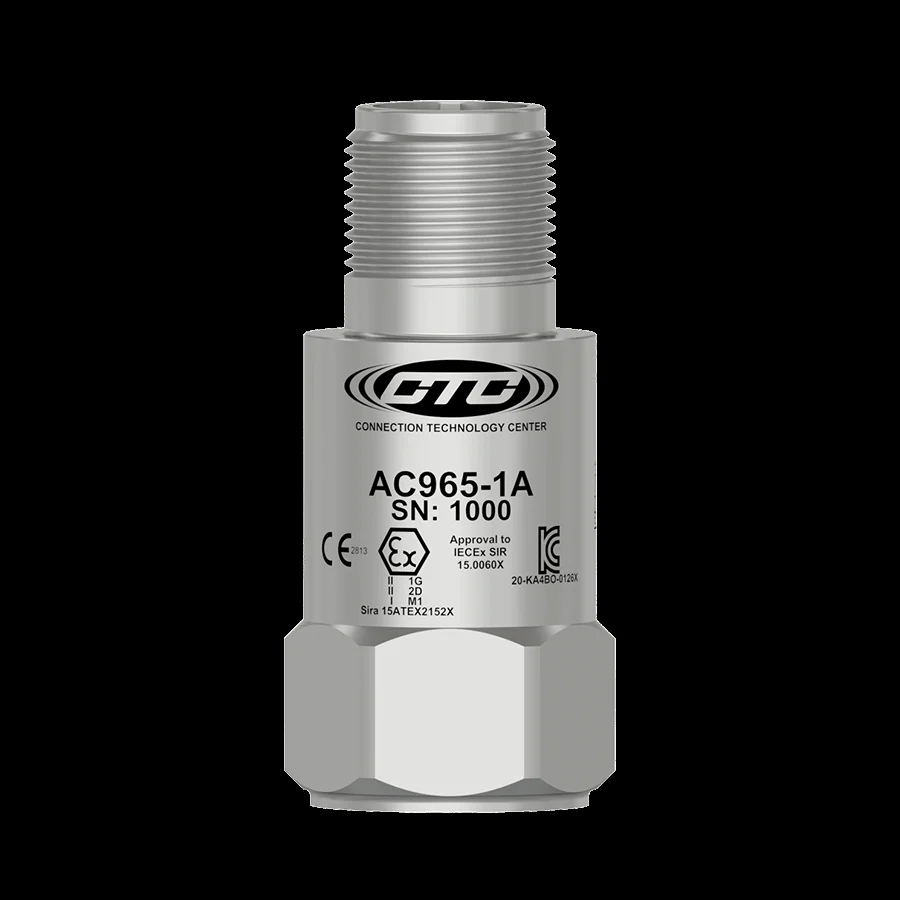

| AC965 | Nonincendive, Intrinsically Safe, KC Zone 0,1,2 and ATEX / IECEx 0,1,2,21,22 Approved Accelerometer, Top Exit 2 Pin Connector, 100 mV/g, ±10% | 100 mV/g | CE | — | 30-900,000 CPM (0,5-15000 Hz) |
| AC966 | Nonincendive, Intrinsically Safe, IECEx/ATEX and KC Zone 0,1,2,21,22 Approved Accelerometer, Side Exit 2 Pin Connector, 100 mV/g, ±10% | 100 mV/g | CE | — | 30-516,000 CPM (0,5-8600 Hz) |
| AC968 | Nonincedive, Intrinsically Safe, CSA North America Class I Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1,2,21,22 Approved Accelerometer, Side Exit 2 Pin Connector, M8x1.25 Captive Bolt, 100 mV/g, ±10% | 100 mV/g | CE | — | 30-480,000 CPM (0,5-8000 Hz) |
| AC968-M12A | Nonincedive, Intrinsically Safe, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1,2,21,22 Approved Accelerometer, Side Exit 4 Pin M12 Connector, M8x1.25 Captive Bolt, 100 mV/g, ±10% | 100 mV/g | CE | — | 30-480,000 CPM (0,5-8000 Hz) |
| AC970 | Nonincendive Miniature Industrial, Intrinsically Safe, CSA North America Class I Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1,2,21,22 Approved Accelerometer, Top Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±10% | 100 mV/g | CE | — | 36-1,200,000 CPM (0,6-20000 Hz) |
| AC971 | Premium Nonincendive Miniature Industrial, Intrinsically Safe, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1 Approved Accelerometer, Top Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±5% | — | CE | 100 mV/g | 36-1,200,000 CPM (0,6-20000 Hz) |
| AC972 | Nonincendive Intrinsically Safe, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1 Approved Triaxial Accelerometer, Follows Cartesian Phase Coordinate System for Modal/ODS Analysis, Side Exit 4 Pin Mini-MIL Connector, 10 mV/g, ±10% | 10 mV/g | CE | — | 60-600,000 CPM (1,0-10000 Hz) |
| AC974 | Nonincendive Miniature Industrial, Intrinsically Safe, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1 Approved Accelerometer, Side Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±10% | 100 mV/g | CE | — | 36-600,000 CPM (0,6-10000 Hz) |
| AC979 | Nonincendive Intrinsically Safe, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1 Approved Biaxial Accelerometer, Side Exit 3 Pin Connector, with X and Z Axis, 100 mV/g, ±10% | 100 mV/g | CE | — | 60-390,000 CPM (1,0-6500 Hz) |
| AC980 | Nonincendive Intrinsically Safe, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1 Approved Triaxial Accelerometer, Side Exit 4 Pin Mini-MIL Connector, 100 mV/g, ±10% | 100 mV/g | CE | — | 36-600,000 CPM (0,6-10000 Hz) |
| AC982 | Nonincedive Intrinsically Safe, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1 Approved Triaxial Accelerometer, Follows Cartesian Phase Coordinate System for Modal/ODS Analysis, Side Exit 4 Pin Mini-MIL Connector, 100 mV/g, ±10% | 100 mV/g | CE | — | 30-600,000 CPM (0,6-10000 Hz) |
| TA911 | Nonincendive, Intrinsically Safe, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1 Approved Dual Output Accelerometer, Acceleration and Temperature, Top Exit 3 Pin Connector, 10 mV/g, 10 mV/°C, ±10% | 10 mV/g | CE | — | 72-900,000 CPM (1,2-15000 Hz) |
| TA915 | Nonincendive, Intrinsically Safe, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1 Approved Dual Output Accelerometer, Acceleration and Temperature, Top Exit 3 Pin Connector, 100 mV/g, 10 mV/°C, ±10% | 100 mV/g | CE | — | 30-900,000 CPM (0,5-15000 Hz) |
| TA916 | Nonincendive, Intrinsically Safe, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1 Approved Dual Output Accelerometer, Acceleration and Temperature, Side Exit 3 Pin Connector, 100 mV/g, 10 mV/°C, ±10% | 100 mV/g | — | — | 30-516,000 CPM (0,5-8600 Hz) |
| TA918 | Nonincendive, Intrinsically Safe, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1 Approved Dual Output Accelerometer, Acceleration and Temperature, Side Exit 3 Pin Connector, M8x1.25 Captive Bolt, 100 mV/g, 10 mV/°C, ±10% | 100 mV/g | — | — | 30-516,000 CPM (0,5-8600 Hz) |
| VE901 | Nonincendive Intrinsically Safe Velocity Sensor, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1 Approved Piezo Velocity Sensor, Top Exit 2 Pin Connector, 100 mV/in/sec, ±10% | 100 mV/in/sec | CE | — | 90-720,000 CPM (1,5-12000 Hz) |
| VE902 | Nonincendive Intrinsically Safe Velocity Sensor, CSA North America Class 1 Div 1, Class II Div 1, Class III and IECEx/ATEX Zone 0,1 Approved Piezo Velocity Sensor, Side Exit 2 Pin Connector, 100 mV/in/sec, ±10% | 100 mV/in/sec | CE | — | 90-420,000 CPM (1,5-7000 Hz) |
Models covered
These rugged vibration sensors are certified under the IECEx (International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres) directive, ensuring they meet international safety standards for hazardous areas. CTC offers a comprehensive selection of IECEx Zone 0,1 approved accelerometers including standard size, miniature size, biaxial, triaxial, dual output, and 4-20 mA loop power sensors to suit a wide variety of condition monitoring applications.
CTC also lists these same part numbers as ATEX Zone 0,1 Approved Sensors — one product range, catalogued more than once. The approvals and options are set out in the model table below.
Choosing a part number
This family covers 24 part numbers. They share the specification in the Specs tab and differ in the details set out in the model table — most often the connector, the exit direction and the mounting thread. Tell us the machine and the measurement and we will confirm the part number.
CTC lists AC915, AC965 as a best seller in this family.
Supply and support
Supplied and supported in India by TIERA, authorised distributor for CTC (Connection Technology Center, USA). Each unit ships with CTC’s own calibration certificate. Pricing and lead time on request.
