ATEX Zone 2 Approved Sensors
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
CTC’s ATEX Zone 2 hazardous-rated accelerometers are engineered for industrial settings with intermittent exposure to hazardous gases and are certified under the ATEX directive for European and international markets.
CTC’s ATEX Zone 2 hazardous-rated accelerometers are engineered for industrial settings with intermittent exposure to hazardous gases and are certified under the ATEX directive for European and… Read more
international markets.Specifications
| Transverse Sensitivity | ≤5% |
|---|---|
| Constant Current Excitation | 2-10 mA |
| Output Impedance | <100 ohm |
| Bias Output Voltage | 10-14 VDC |
| Case Isolation | >10 8 ohm |
| Sensing Element | PZT Ceramic |
| Sensing Structure | Shear Mode |
| Case Material | 316L Stainless Steel |
| Calibration Certificate | CA10 |
Models in the ATEX Zone 2 Approved Sensors family
| Part number | Description | Sensitivity (±10%) | Electromagnetic Sensitivity | Frequency Response (±3dB) | Frequency Response (±10%) |
|---|---|---|---|---|---|
| AC931 | Nonincendive, CSA North America Class I, Division 2, Class II, Division 1, Class III, ATEX/IECEx Zone 2, 22 Approved Accelerometer, Top Exit 2 Pin Connector, 10 mV/g, ±10% | 10 mV/g | CE | 60-900,000 CPM (1,0-15000 Hz) | — |

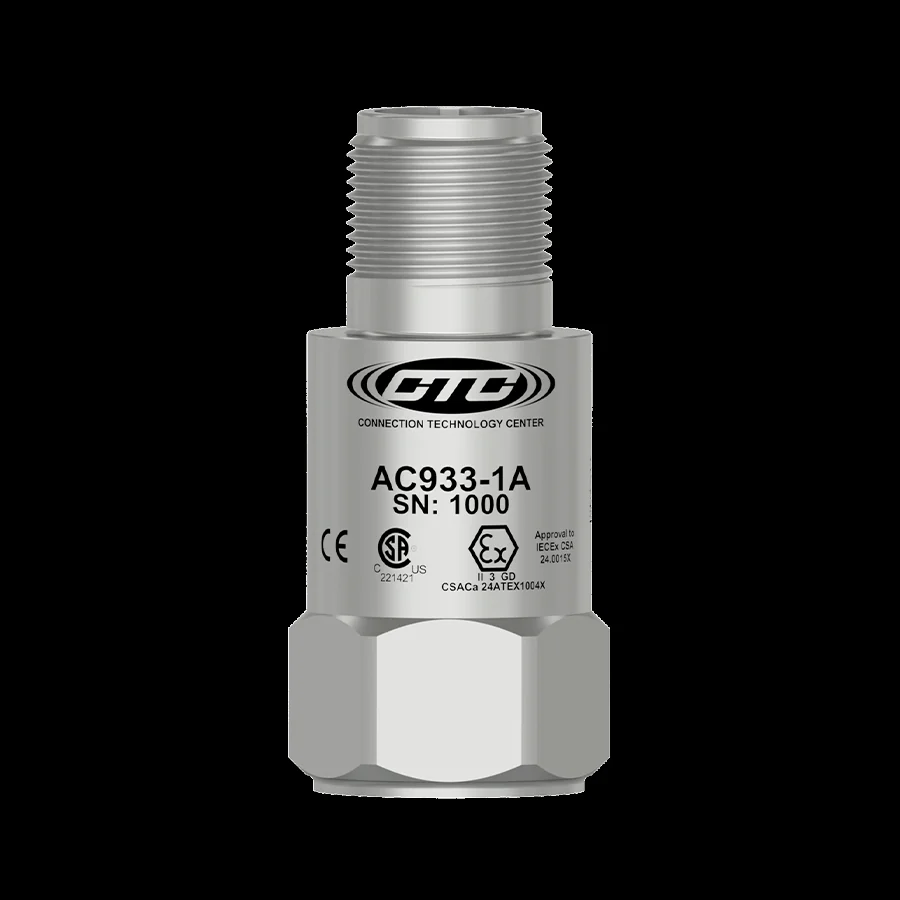

| AC933 | Nonincendive, CSA North America Class I, Division 2, Class II, Division 1, Class III, ATEX/IECEx Zone 2,22 Approved Accelerometer, Top Exit 2 Pin Connector, 50 mV/g, ±10% | 50 mV/g | CE | 48-900,000 CPM (0,8-15000 Hz) | 90-390,000 CPM (1,5-6500 Hz) |

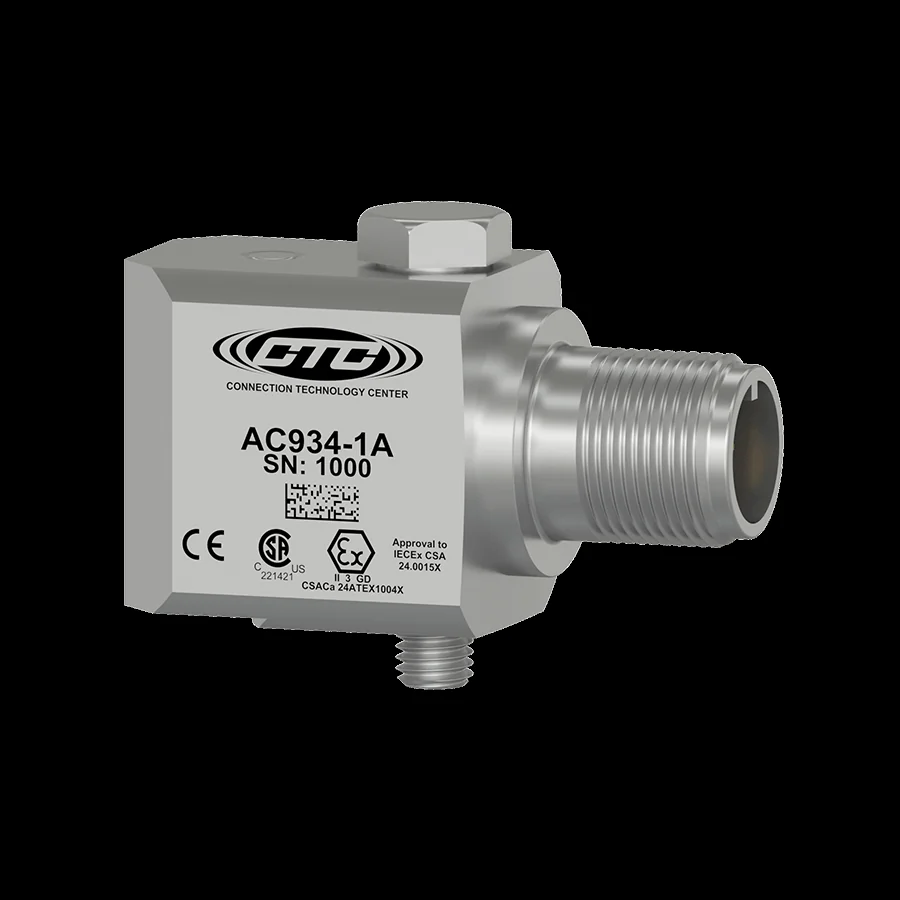

| AC934 | Nonincendive, CSA North America Class I, Division 2, Class II, Division 1, Class III, ATEX/IECEx Zone 2,22 Approved Accelerometer, Side Exit 2 Pin Connector, 50 mV/g, ±10% | 50 mV/g | CE | 48-516,000 CPM (0,8-8600 Hz) | 90-300,000 CPM (1,5-5000 Hz) |

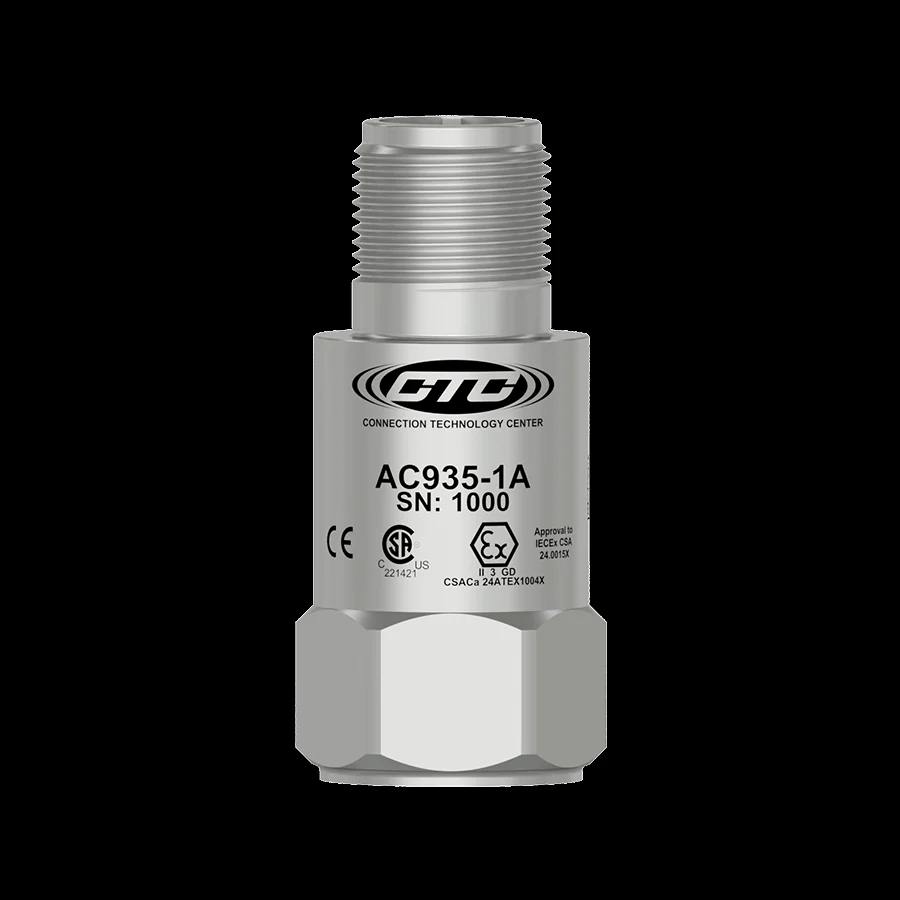

| AC935 | Nonincendive, CSA North America Class I, Division 2, Class II, Division 1, Class III, ATEX/IECEx Zone 2, 22 Approved Accelerometer, Top Exit 2 Pin Connector, 100 mV/g, ±10% | 100 mV/g | CE | 30-900,000 CPM (0,5-15000 Hz) | — |

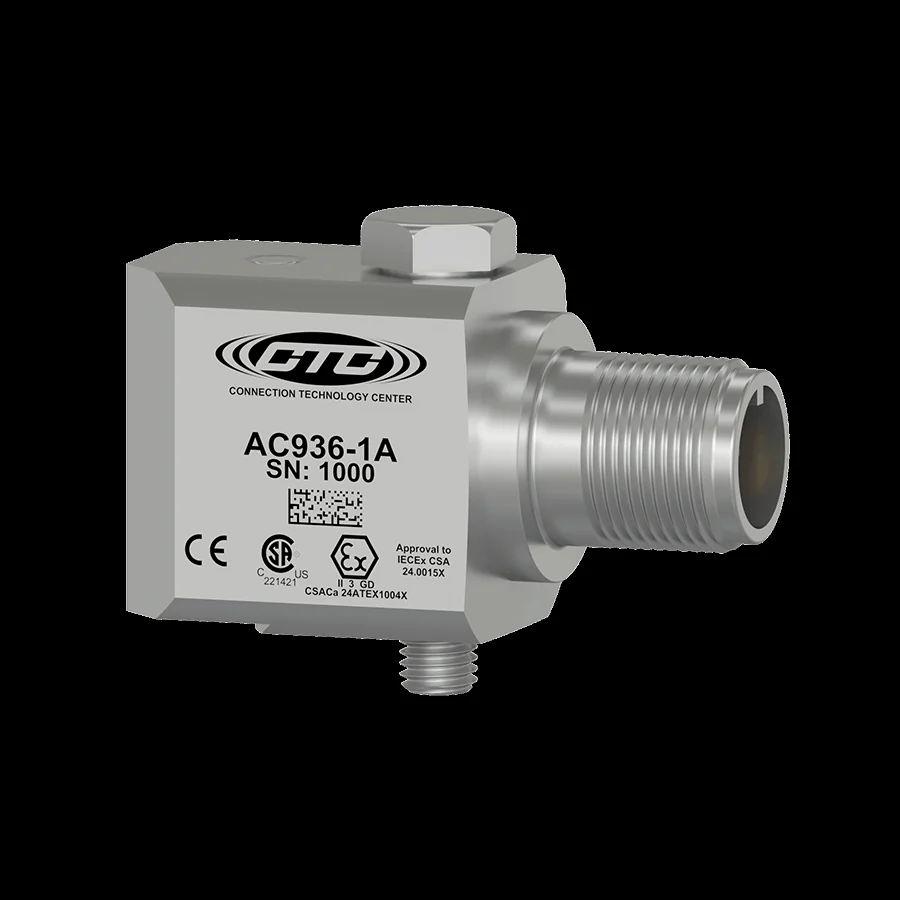

| AC936 | Nonincendive, CSA North America Class I, Division 2, Class II, Division 1, Class III, ATEX/IECEx Zone 2, 22 Approved Accelerometer, Side Exit 2 Pin Connector, 100 mV/g, ±10% | 100 mV/g | CE | 30-516,000 CPM (0,5-8600 Hz) | — |

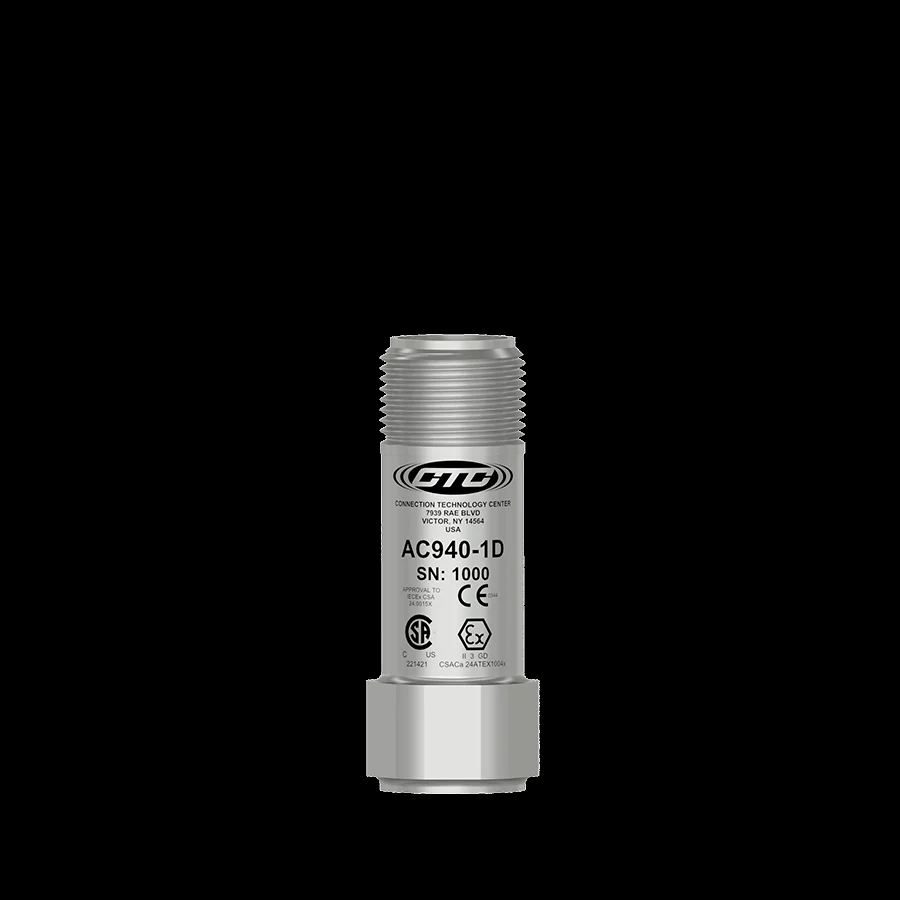

| AC940 | Nonincendive, Miniature Industrial, CSA North America Class I, Division 2, Class II, Division 1, Class III, ATEX/IECEx Zone 2, 22 Approved Accelerometer, Top Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±10% | 100 mV/g | CE | 36-900,000 CPM (0,6-15000 Hz) | 60-420,000 CPM (1,0-7000 Hz) |

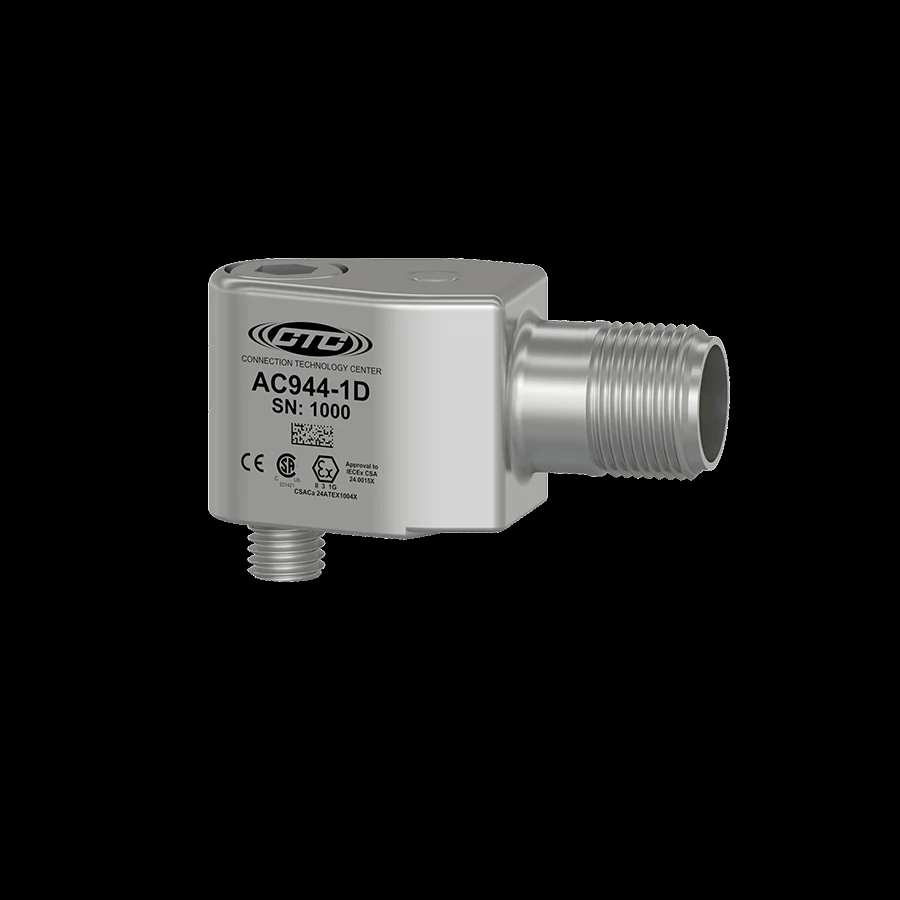

| AC944 | Nonincendive, Miniature Industrial Class I, Division 2, Class II, Division 1, Class III, ATEX/IECEx Zone 2, 22 Approved Accelerometer, Side Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±10% | 100 mV/g | CE | 36-600,000 CPM (0,6-10000 Hz) | — |

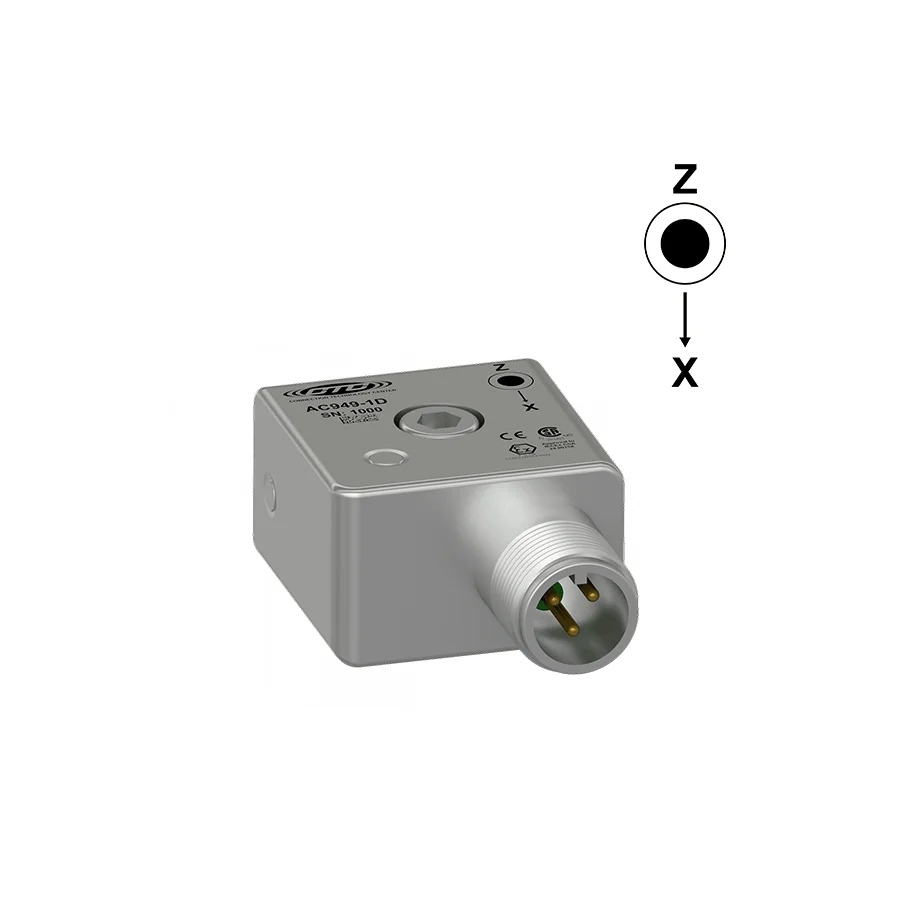

| AC949 | Nonincendive, CSA North America Class I, Division 2, Class II, Division 1, Class III, ATEX/IECEx Zone 2, 22 Approved Biaxial Accelerometer, Side Exit 3 Pin Connector, with X and Z Axis, 100 mV/g, ±10% | 100 mV/g | — | 60-390,000 CPM (1,0-6500 Hz) | — |
| AC950 | Nonincendive, CSA North America Class I, Div 2, Class II, Div 1, Class III and ATEX/IECEx Zone 2,22 Approved Triaxial Accelerometer, Side Exit 4 Pin Mini-MIL Connector, 100 mV/g, ±10% | 100 mV/g | CE | 36-600,000 CPM (0,6-10000 Hz) | 60-390,000 CPM (1,0-6500 Hz) |
| TA931 | Nonincendive, CSA North America Class I, Division 2, Class II, Division 1, Class III, ATEX/IECEx Zone 2, 22 Approved Dual Output Sensor, Acceleration and Temperature, Top Exit 3 Pin Connector, 10 mV/g, 10 mV°C, ±10% | 10 mV/g | CE | 72-900,000 CPM (1,2-15000 Hz) | — |
| TA935 | Nonincendive, CSA North America Class I, Division 2, Class II, Division 1, Class III and ATEX/IECEx Zone 2,22 Approved Dual Output Sensor, Acceleration and Temperature, Top Exit 3 Pin Connector, 100 mV/g, 10 mV/°C, ±10% | 100 mV/g | CE | 30-900,000 CPM (0,5-15000 Hz) | — |
| TA936 | Nonincendive, CSA North America Class I, Division 2, Class II, Division 1, Class III, ATEX/IECEx Zone 2, 22 Approved Dual Output Sensor, Acceleration and Temperature, Side Exit 3 Pin Connector, 100 mV/g, 10 mV°C, ±10% | 100 mV/g | CE | 30-516,000 CPM (0,5-8600 Hz) | — |
| TA938 | Nonincendive, CSA North America Class I, Division 2, Class II, Division 1, Class III, ATEX/IECEx Zone 2, 22 Approved Dual Output Sensor, Acceleration and Temperature, Side Exit 3 Pin Connector, M8x1.25 Captive Bolt, 100 mV/g, 10 mV°C, ±10% | 100 mV/g | — | 30-600,000 CPM (0,5-10000 Hz) | 120-300,000 CPM (2,0-5000 Hz) |
| VE801 | Nonincendive, CSA North America Class I, Division 2, Class II, Division 1, Class III, ATEX/IECEx Zone 2, 22 Approved Piezo Velocity Sensor, Top Exit 2 Pin Connector, 100 mV/in/sec, ±10% | 100 mV/in/sec | CE | 90-720,000 CPM (1,5-12000 Hz) | 120-270,000 CPM (2,0-4500 Hz) |
| VE802 | Nonincendive, CSA North America Class I, Division 2, Class II, Division 1, Class III, ATEX/IECEx Zone 2, 22 Approved Piezo Velocity Sensor, Side Exit 2 Pin Connector, 100 mV/in/sec, ±10% | 100 mV/in/sec | CE | 90-720,000 CPM (1,5-12000 Hz) | 120-270,000 CPM (2,0-4500 Hz) |
Models covered
These sensors feature a nonincendive design, ensuring they do not become ignition sources during normal operation. With their durable, hermetically sealed construction, they provide reliable performance in harsh industrial environments. ATEX Zone 2 approved accelerometers are available in a variety of styles, including standard size top and side exit connector options, as well as 4-20 mA loop power sensors, to accommodate a variety of condition monitoring applications.
CTC also lists these same part numbers as CSA Class I Div 2, Class Ii Div 1, Class Iii Approved Sensors, IECEx Zone 2 Approved Sensors, CSA Class I Div 2, Class Ii Div 1, Class Iii Approved Sensors — one product range, catalogued more than once. The approvals and options are set out in the model table below.
Choosing a part number
This family covers 15 part numbers. They share the specification in the Specs tab and differ in the details set out in the model table — most often the connector, the exit direction and the mounting thread. Tell us the machine and the measurement and we will confirm the part number.
CTC lists AC935 as a best seller in this family.
Supply and support
Supplied and supported in India by TIERA, authorised distributor for CTC (Connection Technology Center, USA). Each unit ships with CTC’s own calibration certificate. Pricing and lead time on request.
