11 mm Hazardous-area Approved Proximity Probe Sets
Indicative price, ex-works. Excludes GST, packing & forwarding, freight, insurance and duties. Request a quotation to confirm.
CTC proudly offers 11 mm proximity probe systems, also known as eddy current probe systems, with optional hazardous area certifications, including Class 1 Division 1/Zone 1 and Class 1, Division 2.
CTC proudly offers 11 mm proximity probe systems, also known as eddy current probe systems, with optional hazardous area certifications, including Class 1 Division 1/Zone 1 and Class 1, Division 2.
Models in the 11 mm Hazardous-area Approved Proximity Probe Sets family
| Part number | Description | Sensitivity | Connector | Connector Pull Strength | Probe Connector | Availability |
|---|---|---|---|---|---|---|
| Hazardous-Area Approved DP1007 | Intrinsically Safe 11 mm PRO Proximity Probes | -100 mV/mil (-3.94 V/mm) (1 mil = 0.001 in.) | SecureLock | Up to 30 lbs. | — | Built to order |

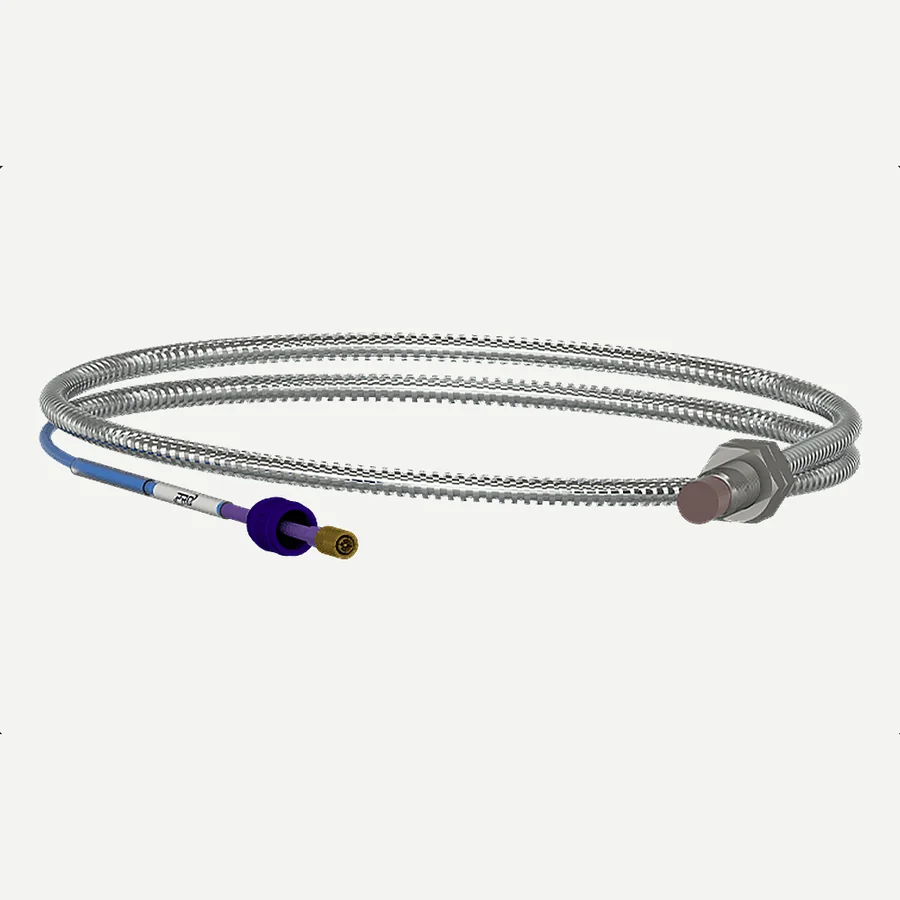

| Hazardous-Area Approved DP1007 with Armor | Armored Intrinsically Safe 11 mm PRO Proximity Probes | -100 mV/mil (-3.94 V/mm) (1 mil = 0.001 in.) | SecureLock | Up to 30 lbs. | — | Built to order |

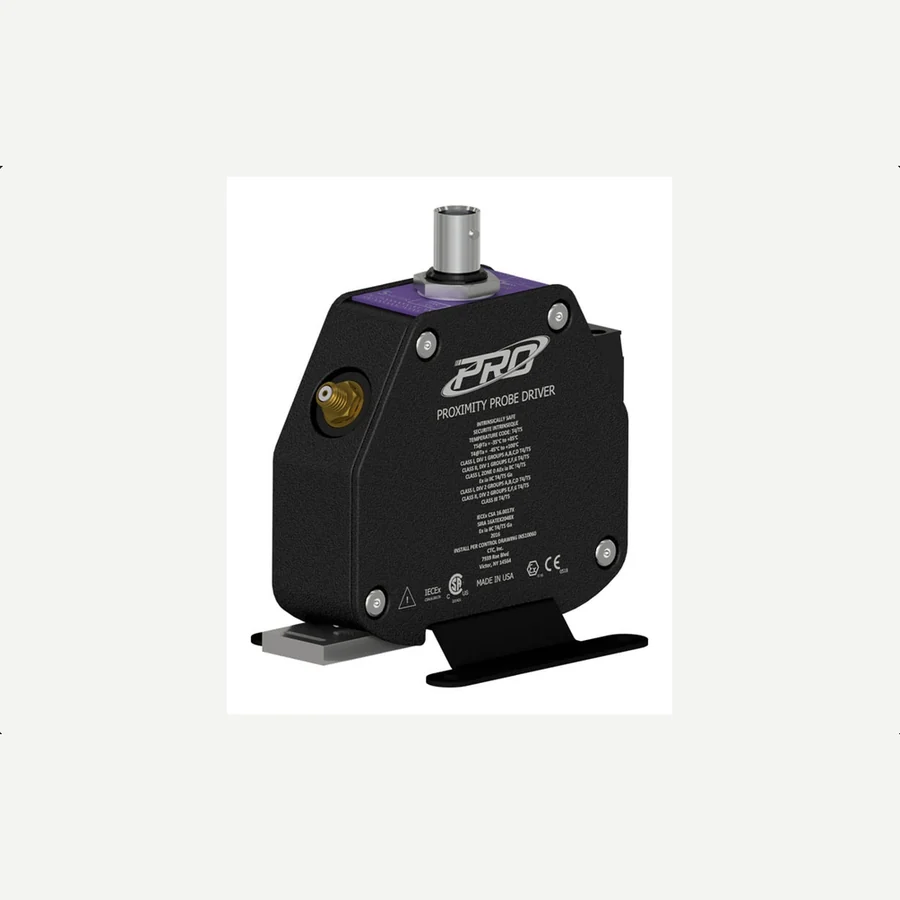

| Hazardous-Area Approved DD100770 | Intrinsically Safe Eddy Current Driver Compatible with 11 mm Proximity Probe Systems, 4-20 mA Output | — | — | — | SecureLock | — |
| Hazardous-Area Approved DD100780 | Intrinsically Safe Eddy Current Driver Compatible with 11 mm Proximity Probe Systems, Voltage Output | — | — | — | SecureLock | — |

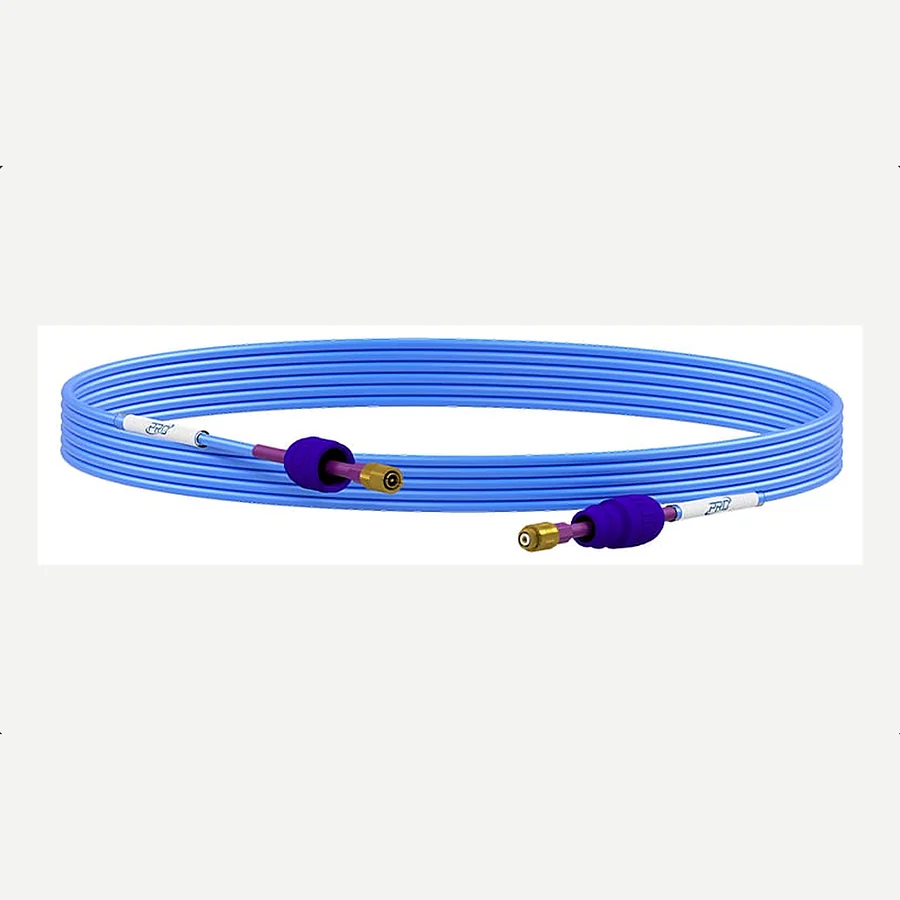

| Hazardous-Area Approved DC100730 | Intrinsically Safe Proximity Probe Extension Cable for 11 mm PRO Proximity Probes, with FEP Jacket | — | SecureLock | Up to 30 lbs. | — | Built to order |

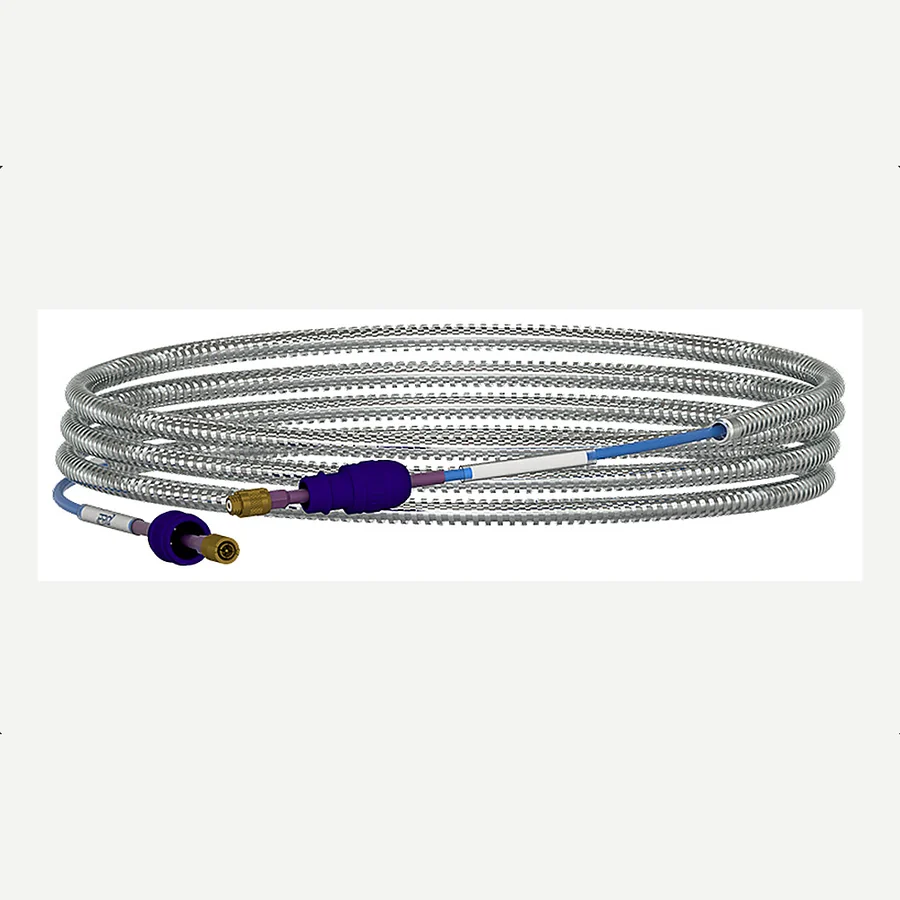

| Hazardous-Area Approved DC100730 with Armor | Intrinsically Safe Proximity Probe Extension Cable for 11 mm PRO Proximity Probes, with Armored Jacket | — | SecureLock | Up to 30 lbs. | — | Built to order |
Models covered
Designed for operation in hazardous zones, these PRO Line proximity probes, extension cables, and drivers deliver precise measurement of shaft displacement in machinery with fluid film bearings. Fully compliant with API 670 Standards, these probes effectively monitor displacement gaps ranging from 20 to 180 mils and are available in system lengths of 1 meter, 5 meters, and 9 meters. Ideal for applications in the power, oil, and gas industries, CTC’s hazardous-area-approved 11 mm PRO Line proximity probe systems provide unmatched durability and reliability. These systems seamlessly integrate with all standard condition monitoring software, including Alta Solutions, Bently Nevada, TWave, and more, ensuring comprehensive machinery protection. NEW - Custom Calibration Materials Looking for a unique custom calibration material? We can create a custom target for you. Requirements: » $2,500 NRE fee (discount exempt) » Customer must supply the material for CTC to machine (CTC will provide required dimensions once the project is initiated) » Initial order requirement of 10 proximity probe drivers calibrated to that target, with no MOQ on subsequent orders Contact [email protected] to get started with your custom calibration material. Please note - Class 1 Division 1/Zone 1 systems require the use of an intrinsically safe barrier, such as IS151-1B.
CTC also lists these same part numbers as 11 mm Hazardous-area Approved Proximity Probe Sets — one product range, catalogued more than once. The approvals and options are set out in the model table below.
Features
- Upgraded to include SecureLock connector
Choosing a part number
This family covers 6 part numbers. They share the specification in the Specs tab and differ in the details set out in the model table — most often the connector, the exit direction and the mounting thread. Tell us the machine and the measurement and we will confirm the part number.
Where CTC publishes a stock tag for a part number it is shown in the Availability column — Stock or Built to order. Built to order is normal for a configured sensor and is not a shortage; it sets lead time, which we confirm with the quotation.
Supply and support
Supplied and supported in India by TIERA, authorised distributor for CTC (Connection Technology Center, USA). Each unit ships with CTC’s own calibration certificate. Pricing and lead time on request.
